987071 - Gravely Lawn Tractor, 13.5hp Robin Subaru, With Hydraulic Lift (SN: 000101 & Above) Manual Lift Parts Diagram

Lawn Tractor, 13.5hp Robin Subaru, With Hydraulic Lift

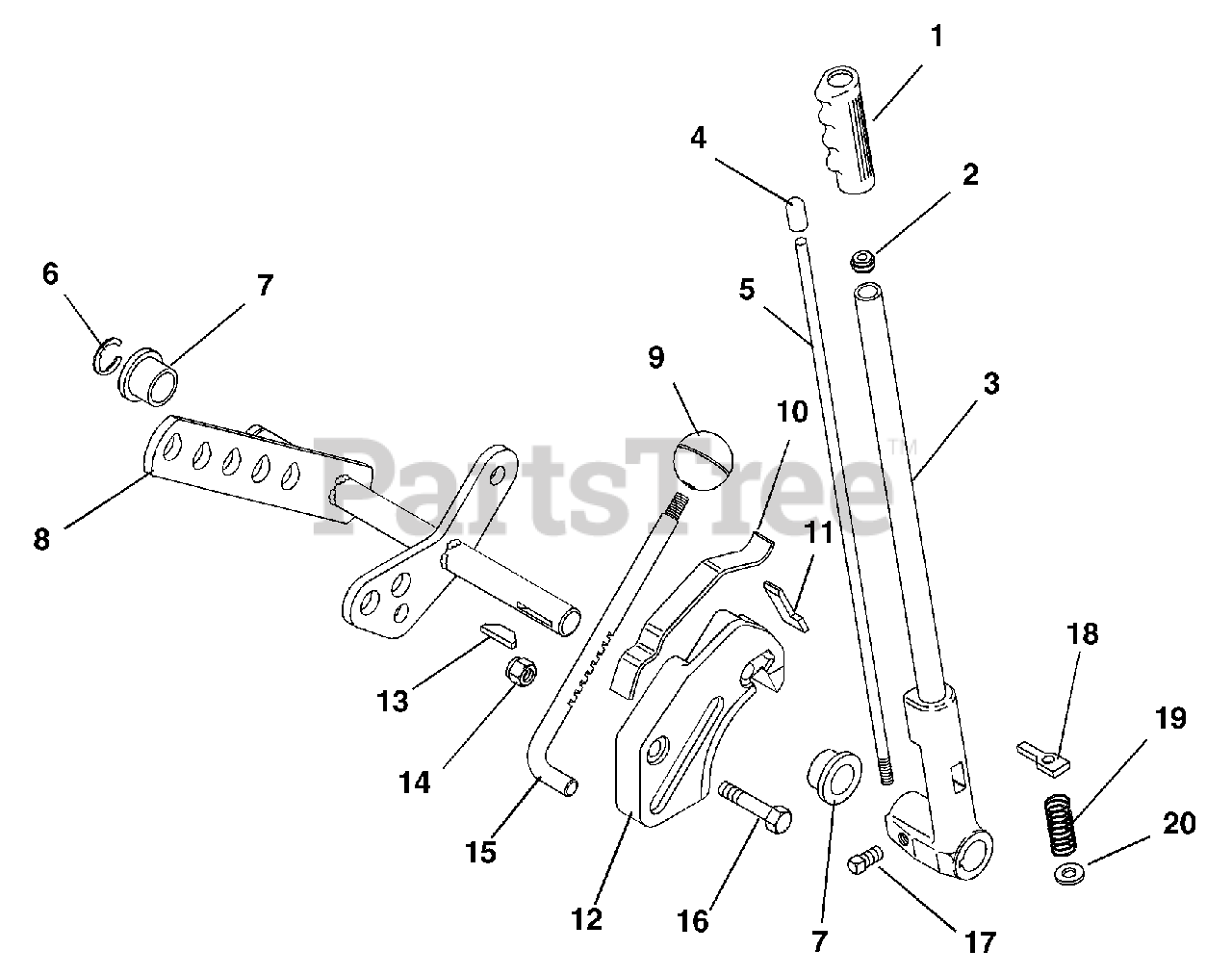

Manual Lift Parts Diagram

  • Title

1

Gravely 07518700

Handle Grip
(Superseded to 07500239)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 011117

Guide, Push Rod
(Superseded to 07517900)

$

$

Not available

3

Gravely 011113

Assembly, Lever Lift
(Superseded to 08861200)

$

$

Not available

4

Gravely 019367

Tip, Push Rod
(Superseded to 07520700)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 011118

Rod, Lever Push
(Superseded to 08657800)

$

$

Not available

6

Gravely 011112

Ring-Retaining-External .84 x .056
(Superseded to 05716000)

$3.99

$

In Stock, only 4 left!

0

7

Gravely 018355

Bushing-Flange 1.02 x 1.39 x .75 x 1.75 Nylon
(Superseded to 05520100)

$10.99

$

In Stock, Qty 20+

0

8

Gravely 018404

Shaft, Lift Lever Weldment
(Superseded to 08707200)

$

$

Not available

9

Gravely 010670

Knob-Control .44-20 x .50
(Superseded to 07537600)

$13.99

$

In Stock, only 1 left!

0

10

Gravely 011105

Spring, Stop
(Superseded to 08584300)

$58.99

$

Usually ships in 4-12 days

0

11

Gravely 011106

Stop, Lever
(Superseded to 08860900)

$

$

Not available

12

Gravely 011103

Casting, Locator
(Superseded to 08860800)

$

$

Not available

13

Gravely 187184

Key-Woodruff .25 x 1.38 x .41 SAE 127
(Superseded to 06609000)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 018732

Rod, Lever Stop
(Superseded to 08653600)

$

$

Not available

16

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, only 4 left!

0

17

Gravely 102593

Screw-Set .38-16 x .50
(Superseded to 06004900)

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 011116

Pawl, Lever
(Superseded to 08861400)

$47.99

$

Usually ships in 4-12 days

0

19

Gravely 010682

Spring-Compression .07 x .72 x 2.00
(Superseded to 08352800)

$20.99

$

Usually ships in 4-12 days

0

20

Gravely 06435900

Washer-Flat-Steel .44 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0
