987072 - Gravely Lawn Tractor, 20.5hp Robin Subaru, With Hydraulic Lift (SN: 000101 & Above) Engine, Fuel And Exhaust System - Robin - 20.5 HP Parts Diagram

Lawn Tractor, 20.5hp Robin Subaru, With Hydraulic Lift

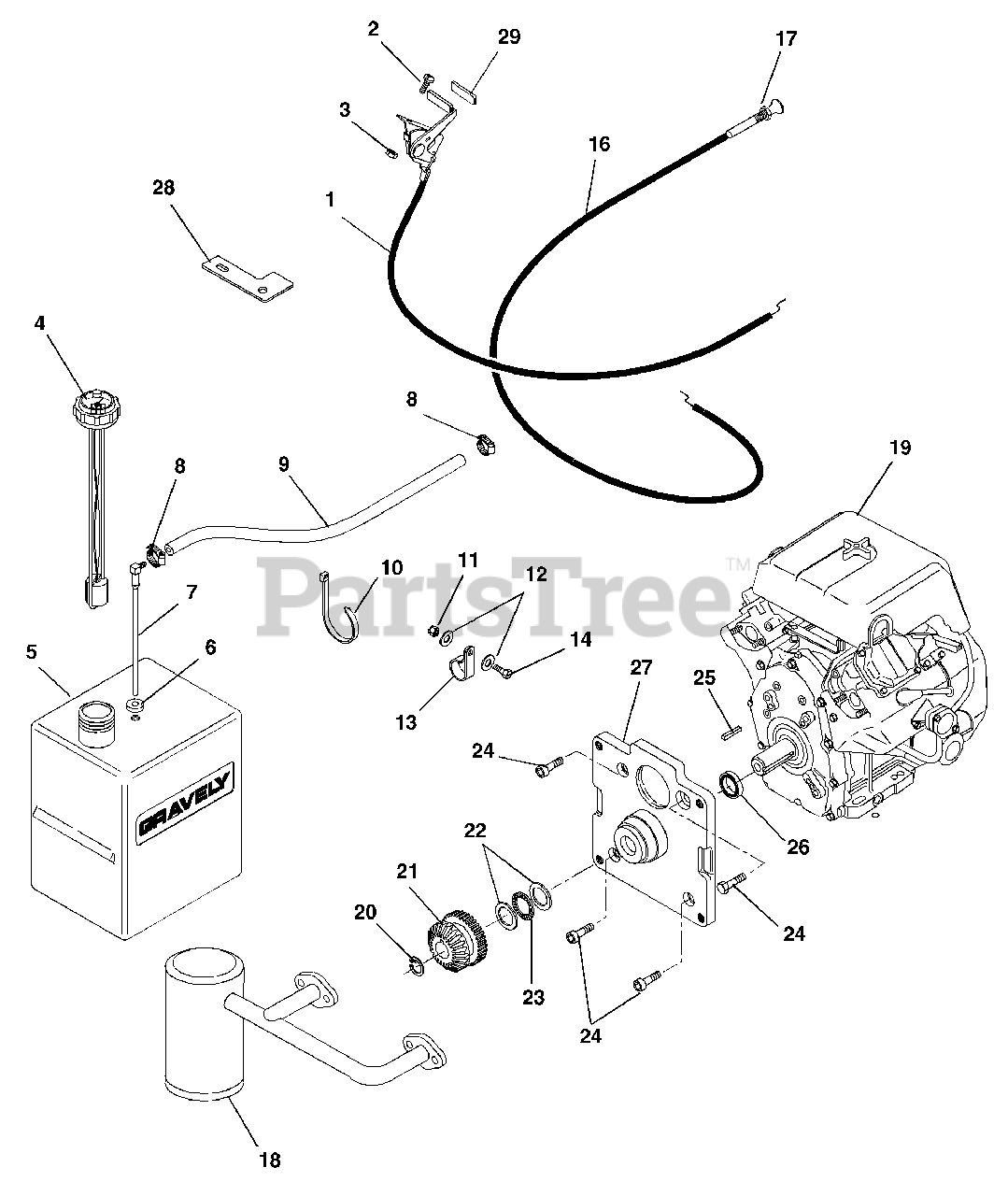

Engine, Fuel And Exhaust System - Robin - 20.5 HP Parts Diagram

  • Title

1

Gravely 06941600

CABLE, THROTTLE CONTROL

$

$

Not available

2

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 047615

GAUGE,FUEL
(Superseded to 08983200)

$

$

Not available

5

Gravely 047612

TANK,FUEL
(Superseded to 08983000)

$

$

Not available

6

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 047614

FTG,TANK
(Superseded to 08983100)

$35.99

$

Usually ships in 4-12 days

0

8

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

9

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

11

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 03334000

CABLE CLAMP

$

$

Not available

14

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 040448

BRKT,THROTTLE & CHOKE
(Superseded to 08748100)

$

$

Not available

16

Gravely 06941500

CABLE, CHOKE CONTROL

$

$

Not available

17

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 04901500

MUFFLER

$

$

Not available

19

Gravely 08256000

ENGINE, ROBIN EH650DB7510

$

$

Not available

20

Gravely 018344

RG-RTNG-INT 1.249X.050
(Superseded to 05712600)

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 051321

GR,SPUR & BEVEL (INPUT)
(Superseded to 08790200)

Note: (Input)

$329.99

$

Usually ships in 4-12 days

0

22

Gravely 040758

WSHR-THRST 1.125X1.750X.1245
(Superseded to 06434200)

$21.99

$

Usually ships in 4-12 days

0

23

Gravely 018341

BRG-N-THRST 1.74X1.127X.078
(Superseded to 05421000)

$10.99

$

Usually ships in 4-12 days

0

24

Gravely 05933000

SCR-SKH .44-14X1.00

$

$

Not available

25

Gravely 018345

KEY-SQ .248X1.25X.248
(Superseded to 06606900)

$2.99

$

In Stock, only 2 left!

0

26

Gravely 05613000

SEAL 1.987X1.375X.313

$17.99

$

In Stock, Qty 13

0

27

Gravely 08799900

ADAPTER, ENGINE

$216.99

$

Usually ships in 4-12 days

0

28

Gravely 04902600

STOP, THROTTLE CABLE

$

$

Not available

29

Gravely 07521500

GRIP

$

$

Not available
