987072 - Gravely Lawn Tractor, 20.5hp Robin Subaru, With Hydraulic Lift (SN: 000101 & Above) Frame Parts Diagram

Lawn Tractor, 20.5hp Robin Subaru, With Hydraulic Lift

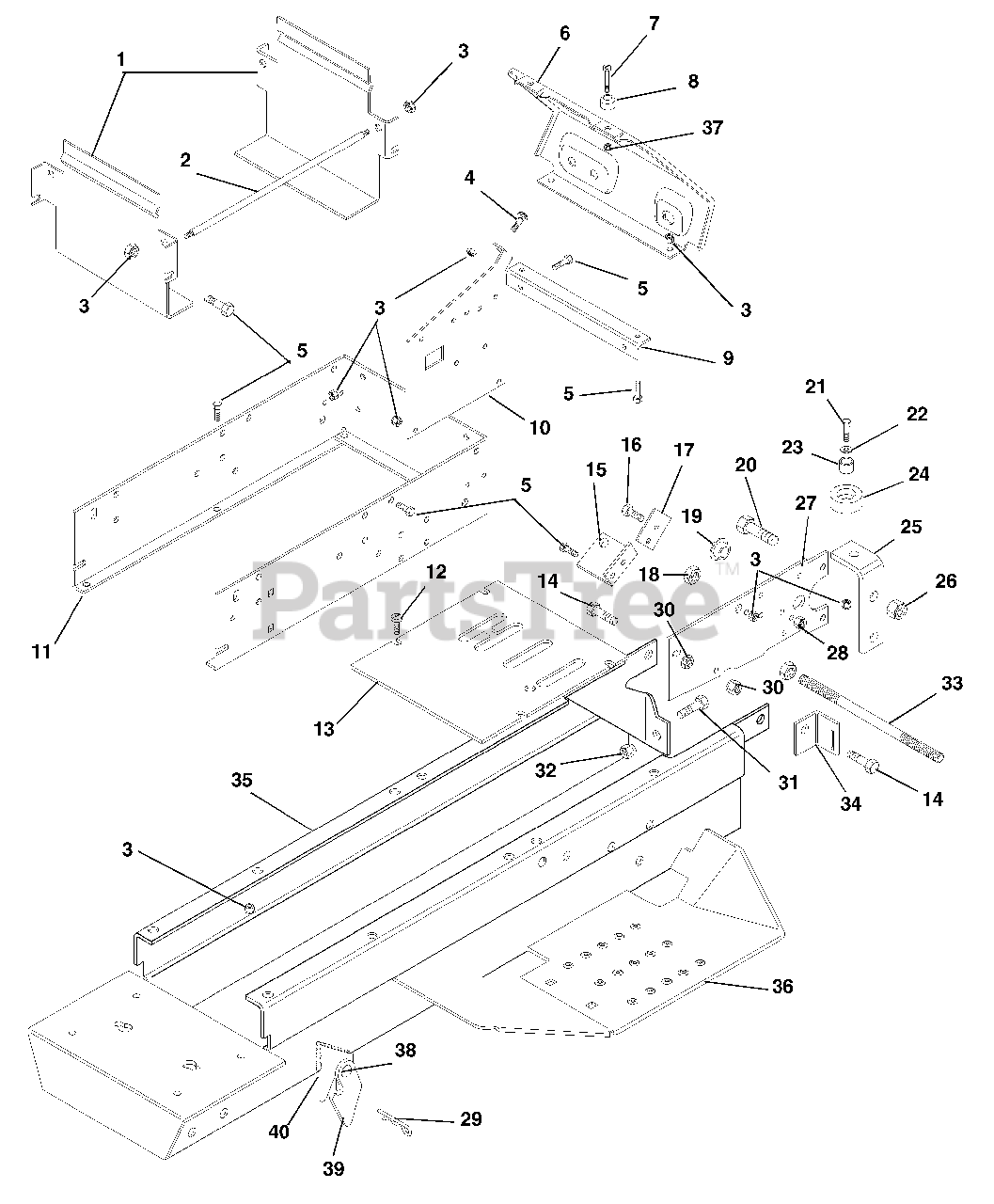

Frame Parts Diagram

  • Title

1

Gravely 087815

TANK SUPPORT
(Superseded to 08781500)

$51.99

$

Usually ships in 4-12 days

0

2

Gravely 090378

ROD, TANK
(Superseded to 09037800)

$30.99

$

Usually ships in 4-12 days

0

3

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$1.49

$

In Stock, only 3 left!

0

5

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

6

Gravely 08759401

INSTRUMENT PANEL

$11.99

$

Usually ships in 4-12 days

0

Gravely 077255

DECAL, G SERIES INST PANEL
(Superseded to 07725500)

$

$

Not available

7

Gravely 06117900

SCR-MCH 6-32X.75 HWH YWZC

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 018183

BUMPER
(Superseded to 07017400)

$

$

Not available

9

Gravely 040548

BRKT,INSTRUMENT PANEL
(Superseded to 08749300)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 040449

BR,INSTRUMENT PANEL L.H.
(Superseded to 08748200)

$

$

Not available

Gravely 040450

BR,INSTRUMENT PANEL R.H.
(Superseded to 08748300)

$

$

Not available

11

Gravely 041240

SPRT,INSTRUMENT
(Superseded to 08754000)

$

$

Not available

12

Gravely 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 039875

PLT,CONTROL COVER
(Superseded to 08746000)

$

$

Not available

Gravely 077254

DECAL, G-SERIES COVER PLATE
(Superseded to 07725400)

Note: (Model 071)

$

$

Not available

Gravely 077253

DECAL, G-SERIES COVER PLATE
(Superseded to 07725300)

Note: (Models 070, 072)

$

$

Not available

14

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 046305

BRKT,INTERLOCK SWITCH
(Superseded to 08778400)

$

$

Not available

16

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 040822

BRKT,BUSHING LOCK
(Superseded to 08752000)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 06537300

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

20

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

21

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

22

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 034723

BSHG-SLV .265X.375X.250 ST
(Superseded to 08708300)

$13.99

$

Usually ships in 4-12 days

0

24

Gravely 024357

BMPR,SEAT
(Superseded to 07521800)

$

$

Not available

25

Gravely 045594

BRKT,REAR HITCH
(Superseded to 08768900)

$

$

Not available

26

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

27

Gravely 052662

PLT,FWD-REV MTG.
(Superseded to 08793253)

$9.49

$

Usually ships in 4-12 days

0

28

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 06714000

PIN-HAIR-INT .15X2.937 YWZC

$3.49

$

In Stock, only 1 left!

0

30

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 05968600

BLT-HEX .50-20X1.50 YWZC

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 040207

ROD,FRAME EXT BRACE
(Superseded to 08655000)

$

$

Not available

34

Gravely 046306

BRKT,FENDER HOLD-UP
(Superseded to 08778500)

$11.99

$

Usually ships in 4-12 days

0

35

Gravely 045235

WLDMT,FRAME
(Superseded to 08766000)

$

$

Not available

36

Gravely 021087

WLDMT,MOWER BRACKET R.H.
(Superseded to 08722200)

$

$

Not available

Gravely 021088

WLDMT,MOWER BRACKET L.H.
(Superseded to 08722300)

$

$

Not available

37

Gravely 06538900

NUT-LK-NYL 6-32 W/INSRT YWZC

$1.49

$

Usually ships in 4-12 days

0

38

Gravely 451953

RVT .50X.81
(Superseded to 06808300)

$

$

Not available

39

Gravely 08584200

LATCH,ATTACHMENT

$

$

Not available

40

Gravely 08722100

PLT,MOWER BRACKET

$5.99

$

Usually ships in 4-12 days

0
