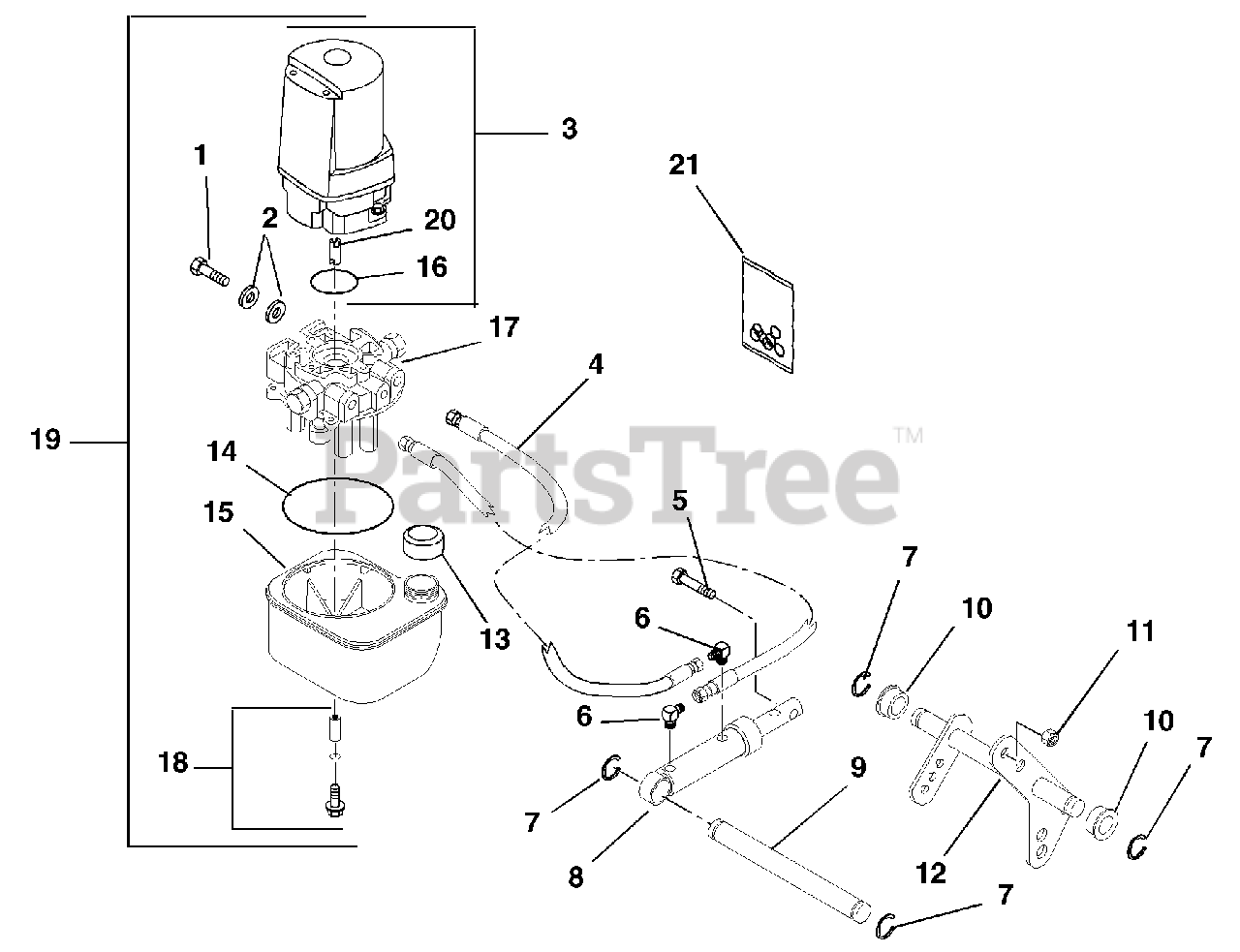

987072 - Gravely Lawn Tractor, 20.5hp Robin Subaru, With Hydraulic Lift (SN: 000101 & Above) Hydraulic System Parts Diagram

Lawn Tractor, 20.5hp Robin Subaru, With Hydraulic Lift

Hydraulic System Parts Diagram

  • Title

1

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 038842

Washer-Flat-Steel .39 x .88 x .18
(Superseded to 06436800)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 21509800

Assembly, Motor

$679.99

$

Usually ships in 4-12 days

0

4

Gravely 092214

Assembly, Hose Pump To Cylinder
(Superseded to 09221400)

$40.99

$

Usually ships in 4-12 days

0

5

Gravely 05959700

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 018826

Adapter
(Superseded to 08800700)

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 011112

Ring-Retaining-External .84 x .056
(Superseded to 05716000)

$3.99

$

In Stock, only 4 left!

0

8

Gravely 031284

Cylinder, Hydraulic
(Superseded to 08727500)

$

$

Not available

9

Gravely 018830

Shaft, Hydraulic Cylinder
(Superseded to 08708900)

$

$

Not available

10

Gravely 018355

Bushing-Flange 1.02 x 1.39 x .75 x 1.75 Nylon
(Superseded to 05520100)

$10.99

$

In Stock, Qty 20+

0

11

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

12

Gravely 087576

Weldment, Mower Lift
(Superseded to 08757600)

$

$

Not available

13

Gravely 200018

Reservior Cap-Electric/Hydraulic Pump
(Superseded to 20001800)

$21.99

$

Usually ships in 4-12 days

0

14

Gravely 214191

Reservior Tank
(Superseded to 21419100)

$

$

Not available

15

Gravely 200014

Reservior Seal, O-Ring
(Superseded to 20001400)

$15.99

$

Usually ships in 4-12 days

0

16

Gravely 21510000

O-Ring

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 21509900

Adapter Assembly

$604.99

$

Usually ships in 4-12 days

0

18

Gravely 21510100

Screw, O-Ring and Spacer Assembly

$

$

Not available

19

Gravely 08725000

Pump, Electric Hydraulic

$1006.99

$

Usually ships in 4-12 days

0

20

Gravely 21526300

Coupler

$

$

Not available

21

Gravely 21510200

Seal/O-Ring Kit, Electric/Hydraulic Pump

$

$

Not available
