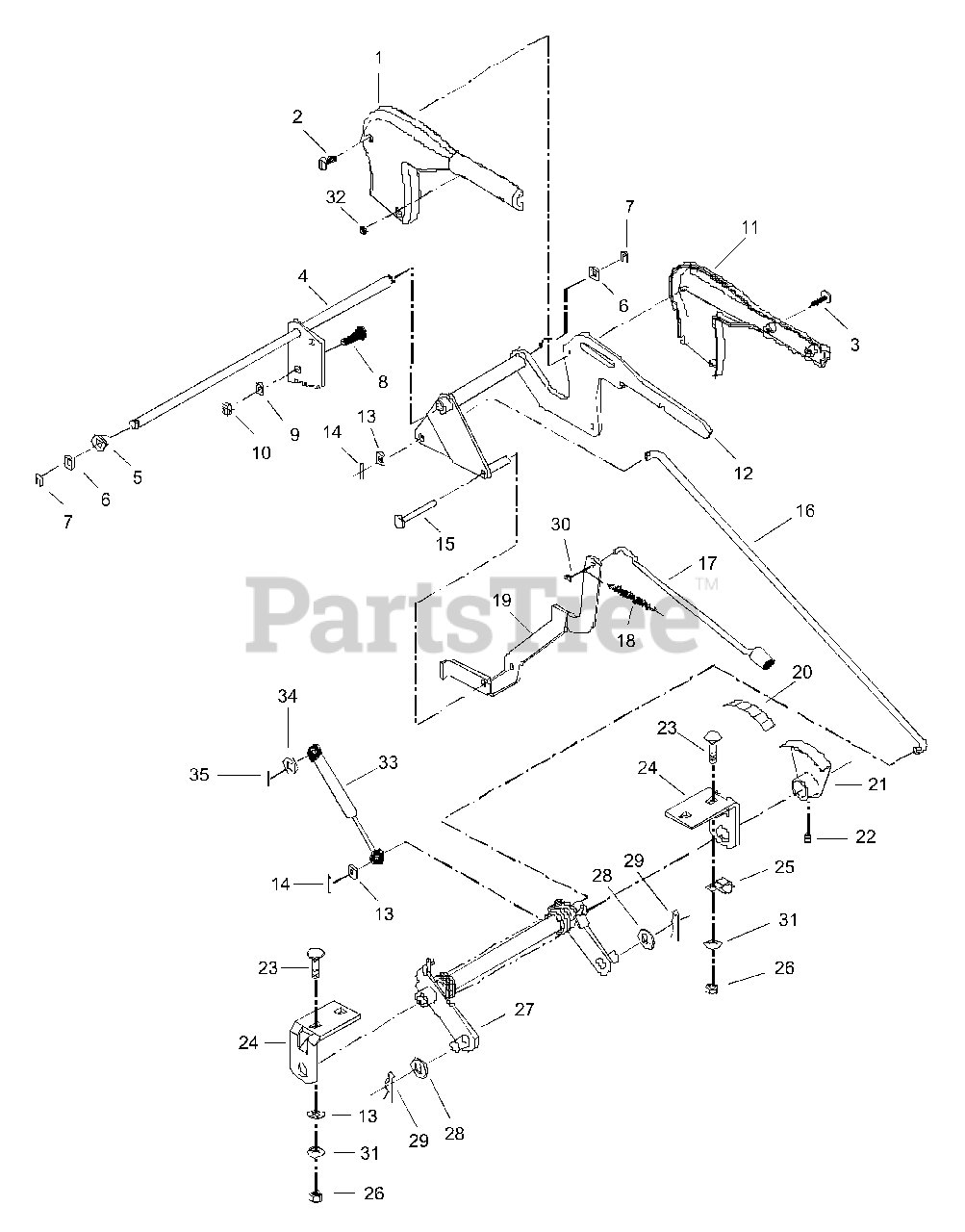

987100 (GT 440) - Gravely 40" Garden Tractor, 15hp Kohler (SN: 000101 & Above) Attachment Lift Parts Diagram

40" Garden Tractor, 15hp Kohler

Attachment Lift Parts Diagram

  • Title

1

Gravely 03665500

COVER - LIFT RH

$

$

Not available

2

Gravely 07412600

SCR-TAP 10-16X1.125HI-LOTPHBL

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

4

Gravely 03665000

PIVOT- LIFT LEVER

$109.99

$

Usually ships in 4-12 days

0

5

Gravely 05522200

BSHG-FLG .508X.873X.375X1.19

$

$

Not available

6

Gravely 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 053329

RG-RTNG-EXT .500X.050 (SNAP)
(Superseded to 05717100)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 03665600

COVER - LIFT LH

$

$

Not available

12

Gravely 03666100

LEVER - LIFT

$195.99

$

Usually ships in 4-12 days

0

13

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06707100

PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

15

Gravely 03653800

PIN, PIVOT .312 X 2.56

$

$

Not available

16

Gravely 03653700

LIFT LINK

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 03666000

PIN - LIFT
(Superseded to 03675000)

$

$

Not available

18

Gravely 08330300

SG-TENS .048X.44X2.25 WLD 9

$

$

Not available

19

Gravely 03654100

LEVER - DETENT
(Superseded to 03683051)

$62.99

$

Usually ships in 4-12 days

0

20

Gravely 07729400

DECAL - INDICATOR 5 POS

$

$

Not available

21

Gravely 03654900

INDICATOR - DECK HEIGHT

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 102569

SCR-SET .25-20X.25 SKHCUP OH
(Superseded to 06000500)

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 06211800

BLT-RHHDSQSHNK .38-16X.75 G2YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 15

0

24

Gravely 03642400

BRACKET - CENTER LIFT

$

$

Not available

25

Gravely 044715

J-CLAMP
(Superseded to 06916000)

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 03643800

LEVER - CENTER LIFT

$

$

Not available

28

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$3.49

$

In Stock, Qty 10

0

30

Gravely 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 8

0

31

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 051649

SG-GAS COMP .315X.75X10.00 120
(Superseded to 08326100)

Note: Model (987102)

$

$

Not available

34

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: Model (987102)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 06707300

PIN-CTR .12X.75 EXTPRSQCT YWZ

Note: Model (987102)

$0.99

$

In Stock, Qty 6

0
