987100 (GT 440) - Gravely 40" Garden Tractor, 15hp Kohler (SN: 000101 & Above) Clutch & Brake - Hydro Parts Diagram

40" Garden Tractor, 15hp Kohler

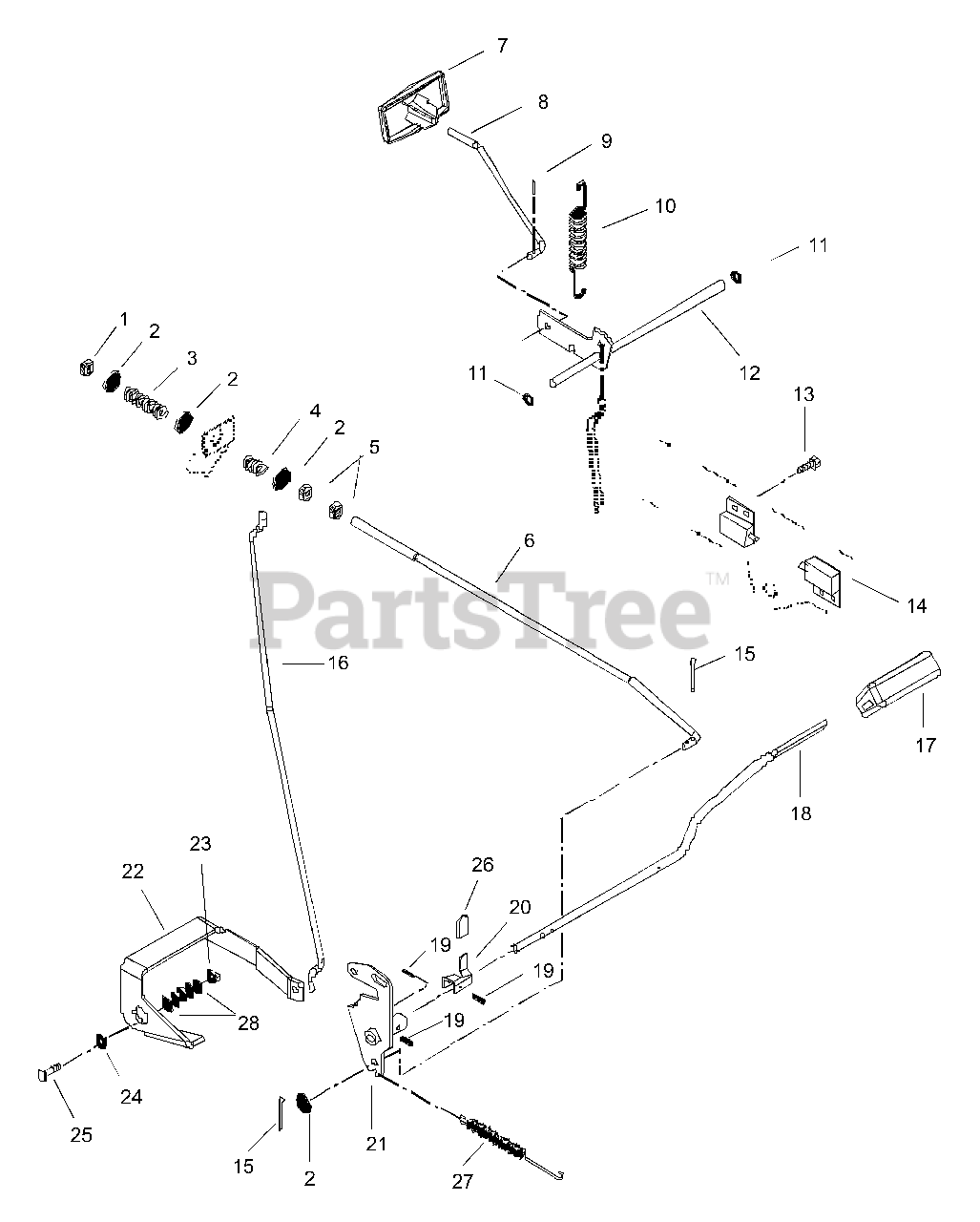

Clutch & Brake - Hydro Parts Diagram

  • Title

1

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 036041

SG-COMP .048X.59X2.06 WLD9
(Superseded to 08310400)

$

$

Not available

4

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

5

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03666700

ROD - BRAKE

$

$

Not available

7

Gravely 03652453

KNOB, PARK BRAKE

$

$

Not available

8

Gravely 03357400

ROD, PARKING BRAKE

$52.99

$

Usually ships in 4-12 days

0

9

Gravely 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 08325200

SG-TENS .051X.60X2.25 WLD 7.0

$6.49

$

In Stock, only 2 left!

0

11

Gravely 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 8

0

12

Gravely 03357300

BELLCRANK-PARKING BRAKE
(Superseded to 03357351)

$

$

Not available

13

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 12

0

14

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.99

$

In Stock, Qty 18

0

15

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

16

Gravely 03357200

ROD, PARKING BRAKE

$

$

Not available

17

Gravely 07523600

COVER - PEDAL - BRAKE

$

$

Not available

18

Gravely 03651000

PEDAL - BRAKE

$

$

Not available

19

Gravely 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, only 2 left!

0

20

Gravely 03650500

LEVER - BRAKE SWITCH

$

$

Not available

21

Gravely 03667800

ARM + HUB - BRAKE

$

$

Not available

22

Gravely 03357100

LEVER, PARKING BRAKE

$19.99

$

Usually ships in 4-12 days

0

23

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 20+

0

25

Gravely 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

26

Gravely 07526700

GRIP .062 X .375 X 1.000 RE

$

$

Not available

27

Gravely 08333200

SG-TENS .105X.85X5.00 WLD 40

$15.99

$

In Stock, Qty 6

0

28

Gravely 038840

WSHR-FL-NY .375X.75X.060
(Superseded to 06433600)

$0.99

$

In Stock, only 4 left!

0
