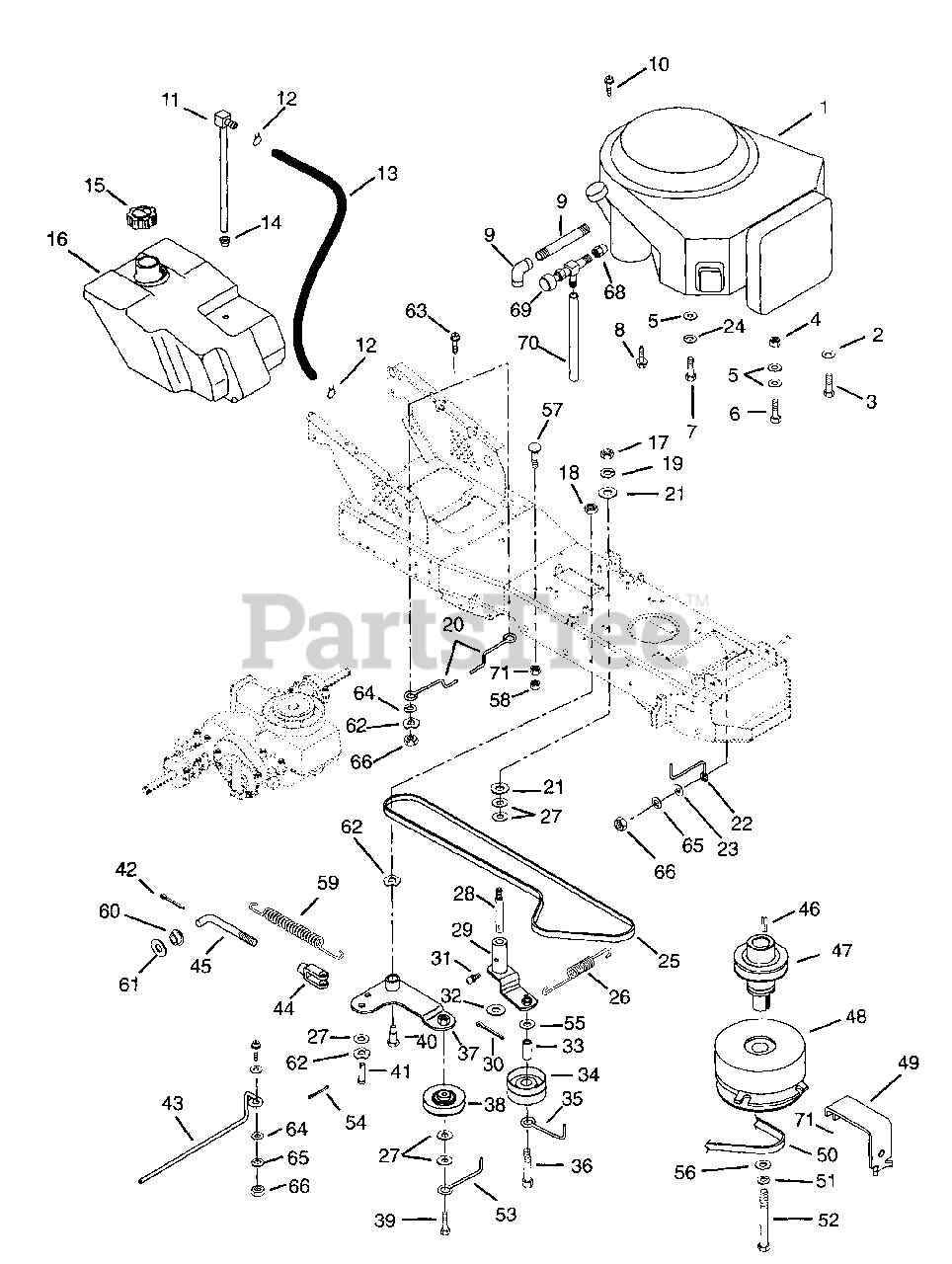

987100 (GT 440) - Gravely 40" Garden Tractor, 15hp Kohler (SN: 000101 & Above) Engine, Fuel Tank & Belt Drive Parts Diagram

40" Garden Tractor, 15hp Kohler

Engine, Fuel Tank & Belt Drive Parts Diagram

  • Title

1

Gravely 08252100

ENGINE BRIGGS 16HP TWIN

Note: Model (987102)

$

$

Not available

Gravely 08254000

BRIGG 15HP W/9AMP CHARGING

Note: Model (987101)

$

$

Not available

Gravely 08245200

ENG- 15.0 KOHLER OHV PS-41531

Note: Model (987100)

$

$

Not available

2

Gravely 06308700

WSHR-LK-EXT.391X.628X.036YWZC

Note: Model (987101)

$2.49

$

In Stock, only 2 left!

0

3

Gravely 07414700

SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

Note: Model (987101)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: Model (987102)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06439400

WSHR-FL-STL .328X.875X.062YWZC

Note: Model (987102)

$3.99

$

Usually ships in 4-12 days

0

Gravely 06439400

WSHR-FL-STL .328X.875X.062YWZC

Note: Model (987100)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

Note: Model (987102)

$1.99

$

In Stock, Qty 15

0

7

Gravely 05964900

BLT, HEX M8-1.25X25 GR8.8YWZC

Note: Model (987100)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 02749600

NIPPLE

Note: Models (987100, 101)

$9.99

$

Usually ships in 4-12 days

0

9

Gravely 07023500

ELBOW .375-18 NPTF

$

$

Not available

10

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 14

0

11

Gravely 03606500

TANK FITTING

$

$

Not available

12

Gravely 036312

CLAMP-HOSE WIRE .490/.510X.116
(Superseded to 06939100)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 03659300

HOSE- FUEL LINE 36.00"

Note: Model (987101)

$

$

Not available

Gravely 03659400

HOSE- FUEL LINE 48.00"

Note: Model (987102)

$13.99

$

Usually ships in 4-12 days

0

Gravely 03659500

HOSE- FUEL LINE 50.00"

Note: Model (987100)

$

$

Not available

14

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 01538400

FUEL CAP

$16.99

$

In Stock, Qty 20+

0

16

Gravely 03627500

FUEL TANK

$

$

Not available

17

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 03622600

BELT FINGER

$

$

Not available

21

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 03622400

BELT FINGER

$43.99

$

Usually ships in 4-12 days

0

23

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: Model (987100)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 07229700

V-BELT, 4L-WRAPPED

$61.99

$

In Stock, only 4 left!

0

26

Gravely 08334700

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

27

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, only 3 left!

0

28

Gravely 03622900

SHOULDER STUD

$35.99

$

In Stock, only 2 left!

0

29

Gravely 03646100

ARM - IDLER PIVOT

$96.99

$

Usually ships in 4-12 days

0

30

Gravely 06712700

PIN-CTR .18X1.25 EXTPRSQCT YZ

$2.49

$

In Stock, only 2 left!

0

31

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

32

Gravely 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.99

$

In Stock, Qty 20+

0

33

Gravely 03638400

TUBE .380 X .625 X 1.620

$26.99

$

Usually ships in 4-12 days

0

34

Gravely 039173

IDLER-FLAT 3.25 X .38 NWHAMSHR
(Superseded to 07308800)

$40.99

$

In Stock, only 2 left!

0

35

Gravely 03648300

FINGER - BELT

$22.99

$

In Stock, Qty 6

0

36

Gravely 05960900

BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$4.99

$

In Stock, Qty 20+

0

37

Gravely 03631200

IDLER PIVOT ARM

$

$

Not available

38

Gravely 07309200

IDLER-V 3X.38

$38.99

$

In Stock, only 1 left!

0

39

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 07023400

BLT-SHLDR .38-16X1.25

$35.99

$

Usually ships in 4-12 days

0

41

Gravely 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$

$

Not available

42

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

43

Gravely 03654600

FINGER - BELT

$77.99

$

Usually ships in 4-12 days

0

44

Gravely 034633

YOKE, .312-24 X 2.25
(Superseded to 07014700)

$15.99

$

Usually ships in 4-12 days

0

45

Gravely 03647800

LINK

$

$

Not available

46

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 12

0

47

Gravely 03636400

SHEAVE EXTENSION SHAFT- HYDRO

$

$

Not available

48

Gravely 03601800

ELECTRIC CLUTCH/BRAKE(1.8AMP)

$268.99

$

In Stock, only 1 left!

0

Gravely 03357900

CLUTCH, ELECTRIC - WARNER

Note: Model (987102)

$501.99

$

Usually ships in 4-12 days

0

49

Gravely 03656400

ANCHOR - CLUTCH

$26.99

$

Usually ships in 4-12 days

0

50

Gravely 07229600

V-BELT, 4L-RAW EDGE

$52.99

$

In Stock, only 2 left!

0

51

Gravely 06310700

WSHR-LK .438X.133 HVY YWZC

$3.49

$

In Stock, only 1 left!

0

52

Gravely 05966800

BLT-HEX .44-20X4.00 GR5 YWZC

$7.49

$

Usually ships in 4-12 days

0

53

Gravely 03638300

FINGER - BELT

$52.99

$

Usually ships in 4-12 days

0

54

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

55

Gravely 06436800

WSHR-FL-STL .390X.88X.18 YWZC

Note: Model (987102)

$3.99

$

Usually ships in 4-12 days

0

56

Gravely 06443500

WSHR-FL-STL.463X1.375X.25 YWZC

Note: Model (987102)

$7.49

$

In Stock, only 2 left!

0

57

Gravely 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.99

$

In Stock, only 2 left!

0

58

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

59

Gravely 08333200

SG-TENS .105X.85X5.00 WLD 40

$15.99

$

In Stock, Qty 6

0

60

Gravely 045789

BSHG-FLG .320X.620X.312 NY
(Superseded to 05517500)

$18.99

$

Usually ships in 4-12 days

0

61

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, Qty 9

0

62

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$1.49

$

In Stock, Qty 20+

0

63

Gravely 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

64

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

65

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

66

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

67

Gravely 044715

J-CLAMP
(Superseded to 06916000)

$2.99

$

Usually ships in 4-12 days

0

68

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

Note: Model (987102)

$6.49

$

Usually ships in 4-12 days

0

69

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

Note: Model (987102)

$40.99

$

In Stock, only 3 left!

0

70

Gravely 01523400

TUBE OIL DRAIN

Note: Model (987102)

$

$

Not available

71

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0
