987100 (GT 440) - Gravely 40" Garden Tractor, 15hp Kohler (SN: 000101 & Above) Frame & Rear Deck Parts Diagram

40" Garden Tractor, 15hp Kohler

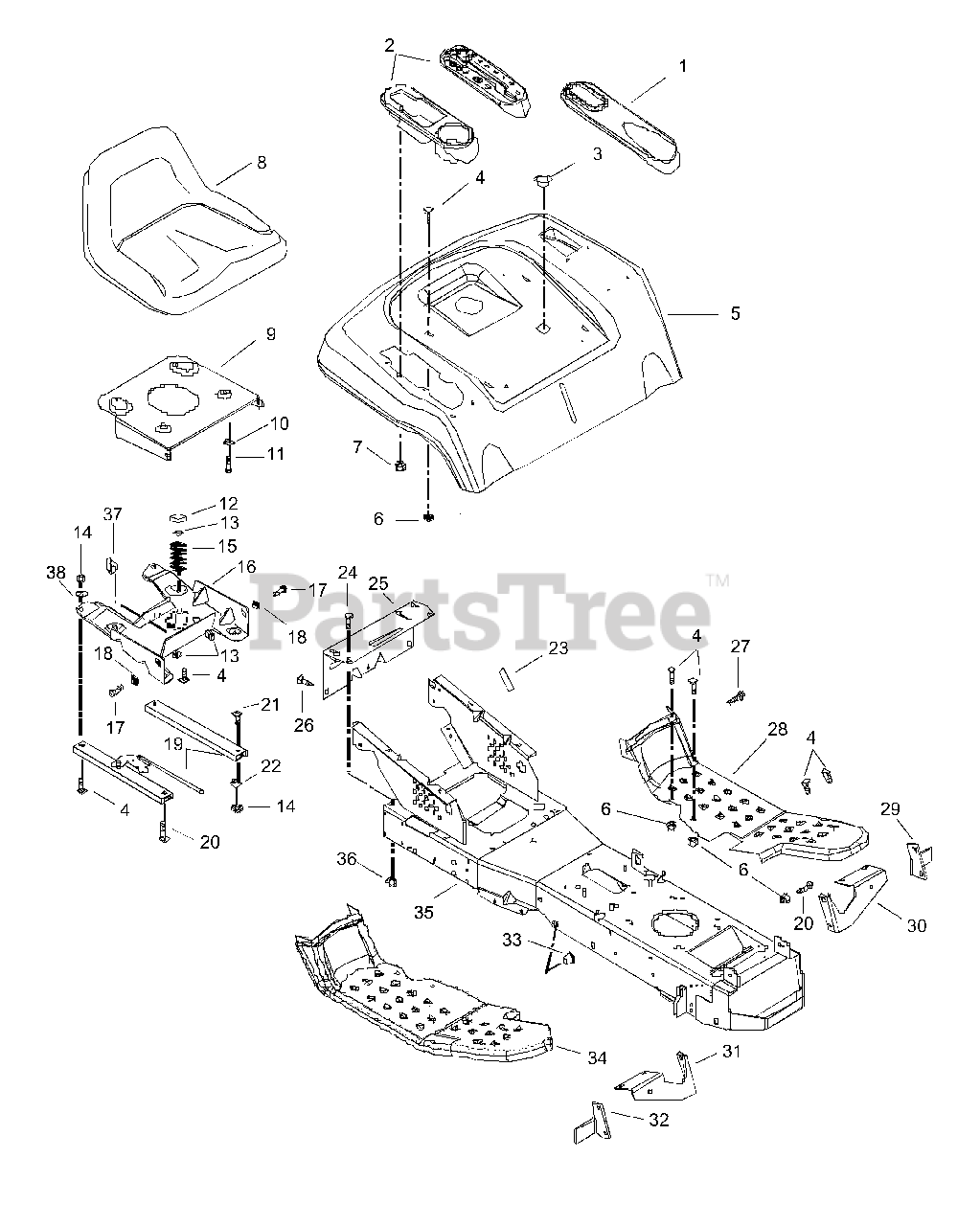

Frame & Rear Deck Parts Diagram

  • Title

1

Gravely 03650300

INSERT- LIFT

$

$

Not available

2

Gravely 03652500

INSERT - BEVERAGE

$

$

Not available

3

Gravely 07521000

SNAP BUSHING

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 03649453

REAR DECK

$56.99

$

Usually ships in 4-12 days

0

6

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 045334

NUT-SELF-THRDNG FITS.25 STUDPL
(Superseded to 07008000)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 03655600

SEAT- V1400

$

$

Not available

Gravely 03670500

SEAT
(Superseded to 00366300)

$

$

Not available

9

Gravely 03650400

SEAT PIVOT PLATE

$

$

Not available

10

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

11

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 07521600

TUBE CAP

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

15

Gravely 08328200

SG-COMP .148X1.23X2.41 WLD87

$16.99

$

In Stock, only 2 left!

0

16

Gravely 03618100

BOX, SEAT

$

$

Not available

17

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 05516200

BSHG-FLG .325X.465X.333X.685

$

$

Not available

19

Gravely 03600800

SEAT SLIDES -(RAME TAK-3010-4)

$

$

Not available

20

Gravely 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 039062

SCR-CAP BTHD.31-18X.50 GR5 YZ
(Superseded to 07008100)

$1.49

$

Usually ships in 4-12 days

0

22

Gravely 138538

WSHR-LOCK INT .31 YWZC
(Superseded to 06310500)

$0.99

$

In Stock, Qty 8

0

23

Gravely 050418

PAD,BATTERY
(Superseded to 08800600)

$

$

Not available

24

Gravely 06219600

BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

25

Gravely 03601600

DRAW BAR

$

$

Not available

26

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 14

0

27

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 03649300

FOOTREST- LH
(Superseded to 03649359)

$

$

Not available

29

Gravely 03648100

BRACKET - MOWER HEIGHT L.H.

$5.99

$

Usually ships in 4-12 days

0

30

Gravely 03649800

BRACE - FOOT REST L.H.

$

$

Not available

31

Gravely 03649900

BRACE - FOOT REST R.H.

$

$

Not available

32

Gravely 03648200

BRACKET - MOWER HEIGHT R.H.

$

$

Not available

33

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

34

Gravely 03649359

FOOT REST L.H.

$

$

Not available

35

Gravely 03355600

FRAME, MAIN
(Superseded to 03673551)

$

$

Not available

36

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 07008400

CLIP-HARNESS TINNERMAN

$

$

Not available

38

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0
