987101 (GT 440) - Gravely 40" Garden Tractor, 15hp Briggs & Stratton (SN: 000101 & Above) 40" Hanger Arm Parts Diagram

40" Garden Tractor, 15hp Briggs & Stratton

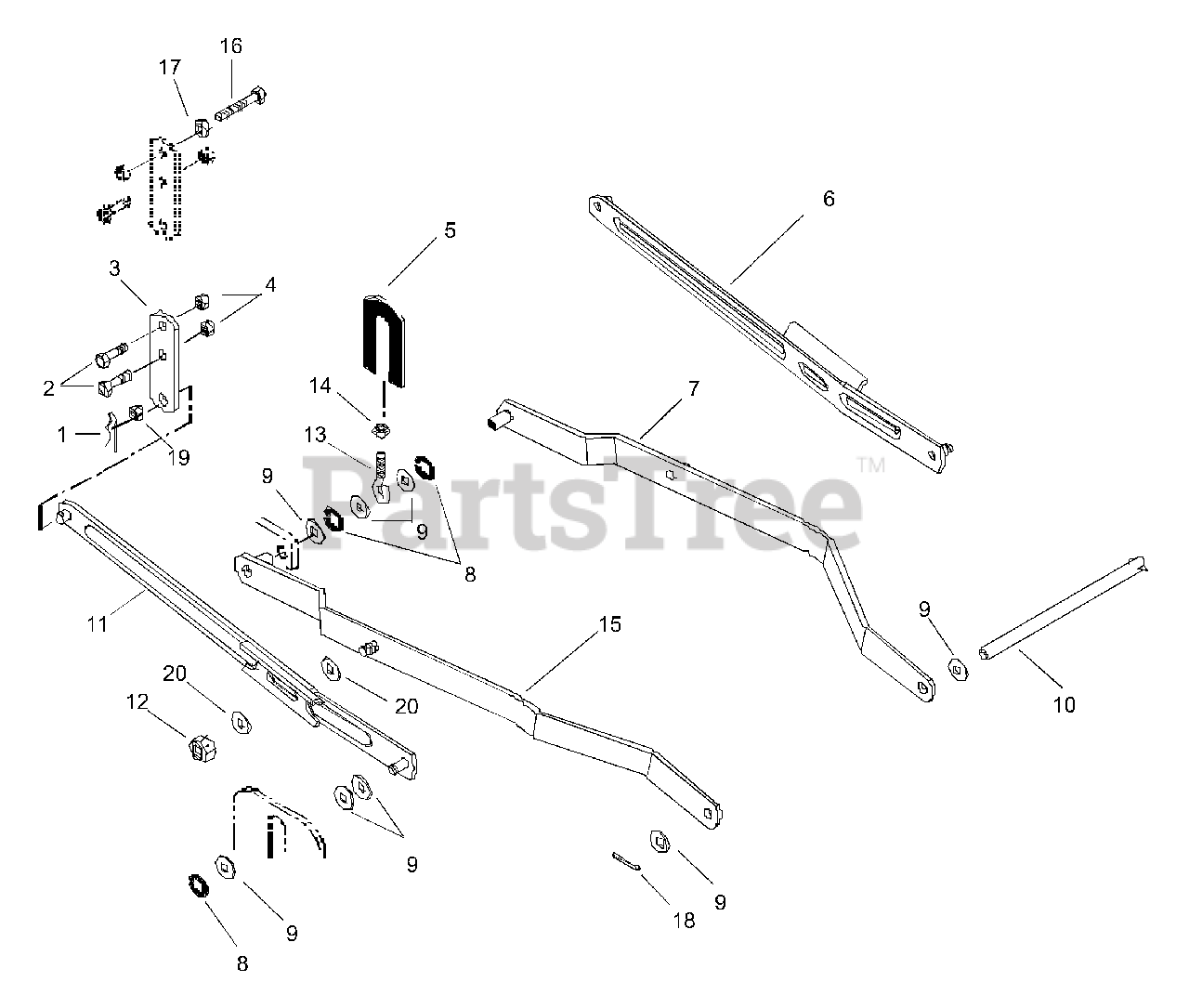

40" Hanger Arm Parts Diagram

  • Title

1

Gravely 06711900

Pin-Hair External .12 x .31 x 2.37

$2.99

$

In Stock, only 3 left!

0

2

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

3

Gravely 03588700

Hanger Bracket
(Superseded to 03588751)

$30.99

$

Usually ships in 4-12 days

0

4

Gravely 06529600

Nut-Locking-Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03486400

Adjuster Link

$43.99

$

In Stock, only 2 left!

0

6

Gravely 03667000

Rear Hanger Left Hand
(Superseded to 53608900)

$

$

Not available

7

Gravely 01534700

Left Hand Lift Arm
(Superseded to 51504400)

$

$

Not available

8

Gravely 05717100

Ring-Retaining-External .500 x .050

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 06441900

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 01535900

Pin

$39.99

$

Usually ships in 4-12 days

0

11

Gravely 03667100

Rear Hanger Right Hand
(Superseded to 53609000)

$

$

Not available

12

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

In Stock, only 1 left!

0

13

Gravely 03624500

Hanger

$51.99

$

Usually ships in 4-12 days

0

14

Gravely 06535900

Nut-Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 9

0

15

Gravely 01534800

Right Hand Lift Arm
(Superseded to 51504500)

$93.99

$

In Stock, only 1 left!

0

16

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

17

Gravely 06529400

Nut-Hex .375-16
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

18

Gravely 06707100

Pin-Cotter .12 x 1.0

$0.99

$

In Stock, Qty 12

0

19

Gravely 06436100

Washer-Flat-Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0
