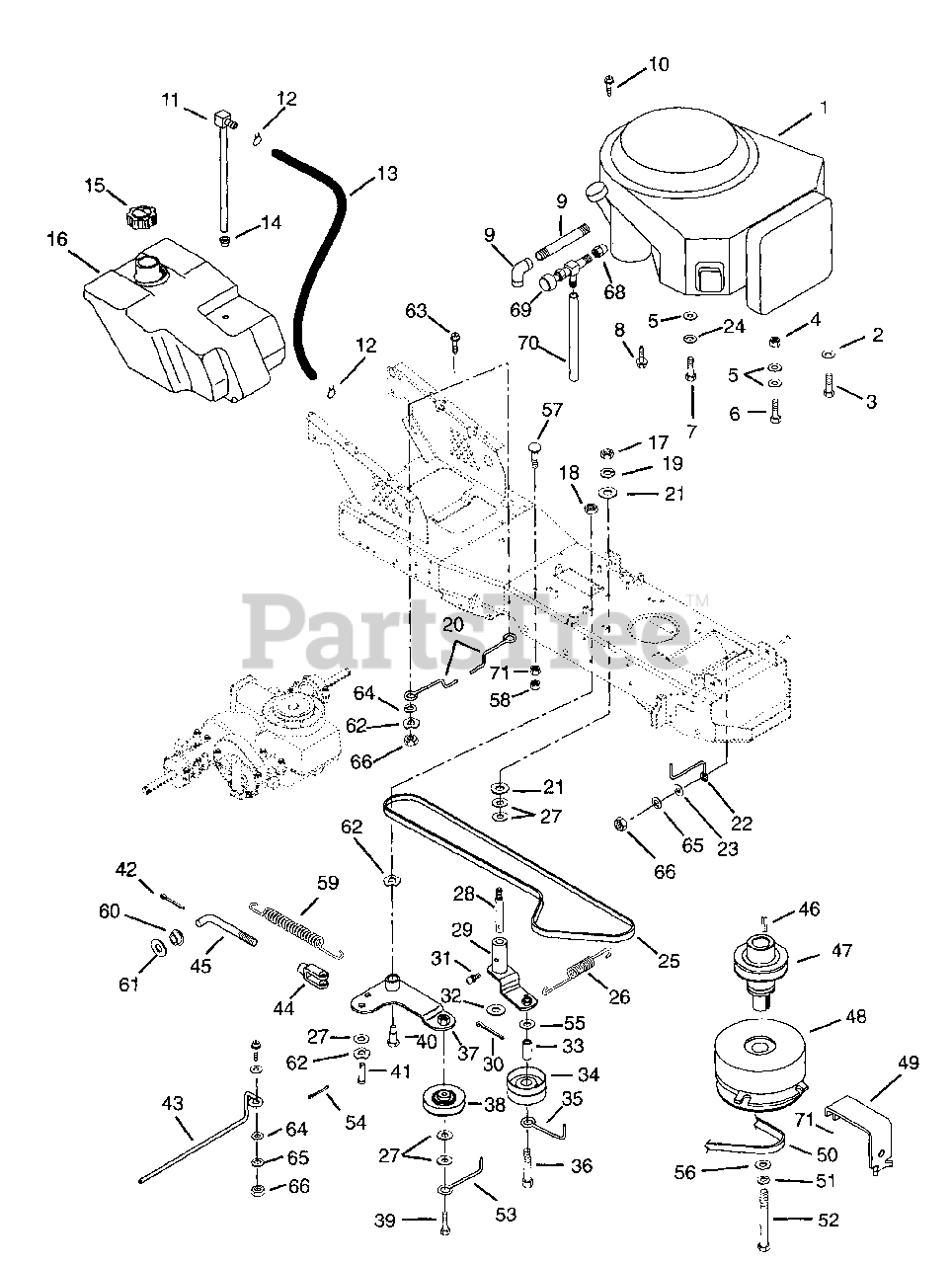

987101 (GT 440) - Gravely 40" Garden Tractor, 15hp Briggs & Stratton (SN: 000101 & Above) Engine, Fuel Tank & Belt Drive Parts Diagram

40" Garden Tractor, 15hp Briggs & Stratton

Engine, Fuel Tank & Belt Drive Parts Diagram

  • Title

1

Gravely 08252100

Engine-16.0 B & S Vanguard Twin

Note: Model (987102)

$

$

Not available

1

Gravely 08254000

Engine-15.0 B & S Vanguard Single

Note: Model (987101)

$

$

Not available

1

Gravely 08245200

Engine-15.0 Kohler OHV

Note: Model (987100)

$

$

Not available

2

Gravely 06308700

Washer-Lock External .391 x .682 x .036

Note: Model (987101)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 07414700

Screw-Tapping .375-16 x 1.25
(Superseded to 07400128)

Note: Model (987101)

$2.99

$

In Stock, only 2 left!

0

4

Gravely 06529800

Nut-Locking-Center .312-18
(Superseded to 06500826)

Note: Model (987102)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06439400

Washer-Flat-Steel .328 x .875 x .062

Note: Model (987102)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 06439400

Washer-Flat-Steel .328 x .875 x .062

Note: Model (987100)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 05952400

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

Note: Model (987102)

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 05964900

Bolt-Hex Metric 8MM-1.25 x 25MM Grade 8

Note: Model (987100)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 02749600

Nipple

Note: Models (987100, 101)

$9.49

$

Usually ships in 4-12 days

0

9

Gravely 07023500

Elbow .375-18

$

$

Not available

10

Gravely 07414400

Screw-Tapping .312-18 x .75
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0

11

Gravely 03606500

Tank Fitting

$30.99

$

In Stock, only 1 left!

0

12

Gravely 036312

Hose Clamp
(Superseded to 06939100)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 03659300

Hose-Fuel Line 36"

Note: Model (987101)

$

$

Not available

13

Gravely 03659400

Hose-Fuel Line 48"

Note: Model (987102)

$13.99

$

Usually ships in 4-12 days

0

13

Gravely 03659500

Hose-Fuel Line 50"

Note: Model (987100)

$

$

Not available

14

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 01538400

Fuel Cap

$14.99

$

In Stock, Qty 17

0

16

Gravely 03627500

Fuel Tank

$

$

Not available

17

Gravely 06529400

Nut-Hex .375-16
(Superseded to 06500917)

$0.99

$

In Stock, only 4 left!

0

18

Gravely 06529600

Nut-Locking Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06308800

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

20

Gravely 03622600

Belt Finger

$64.99

$

Usually ships in 4-12 days

0

21

Gravely 06435900

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

22

Gravely 03622400

Belt Finger

$43.99

$

Usually ships in 4-12 days

0

23

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

24

Gravely 06308600

Washer-Lock .313 x .078
(Superseded to 06300119)

Note: Model (987100)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 07229700

V-Belt

$56.99

$

In Stock, only 1 left!

0

26

Gravely 08334700

Spring-External
(Superseded to 08300512)

$15.99

$

In Stock, Qty 20+

0

27

Gravely 06444300

Washer-Flat-Steel .390 x .750 x .125

$7.99

$

In Stock, Qty 9

0

28

Gravely 03622900

Shoulder Stud

$34.99

$

In Stock, only 3 left!

0

29

Gravely 03646100

Arm-Idler Pivot

$93.99

$

Usually ships in 4-12 days

0

30

Gravely 06712700

Pin-Cotter .18 x 1.25

$1.99

$

In Stock, Qty 5

0

31

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

32

Gravely 06441100

Washer-Flat-Steel .520 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, Qty 18

0

33

Gravely 03638400

Tube

$24.99

$

Usually ships in 4-12 days

0

34

Gravely 039173

Idler Flat 3.25 x .38
(Superseded to 07308800)

$39.99

$

In Stock, only 3 left!

0

35

Gravely 03648300

Finger-Belt

$21.99

$

In Stock, Qty 7

0

36

Gravely 05960900

Bolt-Hex .38-16 x 3.50 Grade 5
(Superseded to 05901818)

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 03631200

Idler Pivot Arm

$61.99

$

Usually ships in 4-12 days

0

38

Gravely 07309200

Idler-V 3 x .38

$37.99

$

In Stock, only 2 left!

0

39

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 2 left!

0

40

Gravely 07023400

Bolt-Shoulder .38-16 x 1.25

$34.99

$

In Stock, only 1 left!

0

41

Gravely 06811800

Pin-Clevis .312 x .822
(Superseded to 06814000)

$3.99

$

In Stock, only 1 left!

0

42

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

43

Gravely 03654600

Finger-Belt

$77.99

$

Usually ships in 4-12 days

0

44

Gravely 034633

Yoke .31-24 x 2.250
(Superseded to 07014700)

$14.99

$

In Stock, only 1 left!

0

45

Gravely 03647800

Link

$

$

Not available

46

Gravely 06603400

Key-Square .25 x 1.25 x .25

$3.99

$

In Stock, only 1 left!

0

47

Gravely 03636400

Sheave Extension Shaft-Hydro

$

$

Not available

48

Gravely 03601800

Electric Clutch/Brake

$258.99

$

Usually ships in 4-12 days

0

48

Gravely 03357900

Electric Clutch/Brake

Note: Model (987102)

$491.99

$

Usually ships in 4-12 days

0

49

Gravely 03656400

Anchor-Clutch

$25.99

$

Usually ships in 4-12 days

0

50

Gravely 07229600

V-Belt

$45.99

$

In Stock, only 4 left!

0

51

Gravely 06310700

Washer-Lock .438 x .133

$2.99

$

Usually ships in 4-12 days

0

52

Gravely 05966800

Screw-Cap .44-20 x 4.00 Grade 5

$6.99

$

Usually ships in 4-12 days

0

53

Gravely 03638300

Belt Finger

$51.99

$

Usually ships in 4-12 days

0

54

Gravely 06713500

Pin-Hair-Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 12

0

55

Gravely 06436800

Washer-Flat-Steel .390 x .875 x .18

Note: Model (987102)

$3.99

$

Usually ships in 4-12 days

0

56

Gravely 06443500

Washer-Flat-Steel .463 x 1.375 x .250

Note: Model (987102)

$6.99

$

In Stock, only 1 left!

0

57

Gravely 06221800

Bolt-Round Head Squar Neck .31-18 x 1.00
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

58

Gravely 06529800

Nut-Locking-Center .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

59

Gravely 08333200

Spring-Tension .105 x .85 x 5.00

$14.99

$

Usually ships in 4-12 days

0

60

Gravely 045789

Bushing-Flange .320 x .620 x .312 Nylon
(Superseded to 05517500)

$18.99

$

Usually ships in 4-12 days

0

61

Gravely 06436600

Washer-Flat-Steel .505 x .880 x .072
(Superseded to 06401126)

$3.99

$

In Stock, only 1 left!

0

62

Gravely 00325400

Wave Washer

$0.99

$

In Stock, Qty 20+

0

63

Gravely 06214100

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

64

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, only 3 left!

0

65

Gravely 06307400

Washer-Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

66

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

67

Gravely 044715

J-Clamp
(Superseded to 06916000)

$2.49

$

Usually ships in 4-12 days

0

68

Gravely 035328

Adapter-Oil Drain
(Superseded to 03493100)

Note: Model (987102)

$5.99

$

Usually ships in 4-12 days

0

69

Gravely 035329

Cock-Oil Drain
(Superseded to 00429000)

Note: Model (987102)

$39.99

$

In Stock, only 1 left!

0

70

Gravely 01523400

Tube-Oil Drain

Note: Model (987102)

$

$

Not available

71

Gravely 419455

Nut-Nylock .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0
