987101 (GT 440) - Gravely 40" Garden Tractor, 15hp Briggs & Stratton (SN: 000101 & Above) Exhaust Parts Diagram

40" Garden Tractor, 15hp Briggs & Stratton

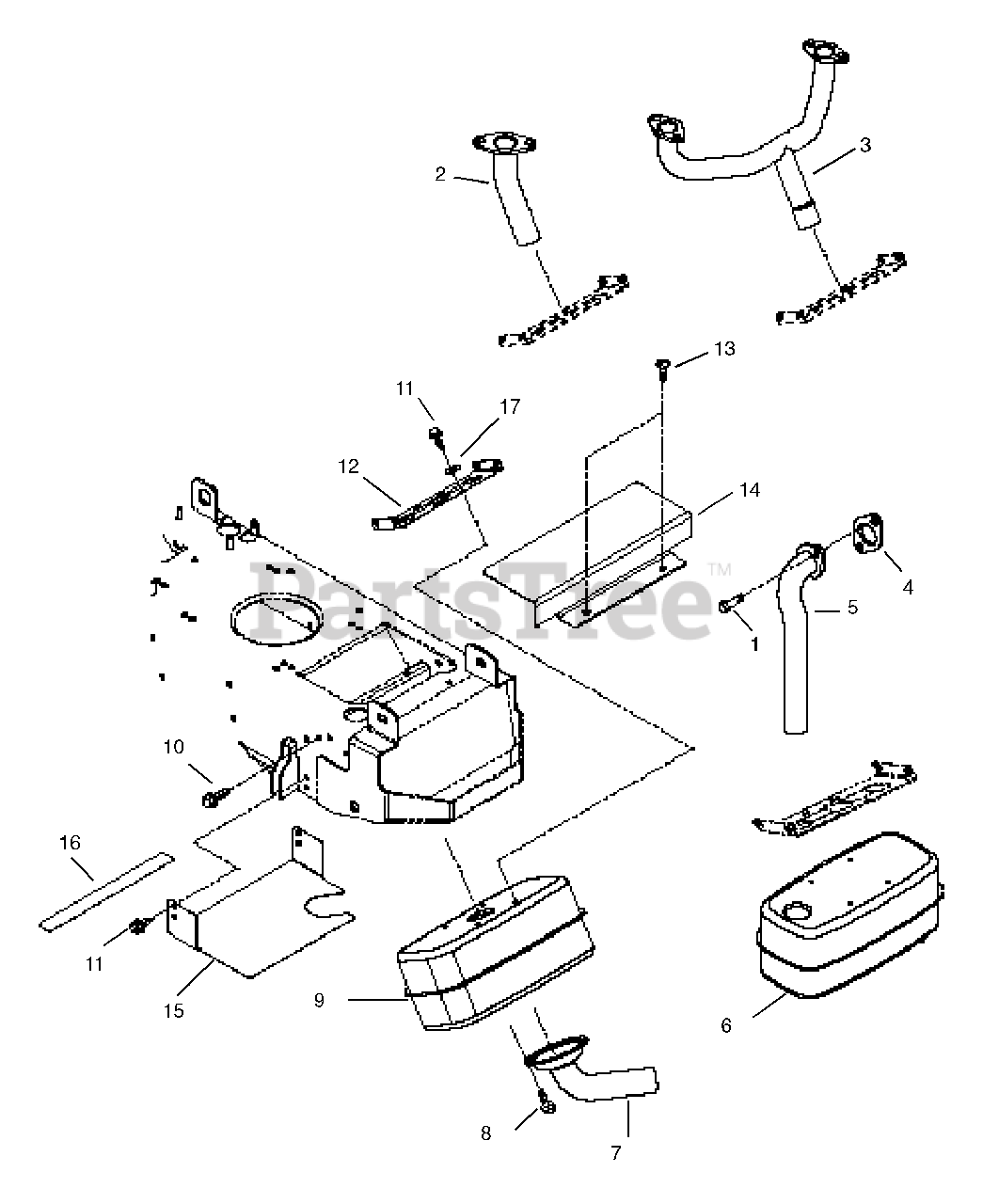

Exhaust Parts Diagram

  • Title

1

Gravely 421705

Screw-Cap .31-18 x .75
(Superseded to 05901827)

Note: Model (987101)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 03656200

Pipe-Exhaust

Note: Model (987100)

$93.99

$

Usually ships in 4-12 days

0

3

Gravely 03648700

Pipe-Exhaust Twin B & S

Note: Model (987102)

$

$

Not available

4

Gravely 03652700

Gasket B & S

Note: Model (987101)

$10.99

$

Usually ships in 4-12 days

0

5

Gravely 03656100

Pipe Exhaust

Note: Model (987101)

$

$

Not available

6

Gravely 03654400

Muffler w/Deflector

Note: Model (987101)

$152.99

$

Usually ships in 4-12 days

0

7

Gravely 03656300

Deflector-Exhaust

Note: Models (987100, 102)

$63.99

$

Usually ships in 4-12 days

0

8

Gravely 07414500

Screw-Tapping 8-32 x .38

Note: Models (987100, 102)

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 03654300

Muffler-Exhaust

Note: Models (987100, 102)

$173.99

$

In Stock, only 2 left!

0

10

Gravely 07411500

Screw-Tapping .312-18 x .50
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 07414600

Screw-Tapping 12-24 x .75

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 03648600

Bracket-Muffler

$

$

Not available

13

Gravely 07411500

Screw-Tapping .312-18 x .50
(Superseded to 07400124)

Note: Model (987102)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 03358300

Shield-Heat

Note: Model (987102)

$

$

Not available

15

Gravely 03657800

Shield-Heat
(Superseded to 53407200)

$

$

Not available

16

Gravely 03658900

Heat Shield-Fabric 1 x 10.75

$

$

Not available

17

Gravely 06442300

Washer-Flat-Steel .250 x .562 x .049

$2.49

$

Usually ships in 4-12 days

0
