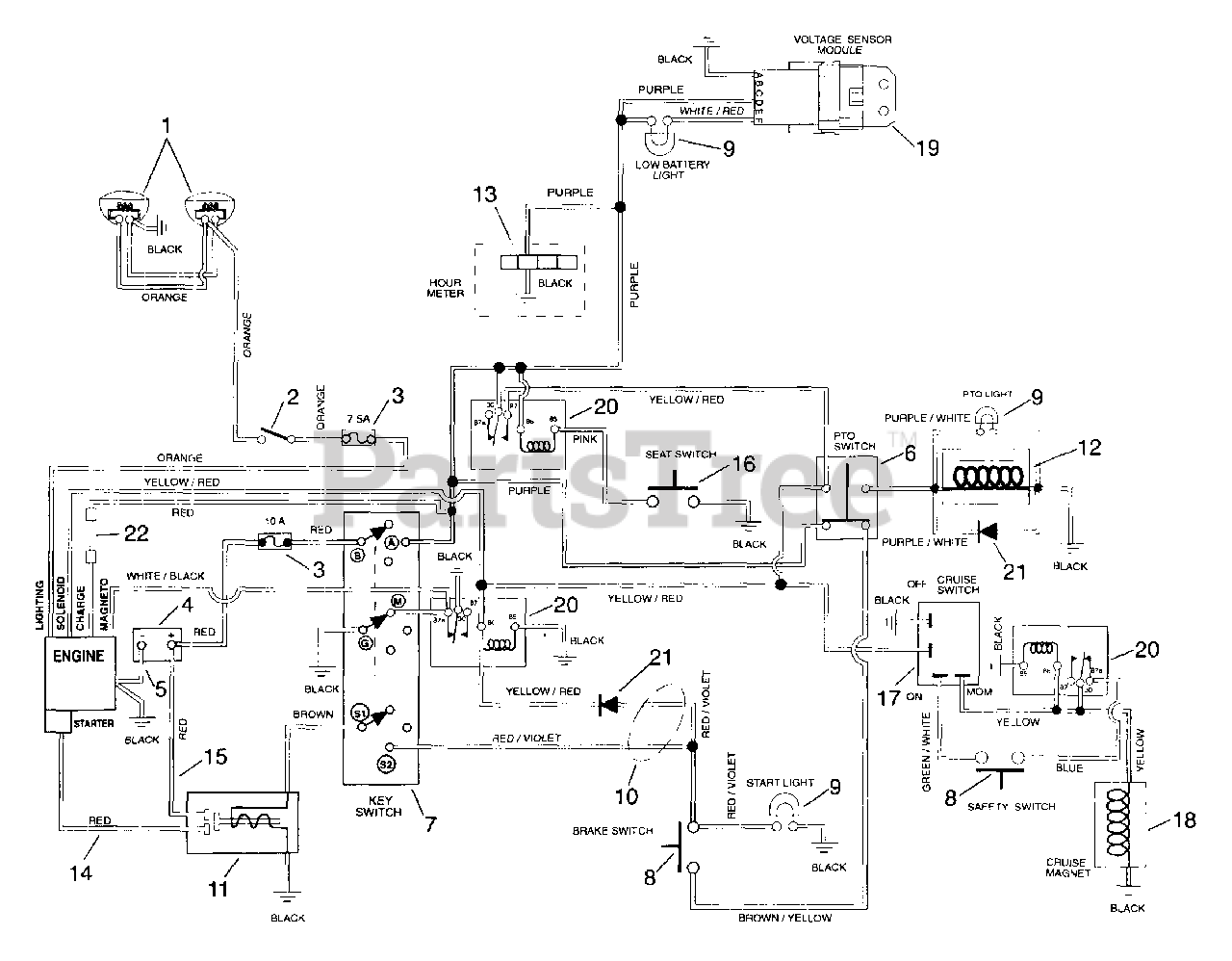

987101 (GT 440) - Gravely 40" Garden Tractor, 15hp Briggs & Stratton (SN: 000101 & Above) Wiring Diagram Parts Diagram

40" Garden Tractor, 15hp Briggs & Stratton

Wiring Diagram Parts Diagram

  • Title

1

Gravely 03647200

Headlights-Right Hand

$

$

Not available

1

Gravely 03647300

Headlights-Left Hand

$

$

Not available

2

Gravely 03656800

Switch-Light

$

$

Not available

3

7.5 AMP Fuse

7.5 AMP Fuse

$

$

Not available

3

10 AMP Fuse

10 AMP Fuse

$

$

Not available

4

Gravely 03634400

Battery W/Tube
(Superseded to 03621100)

$

$

Not available

5

Gravely 036314

Ground Cable
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

6

Gravely 53603800

PTO Knob/Switch Assembly
(Superseded to 00355900)

$82.99

$

In Stock, only 1 left!

0

7

Gravely 03602300

Key Switch

$26.99

$

In Stock, Qty 9

0

8

Gravely 03657100

Switch-Single Pole N.O.

$9.49

$

In Stock, Qty 8

0

9

#194 Bulb

#194 Bulb

$

$

Not available

10

Gravely 03672200

Wire Harness-1440H B & S

$

$

Not available

11

Gravely 045071

Solenoid
(Superseded to 03551000)

$34.99

$

In Stock, Qty 6

0

12

Gravely 03601800

Electric Clutch/Brake

$258.99

$

Usually ships in 4-12 days

0

13

Gravely 73600800

Hourmeter Kit-Sierra

Note: (Optional)

$

$

Not available

14

Gravely 02743300

Starter Cable 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 3 left!

0

15

Gravely 042696

Starter Cable 6.75"
(Superseded to 00145900)

$13.99

$

In Stock, only 2 left!

0

16

Gravely 03654200

Switch-Seat

$13.99

$

Usually ships in 4-12 days

0

17

Gravely 03656900

Switch-Cruise

$22.99

$

Usually ships in 4-12 days

0

18

Gravely 03359700

Magnet

$

$

Not available

19

Gravely 03653300

Module-Voltage Sensor

$62.99

$

Usually ships in 4-12 days

0

20

Gravely 040216

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

21

Gravely 03081700

Molded Diode Plug-Clear Lamp

$26.99

$

In Stock, only 1 left!

0

22

Gravely 01544800

Wire Harness Adaptor

$34.99

$

Usually ships in 4-12 days

0
