987102 (GT 448) - Gravely 48" Garden Tractor, 16hp Briggs & Stratton (SN: 000101 & Above) 48" Mower Deck & Rollers Parts Diagram

48" Garden Tractor, 16hp Briggs & Stratton

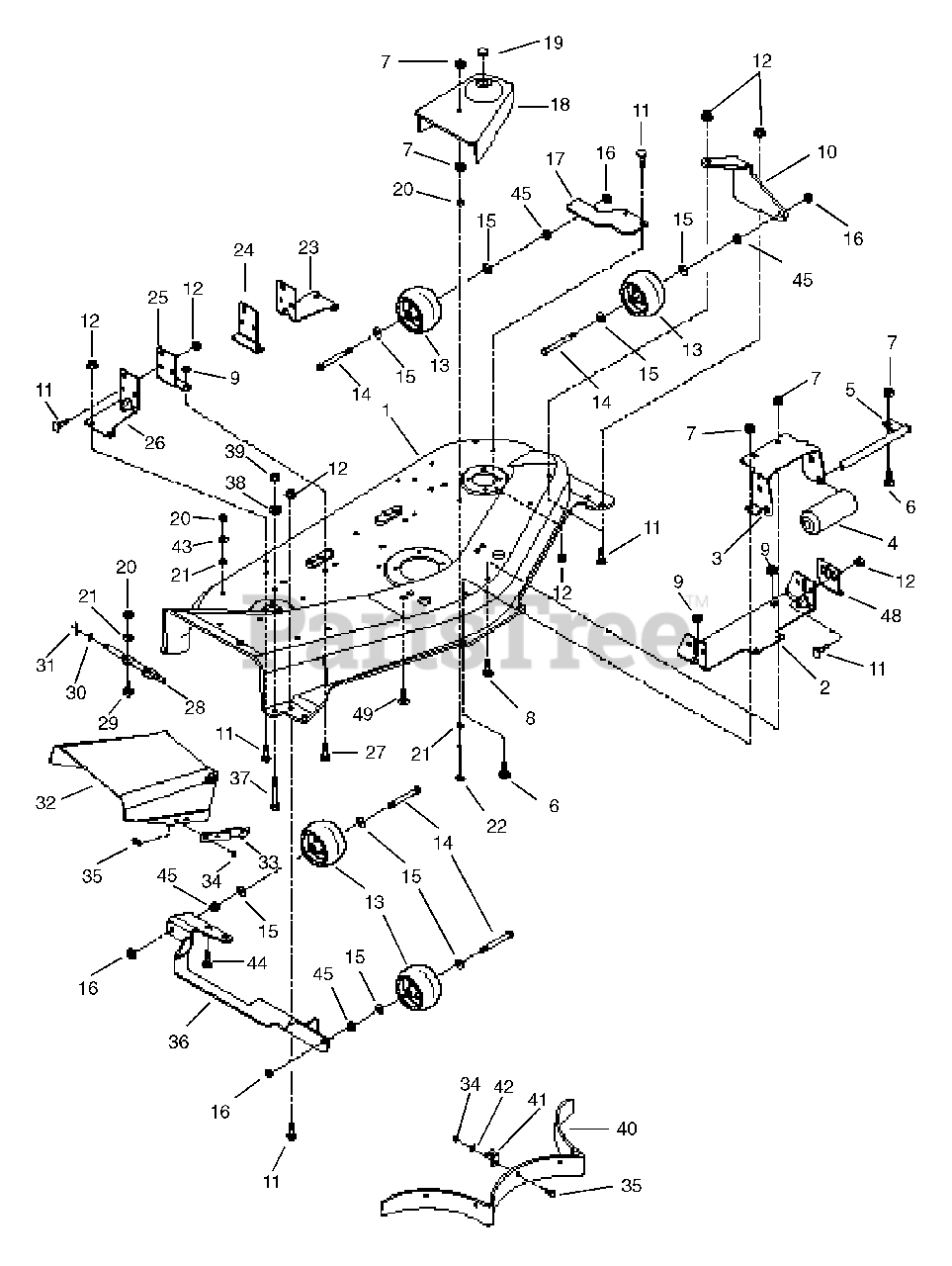

48" Mower Deck & Rollers Parts Diagram

  • Title

1

Gravely 53607300

48" DECK W/DECALS - GLT
(Superseded to 51503400)

$

$

Not available

2

Gravely 01521200

FRONT HANGER
(Superseded to 01521251)

$46.99

$

Usually ships in 4-12 days

0

3

Gravely 03435100

BRACKET, ROLLER
(Superseded to 03435151)

$83.99

$

Usually ships in 4-12 days

0

4

Gravely 039563

ROLLER
(Superseded to 03114100)

$23.99

$

In Stock, Qty 20+

0

5

Gravely 039601

ROLLER SHAFT
(Superseded to 03435200)

$52.99

$

Usually ships in 4-12 days

0

6

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

10

Gravely 01533800

BRACKET - LEFT FRONT
(Superseded to 01533851)

$39.99

$

Usually ships in 4-12 days

0

11

Gravely 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.99

$

In Stock, Qty 18

0

12

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$17.99

$

In Stock, Qty 20+

0

14

Gravely 05962300

BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$6.99

$

In Stock, Qty 11

0

15

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

17

Gravely 01534153

BRACKET, LEFT REAR - RED

$

$

Not available

18

Gravely 03096253

COVER, RIGHT HAND

$14.99

$

Usually ships in 4-12 days

0

Gravely 03095953

COVER, LEFT HAND

$

$

Not available

19

Gravely 039746

BUTTON PLUG 1.0
(Superseded to 07504000)

$

$

Not available

20

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

21

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

22

Gravely 039745

BLT-RDHDSQNK .31-18X3.50 G5YZ
(Superseded to 06200411)

$6.99

$

In Stock, only 2 left!

0

23

Gravely 01535853

LH REAR HANGER - RED
(Superseded to 01535851)

$40.99

$

Usually ships in 4-12 days

0

24

Gravely 01521600

LH REAR HANGER SUPPORT
(Superseded to 01521651)

$17.99

$

Usually ships in 4-12 days

0

25

Gravely 01521400

RH REAR HANGER SUPPORT
(Superseded to 01521451)

$47.99

$

Usually ships in 4-12 days

0

26

Gravely 01535753

RH REAR HANGER - RED
(Superseded to 01535700)

$58.99

$

Usually ships in 4-12 days

0

27

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

28

Gravely 03405800

HINGE PIN

$48.99

$

Usually ships in 4-12 days

0

29

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

32

Gravely 03034953

CHUTE EXTENSION

$

$

Not available

33

Gravely 00318553

FLAT SPRING - RED

$

$

Not available

34

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

$1.99

$

In Stock, only 3 left!

0

36

Gravely 01533953

MOUNT - ROLLER
(Superseded to 01533900)

$

$

Not available

37

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

38

Gravely 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$4.99

$

In Stock, Qty 17

0

39

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 03434253

BAFFLE
(Superseded to 03434200)

$85.99

$

In Stock, only 2 left!

0

41

Gravely 03434353

BAFFLE TAB

$

$

Not available

42

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

45

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

46

Gravely 03667253

GUARD - FOOT - LEFT - RED

$

$

Not available

47

Gravely 03667353

GUARD - FOOT - RIGHT - RED

$

$

Not available

48

Gravely 03581753

MOWER ADJUSTMENT TAB
(Superseded to 03581700)

$

$

Not available

49

Gravely 06215600

BLT-RDHDSQNK .50-13X1.00 G2YW
(Superseded to 06224600)

$3.99

$

Usually ships in 4-12 days

0
