987102 (GT 448) - Gravely 48" Garden Tractor, 16hp Briggs & Stratton (SN: 000101 & Above) 48" Mower Spindle Parts Diagram

48" Garden Tractor, 16hp Briggs & Stratton

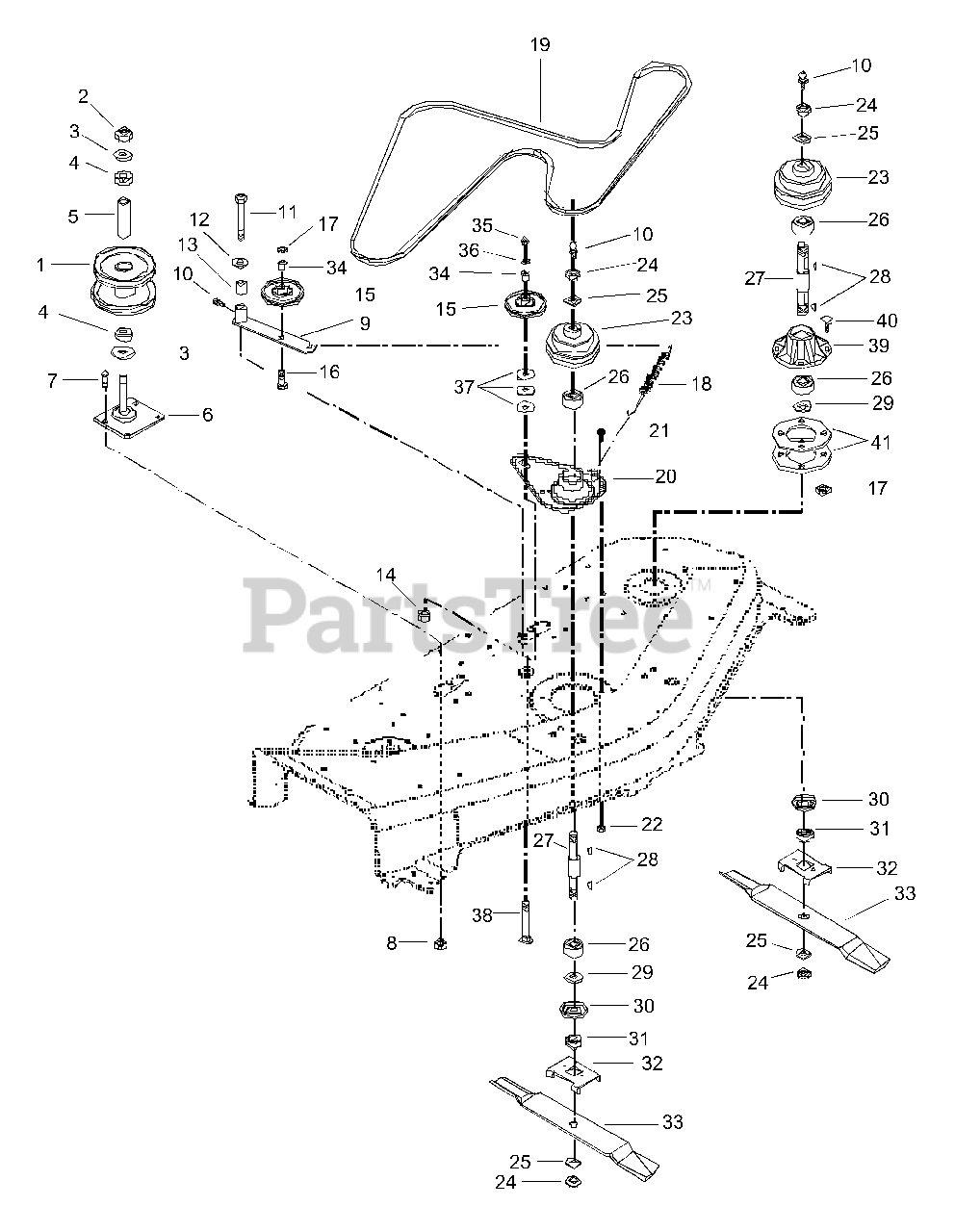

48" Mower Spindle Parts Diagram

  • Title

1

Gravely 03666900

JACKSHAFT - 48" DECK

$

$

Not available

2

Gravely 06530300

NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$4.99

$

In Stock, Qty 8

0

3

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$16.99

$

In Stock, Qty 20+

0

5

Gravely 03615500

SPACER .640X.880X2.545

$29.99

$

In Stock, only 4 left!

0

6

Gravely 03666300

PLATE - MOUNT
(Superseded to 03666351)

$94.99

$

Usually ships in 4-12 days

0

7

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 03666400

ARM - IDLER

$

$

Not available

10

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

11

Gravely 05965500

BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$5.49

$

Usually ships in 4-12 days

0

12

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, Qty 9

0

13

Gravely 039598

SPACER, PIVOT .500X.750X1.805
(Superseded to 03433800)

$

$

Not available

14

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

15

Gravely 00542700

IDLER, PLASTIC, 4.00 X .50 ID

$38.99

$

In Stock, Qty 6

0

16

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 015353

SG-TENS .075X.75X2.25 WLD20.7
(Superseded to 08327600)

$17.99

$

Usually ships in 4-12 days

0

19

Gravely 07235200

V-BELT, HA-RAW EDGE

$60.99

$

Usually ships in 4-12 days

0

20

Gravely 03354600

HOUSING, SPINDLE

$

$

Not available

21

Gravely 06219600

BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

22

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 03670300

SHEAVE

$191.99

$

Usually ships in 4-12 days

0

24

Gravely 06537700

NUT-JAM .75-10 YWZC

$2.99

$

In Stock, Qty 20+

0

25

Gravely 06310300

WSHR-LK .75X.188 REG YWZC

$1.99

$

In Stock, Qty 16

0

26

Gravely 035925

BRG-BALL .750X1.781X.61
(Superseded to 05412000)

$15.99

$

In Stock, Qty 20+

0

27

Gravely 039552

SPINDLE SHAFT W/ZERK
(Superseded to 53115100)

$75.99

$

In Stock, only 2 left!

0

28

Gravely 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.99

$

In Stock, Qty 12

0

29

Gravely 06444100

WSHR-FL-STL .754X1.000X.032 YZ

$2.99

$

In Stock, Qty 9

0

30

Gravely 00341900

BEARING SLINGER

$23.99

$

In Stock, Qty 7

0

31

Gravely 039559

RETAINER HUB
(Superseded to 03037500)

$73.99

$

In Stock, only 1 left!

0

32

Gravely 03485500

BLADE TRAY 48

$21.99

$

Usually ships in 4-12 days

0

33

Gravely 03123700

BLADE

$23.99

$

In Stock, Qty 13

0

34

Gravely 036849

SPACER -FLANGED .390X.500X.781
(Superseded to 03114500)

$10.99

$

In Stock, Qty 12

0

35

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0

38

Gravely 06220500

BLT-RDHDSQNK .38-16X2.00 G2YZ
(Superseded to 06224300)

$3.99

$

In Stock, Qty 11

0

39

Gravely 039595

SPINDLE HOUSING
(Superseded to 03433500)

$

$

Not available

40

Gravely 06219600

BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

41

Gravely 039596

SPACER, SPINDLE
(Superseded to 03433600)

$

$

Not available
