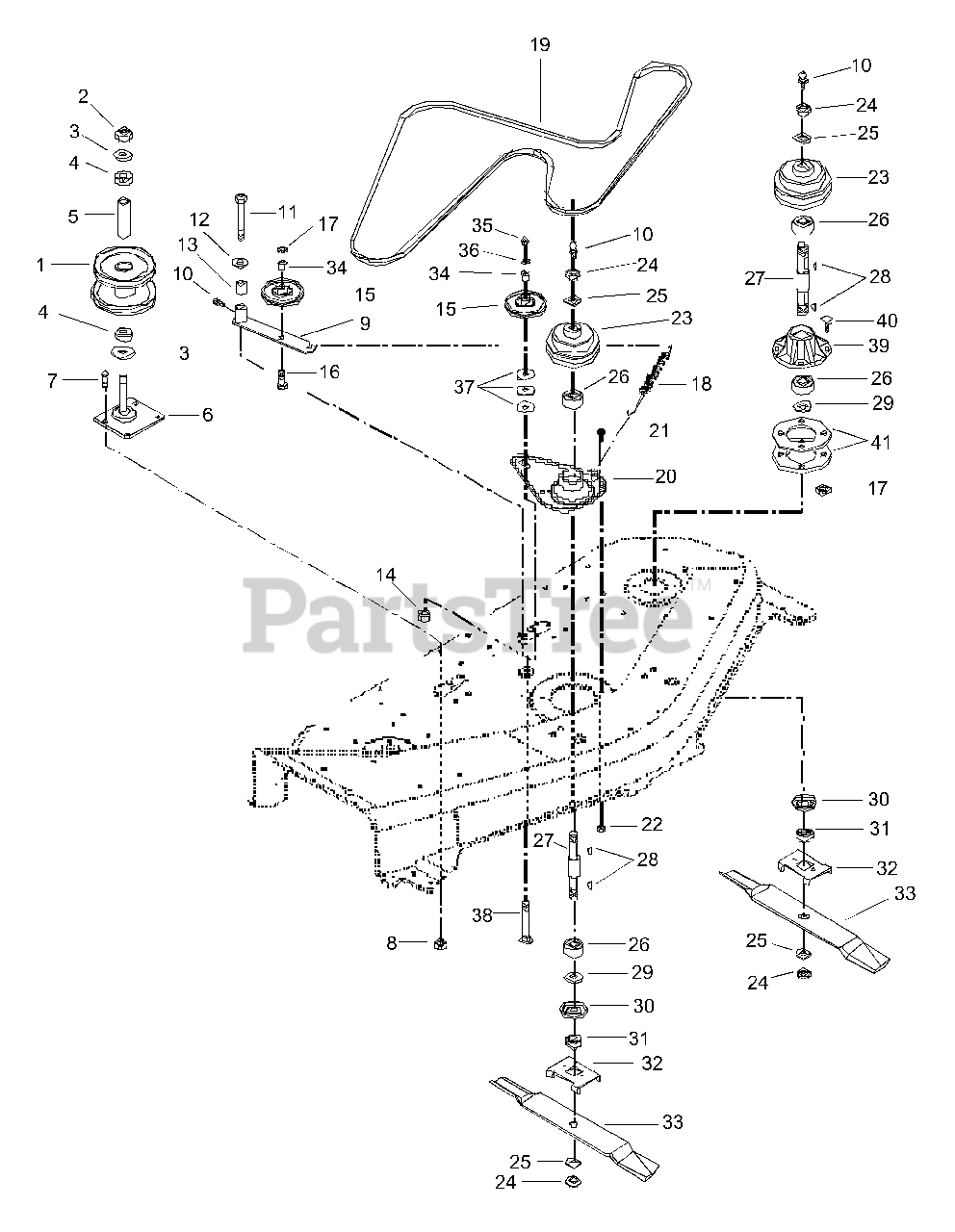

987102 (GT 448) - Gravely 48" Garden Tractor, 16hp Briggs & Stratton (SN: 000101 & Above) 48" Mower Spindle Parts Diagram

48" Garden Tractor, 16hp Briggs & Stratton

48" Mower Spindle Parts Diagram

  • Title

1

Gravely 03666900

Jackshaft - 48" Deck

$

$

Not available

2

Gravely 06530300

Nut-Locking-Nylon .625-18
(Superseded to 06500936)

$3.99

$

In Stock, Qty 11

0

3

Gravely 06436100

Washer-Flat-Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05403900

Bearing-Ball .625 x 1.375 x .44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 19

0

5

Gravely 03615500

Spacer .640 x .880 x 2.768

$27.99

$

In Stock, only 4 left!

0

6

Gravely 03666300

Plate-Mount
(Superseded to 03666351)

$92.99

$

Usually ships in 4-12 days

0

7

Gravely 06212200

Bolt-Round Head Square Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06530400

Nut-Locking-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

9

Gravely 03666400

Arm-Idler

$

$

Not available

10

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

11

Gravely 05965500

Bolt-Hex .500-13 x 2.75 Grade 5
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 06436600

Washer-Flat-Steel .505 x .880 x .072
(Superseded to 06401126)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 039598

Spacer-Pivot
(Superseded to 03433800)

$14.99

$

Usually ships in 4-12 days

0

14

Gravely 06536300

Nut-Locking-Center .500-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 00542700

Idler-Flat 4.00 x .38

$37.99

$

In Stock, only 2 left!

0

16

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 8

0

17

Gravely 06537200

Nut-Locking-Jam .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 015353

Spring-Tension
(Superseded to 08327600)

$17.99

$

In Stock, only 2 left!

0

19

Gravely 07235200

V-Belt - 48" Deck

$58.99

$

Usually ships in 4-12 days

0

20

Gravely 03354600

Housing Spindle

$64.73

$

Usually ships in 4-12 days

0

21

Gravely 06219600

Bolt-Round Head Square Neck .38-16 x .75 Grade 2
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

22

Gravely 06529600

Nut-Locking Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 03670300

Sheave

$187.99

$

Usually ships in 4-12 days

0

24

Gravely 06537700

Nut-Jam .75-10

$2.49

$

In Stock, Qty 20+

0

25

Gravely 06310300

Washer-Lock .750 x .188

$1.49

$

In Stock, Qty 10

0

26

Gravely 035925

Bearing-Ball .750 x 1.781 x .61
(Superseded to 05412000)

$13.99

$

In Stock, Qty 20+

0

27

Gravely 039552

Spindle Shaft w/Zerk
(Superseded to 53115100)

$74.99

$

In Stock, only 1 left!

0

28

Gravely 06601400

Key-Woodruff .188 x .62 x .25

$2.49

$

In Stock, Qty 10

0

29

Gravely 06444100

Washer-Flat-Steel .754 x 1.000 x .032

$2.99

$

In Stock, Qty 17

0

30

Gravely 00341900

Bearing Slinger

$20.99

$

In Stock, only 4 left!

0

31

Gravely 039559

Retainer Hub
(Superseded to 03037500)

$71.99

$

In Stock, only 2 left!

0

32

Gravely 03485500

Blade Tray 48

$20.99

$

In Stock, only 2 left!

0

33

Gravely 03123700

Blade

$22.99

$

In Stock, only 3 left!

0

34

Gravely 036849

Spacer-Flanged
(Superseded to 03114500)

$9.99

$

In Stock, only 4 left!

0

35

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

37

Gravely 06441700

Washer-Flat-Steel .390 x 1.50 x 1.25

$3.99

$

In Stock, only 3 left!

0

38

Gravely 06220500

Bolt-Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06224300)

$3.99

$

In Stock, Qty 7

0

39

Gravely 039595

Spindle Housing
(Superseded to 03433500)

$

$

Not available

40

Gravely 06219600

Bolt-Round Head Square Neck .38-16 x .75
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

41

Gravely 039596

Spacer, Spindle
(Superseded to 03433600)

$

$

Not available
