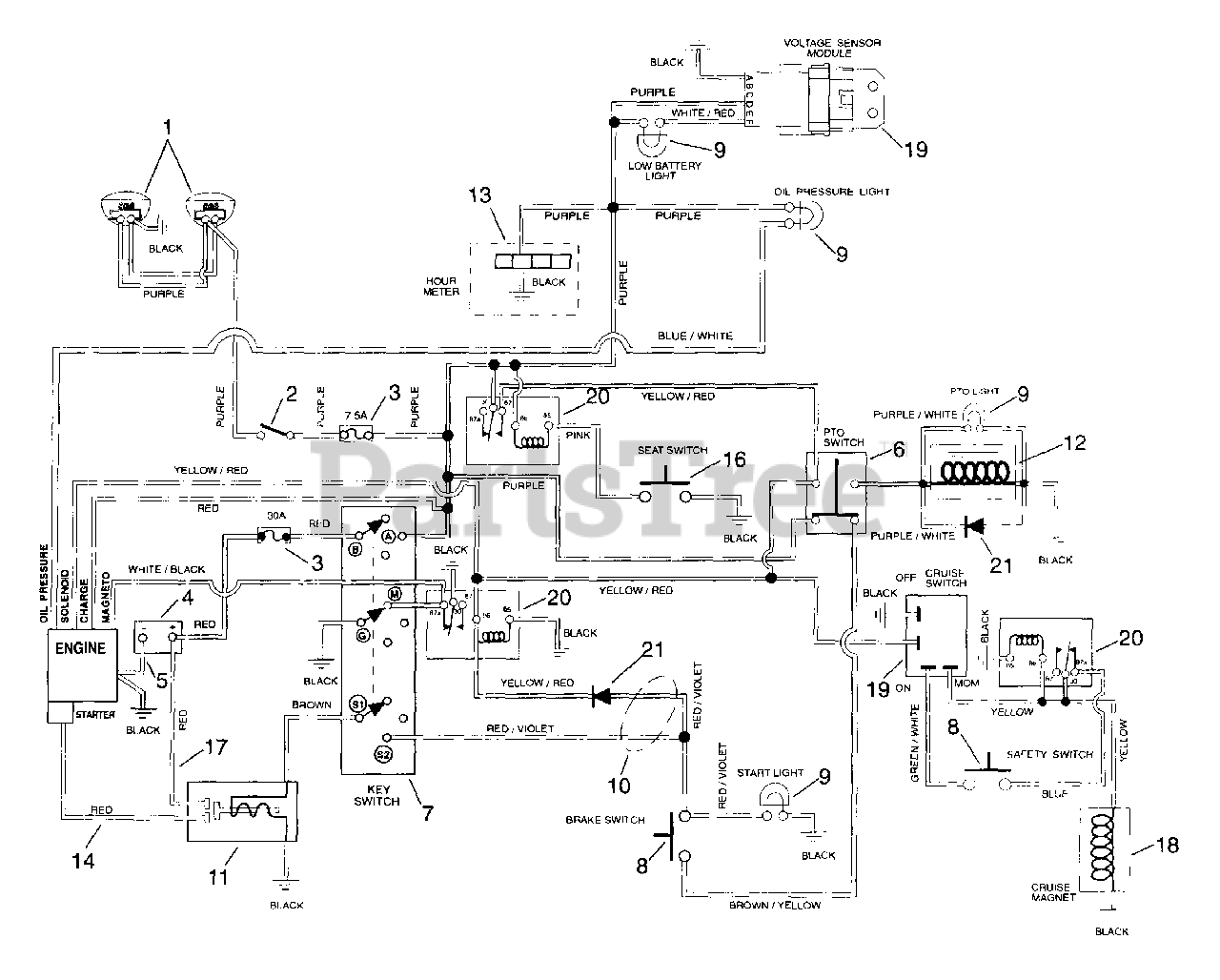

987102 (GT 448) - Gravely 48" Garden Tractor, 16hp Briggs & Stratton (SN: 000101 & Above) Wiring Diagram Parts Diagram

48" Garden Tractor, 16hp Briggs & Stratton

Wiring Diagram Parts Diagram

  • Title

1

Gravely 03647200

HEADLIGHT- RH

$

$

Not available

Gravely 03647300

HEADLIGHT- LH

$

$

Not available

2

Gravely 03656800

SWITCH - LIGHT

$

$

Not available

3

7.5 AMP Fuse

$

$

Not available

30 AMP Fuse

$

$

Not available

4

Gravely 03634400

BATTERY W/TUBE
(Superseded to 03621100)

$

$

Not available

5

Gravely 036314

CABLE, GROUND 22.00"
(Superseded to 03111101)

$24.99

$

In Stock, only 2 left!

0

6

Gravely 53603800

PTO KNOB/ SWITCH ASSY
(Superseded to 00355900)

$88.99

$

In Stock, only 4 left!

0

7

Gravely 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 9

0

8

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$10.99

$

In Stock, Qty 13

0

9

#194 Bulb

$

$

Not available

10

UNKNOWN

$

$

Not available

11

Gravely 045071

SOLENOID
(Superseded to 03551000)

$45.99

$

In Stock, only 3 left!

0

12

UNKNOWN

$

$

Not available

13

Gravely 73600800

HOURMETER KIT- SIERRA

Note: (Optional)

$

$

Not available

14

Gravely 02743300

START CABLE 22"
(Superseded to 03287200)

$21.99

$

In Stock, only 2 left!

0

15

Gravely 042696

STARTER CABLE 6.75"
(Superseded to 00145900)

$

$

Not available

16

Gravely 03654200

SWITCH- SEAT

$15.99

$

In Stock, Qty 5

0

17

Gravely 03656900

SWITCH - CRUISE

$25.99

$

Usually ships in 4-12 days

0

18

Gravely 03359700

MAGNET

$

$

Not available

19

Gravely 03653300

MODULE - VOLTAGE SENSOR

$66.99

$

Usually ships in 4-12 days

0

20

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$27.99

$

In Stock, Qty 20+

0

21

Gravely 03081700

MOLDED DIODE PLUG 1 AMP

$30.99

$

In Stock, only 1 left!

0
