987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Attachment Lift Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

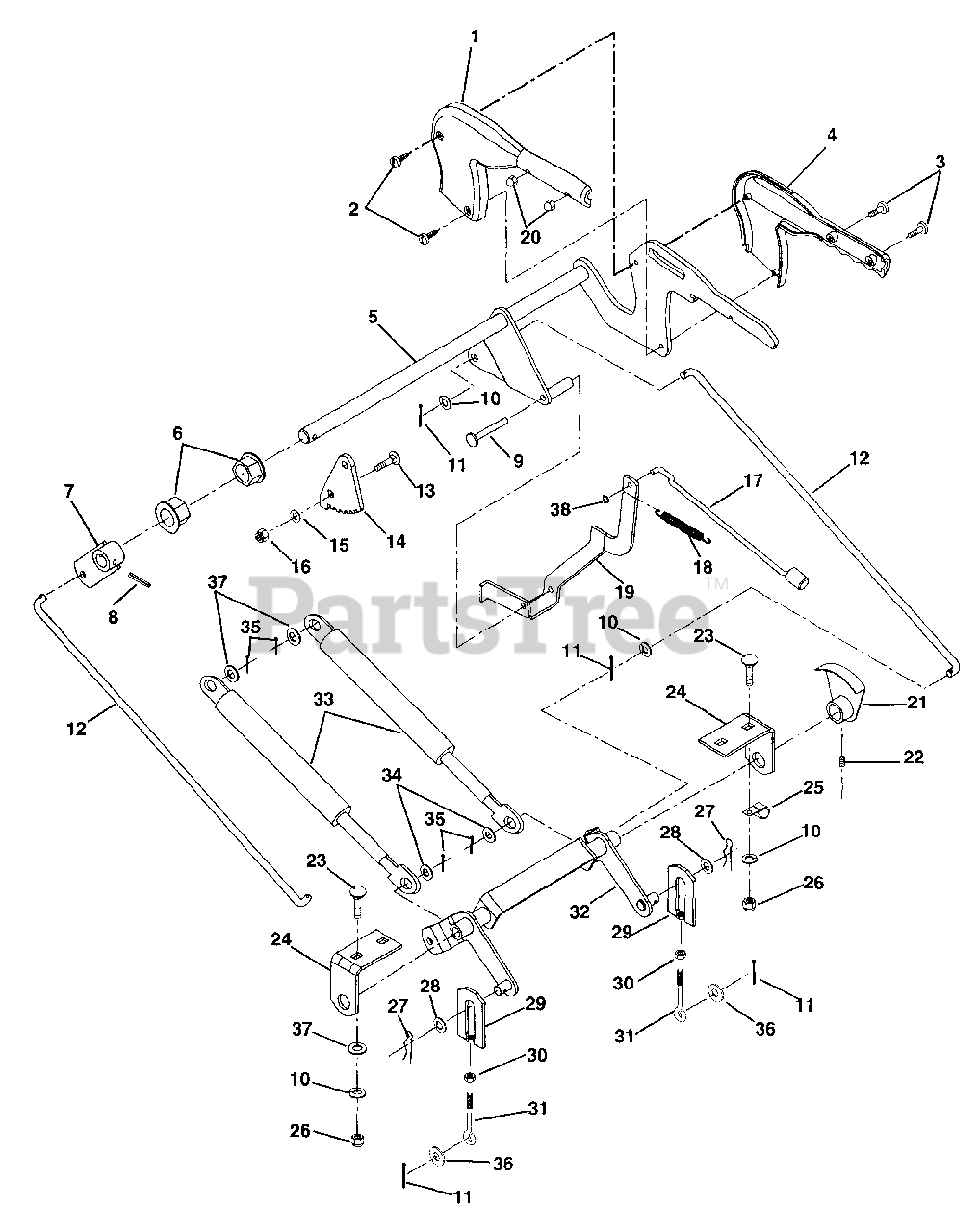

Attachment Lift Parts Diagram

  • Title

1

Gravely 03665500

Cover-Lift Right Hand

$

$

Not available

2

Gravely 07412600

Screw Tapping 12-16 x 1.125

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 159929

Screw-Machine 10-24 x .62
(Superseded to 06111100)

$1.49

$

In Stock, Qty 12

0

4

Gravely 03665600

Cover-Lift Left Hand

$

$

Not available

5

Gravely 03348351

Lever-Lift
(Superseded to 03348300)

$

$

Not available

6

Gravely 05521600

Bushing-Flange .750 x .873

$10.99

$

In Stock, only 2 left!

0

7

Gravely 03339051

Arm-Lift

$

$

Not available

8

Gravely 036038

Pin-Groove .250 x 1.25
(Superseded to 05804000)

$

$

Not available

9

Gravely 03653800

Pivot Pin

$

$

Not available

10

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$1.49

$

In Stock, Qty 16

0

11

Gravely 06707100

Pin-Cotter .12 x 1.0

$0.99

$

In Stock, Qty 10

0

12

Gravely 03352700

Link-Lift

$

$

Not available

13

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 03674600

Quadrant-Lift
(Superseded to 03360600)

$38.99

$

Usually ships in 4-12 days

0

15

Gravely 06436700

Washer-Flat-Steel .323 x .625 x .062
(Superseded to 06401002)

$1.49

$

Usually ships in 4-12 days

0

16

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 03666000

Pin-Lift
(Superseded to 03675000)

$

$

Not available

18

Gravely 08330300

Spring-Tension .048 x .44 x 2.12

$

$

Not available

19

Gravely 03654151

Lever-Detent

$

$

Not available

20

Gravely 06541300

Nut-Low Crown, Acorn 10-24

$3.99

$

In Stock, Qty 8

0

21

Gravely 03674351

Indicator - Deck Height

$

$

Not available

22

Gravely 102569

Screw-Set .25-20 x .25
(Superseded to 06000500)

$2.49

$

In Stock, only 1 left!

0

23

Gravely 06211800

Bolt-Round Head Square Neck .38-16 x .75
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 03351951

Bracket-Center Lift

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 044715

J-Clamp
(Superseded to 06916000)

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06711900

Pin-Hair External .12 x .31 x 2.37

$3.49

$

In Stock, only 2 left!

0

28

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

Usually ships in 4-12 days

0

29

Gravely 03486400

Adjuster Link

$44.99

$

In Stock, only 2 left!

0

30

Gravely 06535900

Nut-Hex-Jam .375-16
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 07030000

Eye Bolt

$8.49

$

In Stock, Qty 10

0

32

Gravely 03352951

Lever Center Lift

$11.99

$

Usually ships in 4-12 days

0

33

Gravely 051649

Spring-Gas Compression .315 x .75 x 10.00
(Superseded to 08326100)

$

$

Not available

34

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 5

0

36

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

37

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 05717600

Ring-Retaining-External .250 x .010

$0.99

$

In Stock, Qty 5

0
