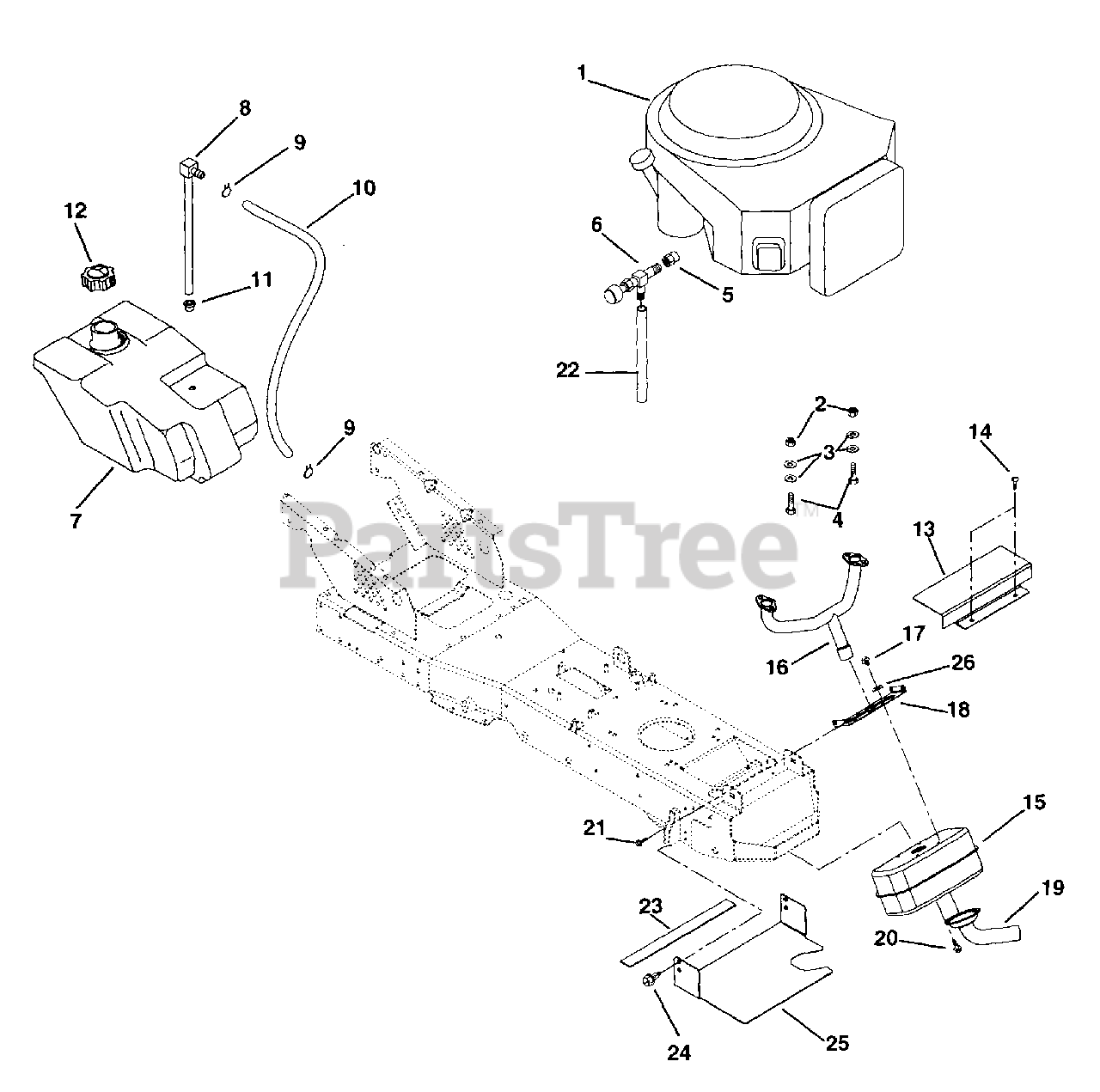

987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Engine, Fuel And Exhaust Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

Engine, Fuel And Exhaust Parts Diagram

  • Title

1

Gravely 08259300

22 HP Briggs & Stratton Engine

Note: (Model 107)

$

$

Not available

1

Gravely 08235300

18 HP V-Twin Briggs & Stratton Engine

Note: (Model 103)

$

$

Not available

2

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06439400

Washer-Flat-Steel .328 x .875 x .062

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 05952400

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

5

Gravely 035328

Adapter-Oil Drain
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 035329

Cock-Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

7

Gravely 03627500

Fuel Tank

$

$

Not available

8

Gravely 03606500

Tank Fitting

$30.99

$

In Stock, only 1 left!

0

9

Gravely 036312

Hose Clamp
(Superseded to 06939100)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 03659400

Hose-Fuel Line 48.00"

$13.99

$

Usually ships in 4-12 days

0

11

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 01538400

Fuel Cap

$14.99

$

In Stock, Qty 17

0

13

Gravely 03358351

Shield-Heat

$62.99

$

Usually ships in 4-12 days

0

14

Gravely 07411500

Screw-Tapping .312-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 03654300

Muffler-Exhaust

$157.99

$

In Stock, only 2 left!

0

16

Gravely 03673600

Pipe-Exhaust Intek Twin Briggs & Stratton

Note: (Model 107)

$90.99

$

Usually ships in 4-12 days

0

16

Gravely 03648700

Pipe-Exhaust Vanguard Twin

Note: (Model 103)

$

$

Not available

17

Gravely 07414600

Screw-Tapping 12-24 x .75

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 03648651

Bracket-Muffler

$

$

Not available

19

Gravely 03656351

Deflector-Exhaust

$

$

Not available

20

Gravely 07414500

Screw-Tapping-Slotted-Hex 8-32 x .38

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 07413400

Screw-Tapping-Hex .312-18 x .50

$

$

Not available

22

Gravely 01523400

Tube Oil Drain

$

$

Not available

23

Gravely 03658900

Heat Shield Fabric 1 x 10.75

$

$

Not available

24

Gravely 07413300

Screw-Tapping-Hex Washer Head 12-24 x .75
(Superseded to 07411900)

$2.49

$

In Stock, Qty 12

0

25

Gravely 03657851

Shield-Heat

$

$

Not available

26

Gravely 06442300

Washer-Flat .25 x.562 x .049

$1.99

$

In Stock, only 2 left!

0
