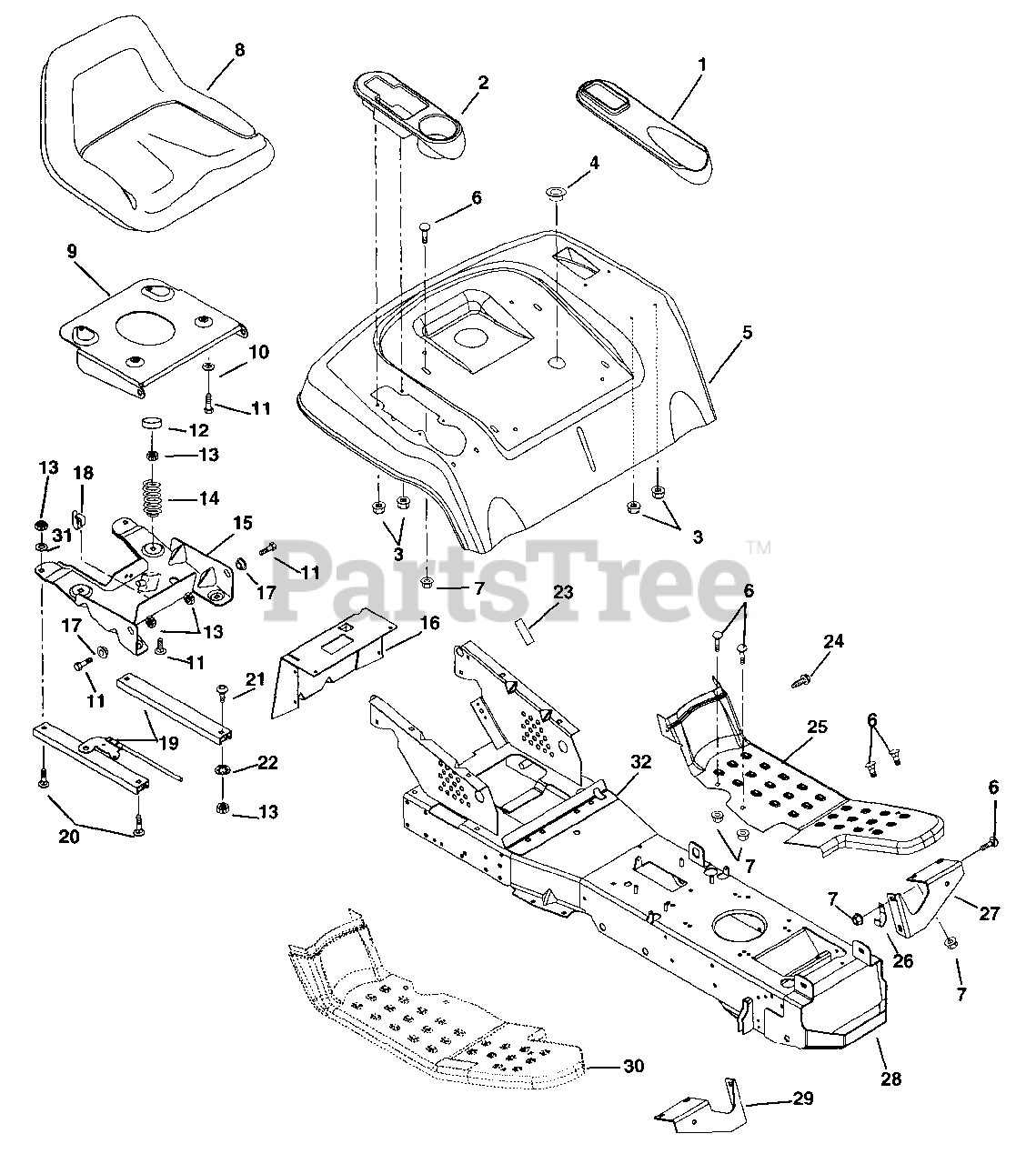

987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Frame And Rear Deck Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

Frame And Rear Deck Parts Diagram

  • Title

1

Gravely 03650300

INSERT- LIFT

$

$

Not available

2

Gravely 03652500

INSERT - BEVERAGE

$

$

Not available

3

Gravely 045334

NUT-SELF-THRDNG FITS.25 STUDPL
(Superseded to 07008000)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 07521000

SNAP BUSHING

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 03649453

REAR DECK

$56.99

$

Usually ships in 4-12 days

0

6

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 03670500

SEAT
(Superseded to 00366300)

$

$

Not available

9

Gravely 03650451

PLATE, SEAT PIVOT

$

$

Not available

10

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

11

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 07521600

TUBE CAP

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 08328200

SG-COMP .148X1.23X2.41 WLD87

$16.99

$

In Stock, only 2 left!

0

15

Gravely 03618151

SEAT BOX
(Superseded to 03618100)

$

$

Not available

16

Gravely 03363951

DRAWBAR

$39.99

$

Usually ships in 4-12 days

0

17

Gravely 05516200

BSHG-FLG .325X.465X.333X.685

$

$

Not available

18

Gravely 07008400

CLIP-HARNESS TINNERMAN

$

$

Not available

19

Gravely 03600800

SEAT SLIDES -(RAME TAK-3010-4)

$

$

Not available

20

Gravely 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 039062

SCR-CAP BTHD.31-18X.50 GR5 YZ
(Superseded to 07008100)

$1.49

$

Usually ships in 4-12 days

0

22

Gravely 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, Qty 8

0

23

Gravely 03645700

PAD, FOAM

$26.99

$

Usually ships in 4-12 days

0

24

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 03649353

FOOT REST - LEFT HAND

$14.99

$

Usually ships in 4-12 days

0

26

Gravely 036518

J-CLAMP
(Superseded to 06909400)

$3.99

$

In Stock, only 4 left!

0

27

Gravely 03649851

BRACE, FOOT REST LH

$

$

Not available

28

Gravely 03673551

FRAME, MAIN (WELDMENT)

$

$

Not available

29

Gravely 03649951

BRACE, FOOT REST RH

$

$

Not available

30

Gravely 03649253

FOOT REST RIGHT HAND

$14.99

$

Usually ships in 4-12 days

0

31

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 03674251

PLATE, REINFORCING

$

$

Not available
