987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Hanger Arm Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

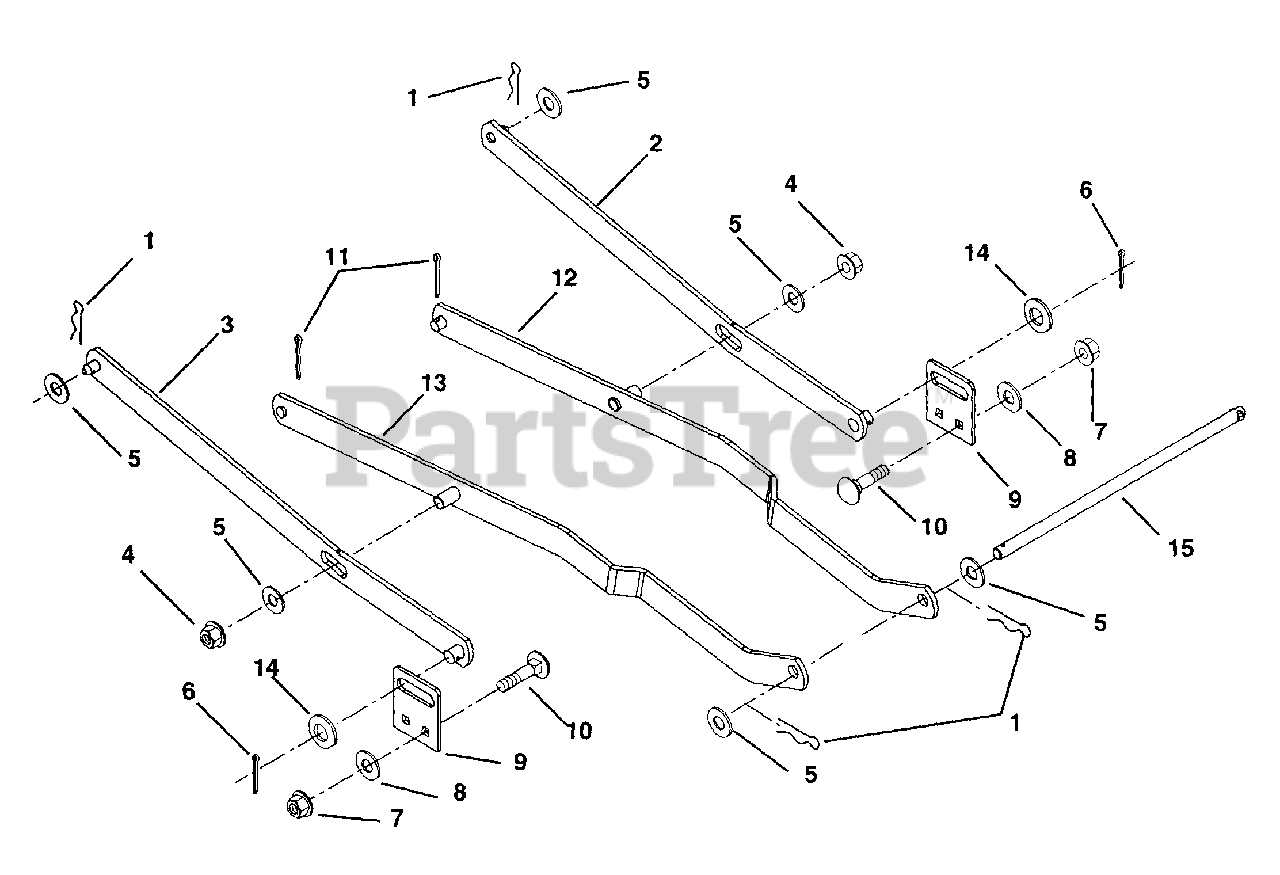

Hanger Arm Parts Diagram

  • Title

1

Gravely 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$3.49

$

In Stock, Qty 10

0

2

Gravely 03355251

ARM, LIFT-LEFT REAR

$

$

Not available

3

Gravely 03355351

ARM, LIFT-RIGHT REAR

$

$

Not available

4

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 1 left!

0

5

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 06701100

PIN-CTR .16X1.25 EXTPRSQCT YZ

$2.49

$

In Stock, only 1 left!

0

7

Gravely 06535500

NUT-LK-CTR .375-16 YWZC
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03355700

ADJUSTOR, PAN

$

$

Not available

10

Gravely 06215500

BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 06712600

PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 03355051

ARM, LIFT-RIGHT FORWARD

$

$

Not available

13

Gravely 03355151

ARM, LIFT-LEFT FORWARD

$

$

Not available

14

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 03363400

ROD-DECK HANGER, FRONT

$

$

Not available
