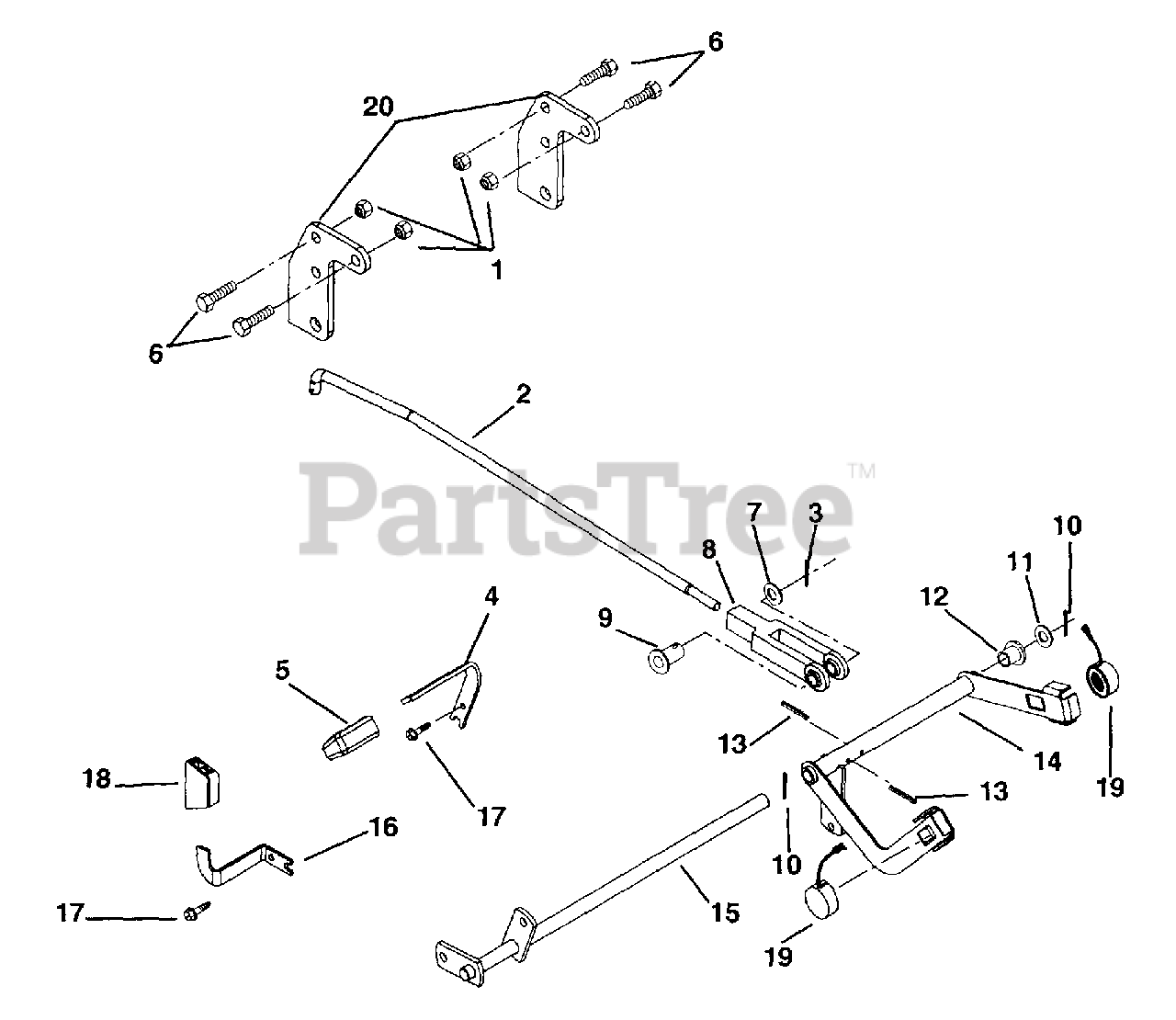

987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Hydro Drive Shift Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

Hydro Drive Shift Parts Diagram

  • Title

1

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 03362600

ROD, SHIFT

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

4

Gravely 03650651

PEDAL, FORWARD

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 07524000

COVER - PEDAL - FORWARD

$35.99

$

Usually ships in 4-12 days

0

6

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

7

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, only 3 left!

0

8

Gravely 034633

YOKE, .312-24 X 2.25
(Superseded to 07014700)

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$

$

Not available

10

Gravely 06707100

PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

11

Gravely 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, only 2 left!

0

14

Gravely 03363051

ASSEMBLY, SHIFT ARM

$13.99

$

Usually ships in 4-12 days

0

15

Gravely 03651800

SHAFT - PEDAL

$

$

Not available

16

Gravely 03650751

PEDAL-REVERSE

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 07524400

COVER - PEDAL - REVERSE

$

$

Not available

19

Gravely 03672400

MAGNET

$

$

Not available

20

Gravely 03364051

BRACKET, HANGER

$5.99

$

Usually ships in 4-12 days

0
