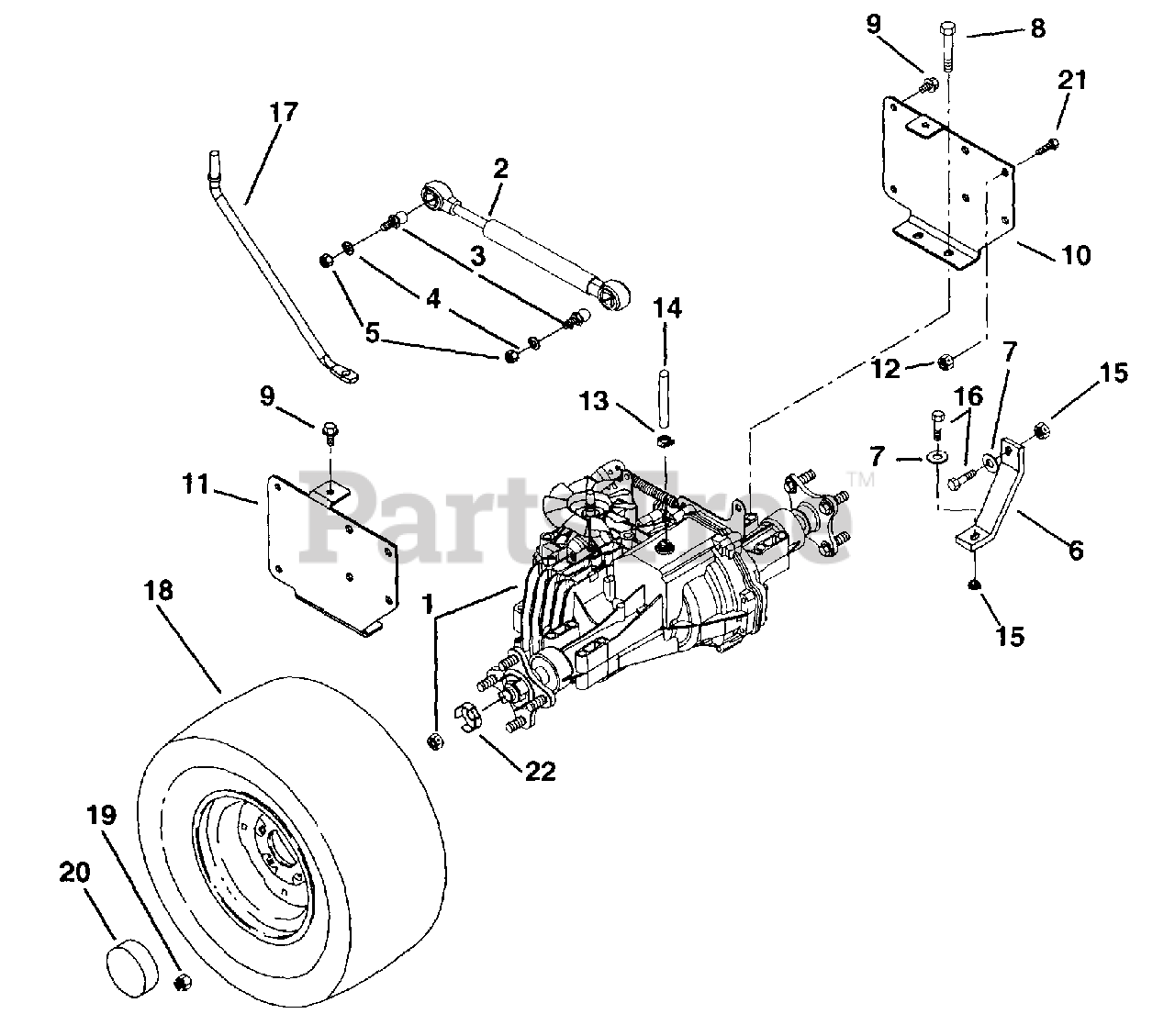

987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Hydrostatic Drive Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

Hydrostatic Drive Parts Diagram

  • Title

1

Gravely 03362900

TRANSAXLE-HYDR0-GEAR #319-3000

$1675.99

$

Usually ships in 4-12 days

0

2

Gravely 03652100

DAMPER - HYDRAULIC

$54.99

$

Usually ships in 4-12 days

0

3

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 13

0

4

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

5

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

6

Gravely 03362251

BRACE, LH TRANSAXLE

$

$

Not available

7

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 13

0

9

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 03362151

MOUNT, AXLE LH
(Superseded to 03695900)

$

$

Not available

11

Gravely 03362051

MOUNT, AXLE RH
(Superseded to 03695800)

$

$

Not available

12

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03449700

CLAMP-HOSE WRM .38/.62X.50 #10

$

$

Not available

14

Gravely 03363700

HOSE, VENT

$

$

Not available

15

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 03363300

ROD-DUMP VALVE

$

$

Not available

18

Gravely 07149700

TIRE/WHEEL ASSEMBLY 10.50X23

$

$

Not available

19

Gravely 039687

NUT-LUG .437-20 YWZC
(Superseded to 06511400)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 039515

REAR HUB CAP
(Superseded to 07508800)

$

$

Not available

21

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

22

Gravely 036277

SPINDLE CUP
(Superseded to 03516900)

$19.99

$

In Stock, only 2 left!

0
