987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Mower Pan And Roller Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

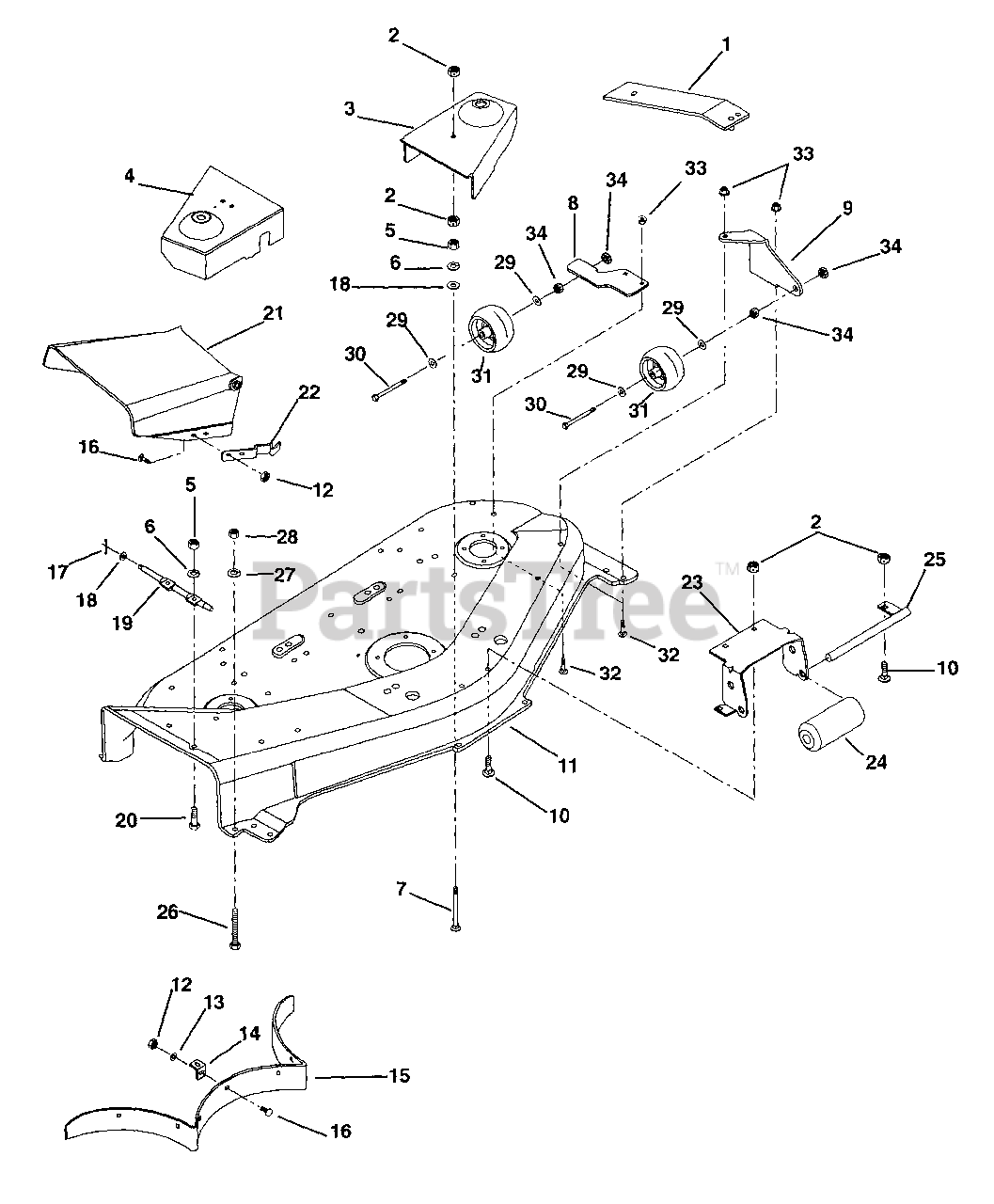

Mower Pan And Roller Parts Diagram

  • Title

1

Gravely 03038053

Ramp
(Superseded to 03038000)

$

$

Not available

2

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03096253

Cover-Right Hand Belt

$14.99

$

Usually ships in 4-12 days

0

4

Gravely 03095953

Cover-Left-Hand Belt

$

$

Not available

5

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

6

Gravely 06307400

Washer-Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

7

Gravely 039745

Bolt-Round Head Square Neck .31-18 x 3.25
(Superseded to 06200411)

$5.99

$

In Stock, only 2 left!

0

8

Gravely 01534153

Bracket-Left Rear

$

$

Not available

9

Gravely 01533853

Bracket-Left Front
(Superseded to 01533851)

$39.99

$

Usually ships in 4-12 days

0

10

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 53405600

Mower Pan Head w/Decals
(Superseded to 51503400)

$

$

Not available

12

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

14

Gravely 03434351

Baffle Tab

$

$

Not available

15

Gravely 03434251

Baffle
(Superseded to 03434200)

$83.99

$

Usually ships in 4-12 days

0

16

Gravely 06214300

Bolt-Round Head Square Neck .25-20x.50
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

18

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 03405800

Hinge Pin

$46.99

$

Usually ships in 4-12 days

0

20

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

21

Gravely 03034953

Chute Extension

$

$

Not available

22

Gravely 00318553

Flat Spring

$

$

Not available

23

Gravely 03435153

Bracket-Roller

$

$

Not available

24

Gravely 039563

Roller
(Superseded to 03114100)

$22.99

$

In Stock, only 2 left!

0

25

Gravely 039601

Roller Shaft
(Superseded to 03435200)

$51.99

$

Usually ships in 4-12 days

0

26

Gravely 05958400

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

27

Gravely 06306700

Washer-Lock .375 x .130

$3.99

$

In Stock, only 1 left!

0

28

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

29

Gravely 06443300

Washer-Flat-Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 19

0

30

Gravely 05962300

Bolt-Hex .50-13 x 4.50 Grade 5
(Superseded to 05901932)

$5.99

$

In Stock, Qty 12

0

31

Gravely 03471700

Wheel 5 x 3
(Superseded to 03905600)

$15.99

$

In Stock, Qty 17

0

32

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

33

Gravely 06530400

Nut-Locking-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 3 left!

0

34

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0
