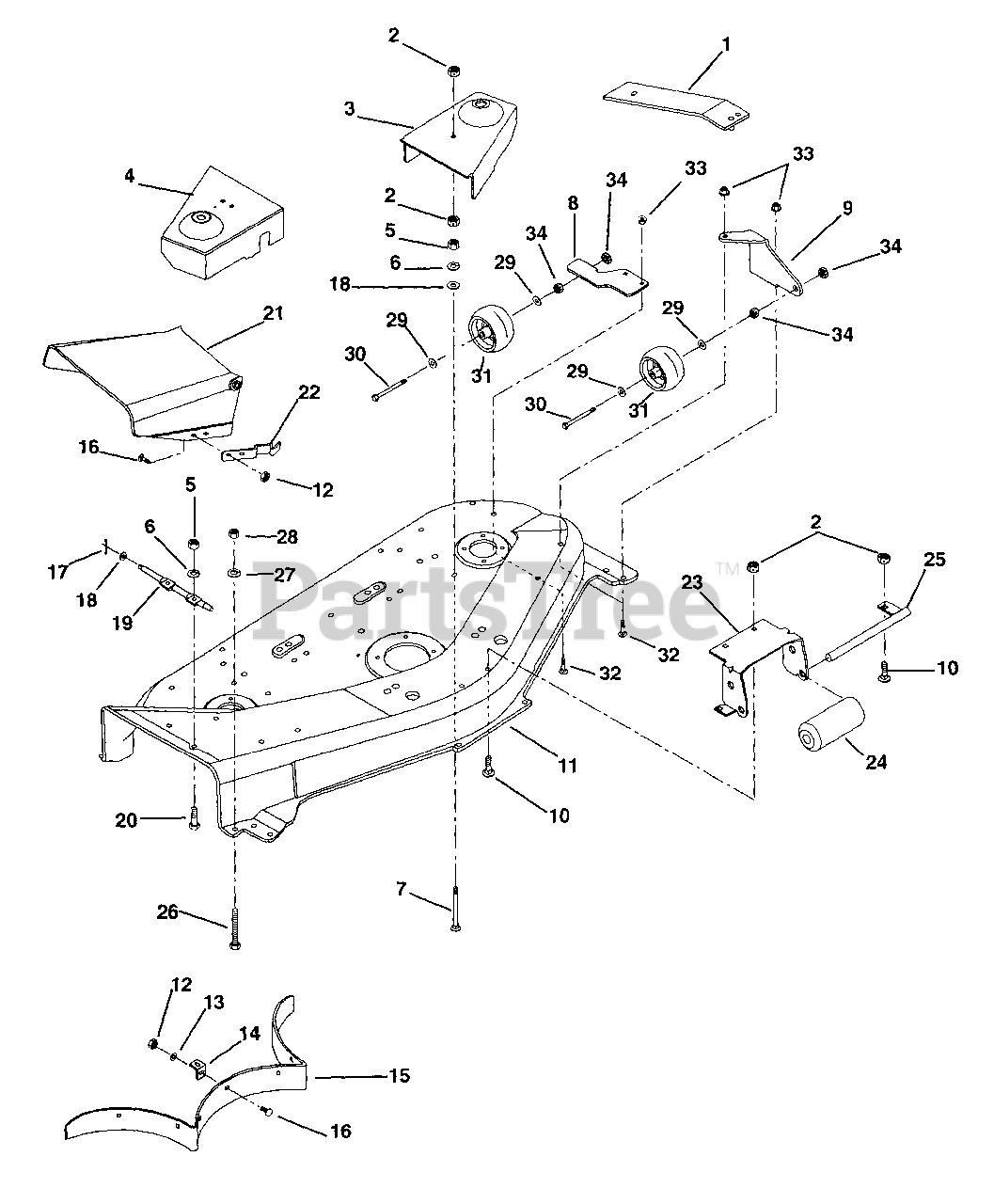

987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Mower Pan And Roller Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

Mower Pan And Roller Parts Diagram

  • Title

1

Gravely 03038053

RAMP
(Superseded to 03038000)

$

$

Not available

2

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 03096253

COVER, RIGHT HAND

$14.99

$

Usually ships in 4-12 days

0

4

Gravely 03095953

COVER, LEFT HAND

$

$

Not available

5

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

6

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

7

Gravely 039745

BLT-RDHDSQNK .31-18X3.50 G5YZ
(Superseded to 06200411)

$6.99

$

In Stock, only 2 left!

0

8

Gravely 01534153

BRACKET, LEFT REAR - RED

$

$

Not available

9

Gravely 01533853

BRACKET, LEFT FRONT - RED
(Superseded to 01533851)

$39.99

$

Usually ships in 4-12 days

0

10

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 53405600

MOWER PAN W/ DECALS (G)-RED
(Superseded to 51503400)

$

$

Not available

12

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 03434351

BAFFLE TAB

$

$

Not available

15

Gravely 03434251

BAFFLE
(Superseded to 03434200)

$85.99

$

In Stock, only 2 left!

0

16

Gravely 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

$1.99

$

In Stock, only 3 left!

0

17

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

18

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 03405800

HINGE PIN

$48.99

$

Usually ships in 4-12 days

0

20

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 03034953

CHUTE EXTENSION

$

$

Not available

22

Gravely 00318553

FLAT SPRING - RED

$

$

Not available

23

Gravely 03435153

BRACKET, ROLLER

$

$

Not available

24

Gravely 039563

ROLLER
(Superseded to 03114100)

$23.99

$

In Stock, Qty 20+

0

25

Gravely 039601

ROLLER SHAFT
(Superseded to 03435200)

$52.99

$

Usually ships in 4-12 days

0

26

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

27

Gravely 06306700

WSHR-LK .375X.130 YWZC

$3.99

$

In Stock, only 1 left!

0

28

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

30

Gravely 05962300

BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$6.99

$

In Stock, Qty 11

0

31

Gravely 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$17.99

$

In Stock, Qty 20+

0

32

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

33

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0
