987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Mower Spindle Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

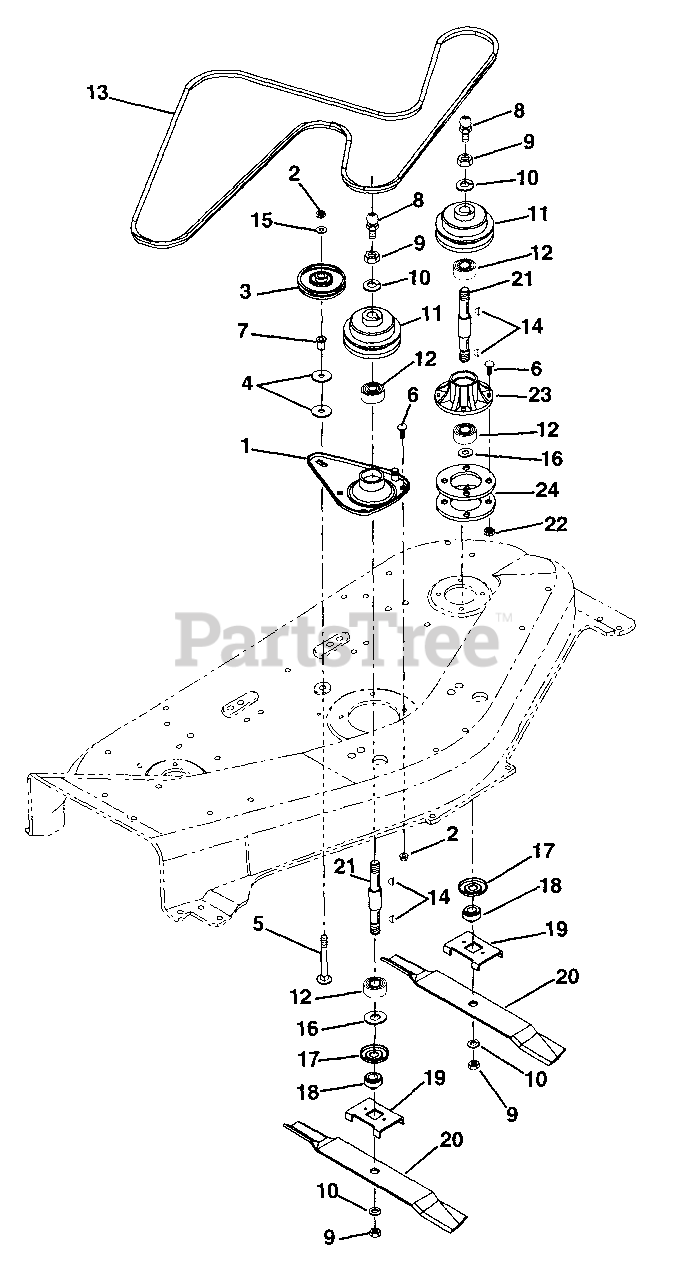

Mower Spindle Parts Diagram

  • Title

1

Gravely 03354651

HOUSING, SPINDLE
(Superseded to 03354600)

$

$

Not available

2

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 00542700

IDLER, PLASTIC, 4.00 X .50 ID

$38.99

$

In Stock, Qty 6

0

4

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0

5

Gravely 06220500

BLT-RDHDSQNK .38-16X2.00 G2YZ
(Superseded to 06224300)

$3.99

$

In Stock, Qty 11

0

6

Gravely 06219600

BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

7

Gravely 036849

SPACER -FLANGED .390X.500X.781
(Superseded to 03114500)

$10.99

$

In Stock, Qty 12

0

8

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

9

Gravely 06537700

NUT-JAM .75-10 YWZC

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06310300

WSHR-LK .75X.188 REG YWZC

$1.99

$

In Stock, Qty 16

0

11

Gravely 03401800

SHEAVE

$191.99

$

Usually ships in 4-12 days

0

12

Gravely 035925

BRG-BALL .750X1.781X.61
(Superseded to 05412000)

$15.99

$

In Stock, Qty 20+

0

13

Gravely 07227400

V-BELT, HA-RAW EDGE

$68.99

$

Usually ships in 4-12 days

0

14

Gravely 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.99

$

In Stock, Qty 12

0

15

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06444100

WSHR-FL-STL .754X1.000X.032 YZ

$2.99

$

In Stock, Qty 9

0

17

Gravely 00341900

BEARING SLINGER

$23.99

$

In Stock, Qty 7

0

18

Gravely 039559

RETAINER HUB
(Superseded to 03037500)

$73.99

$

In Stock, only 1 left!

0

19

Gravely 03485500

BLADE TRAY 48

$21.99

$

Usually ships in 4-12 days

0

20

Gravely 03123751

BLADE
(Superseded to 03123700)

$23.99

$

In Stock, Qty 13

0

21

Gravely 039552

SPINDLE SHAFT W/ZERK
(Superseded to 53115100)

$75.99

$

In Stock, only 2 left!

0

22

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 039595

SPINDLE HOUSING
(Superseded to 03433500)

$

$

Not available

24

Gravely 039596

SPACER, SPINDLE
(Superseded to 03433600)

$

$

Not available
