987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Mower Spindle Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

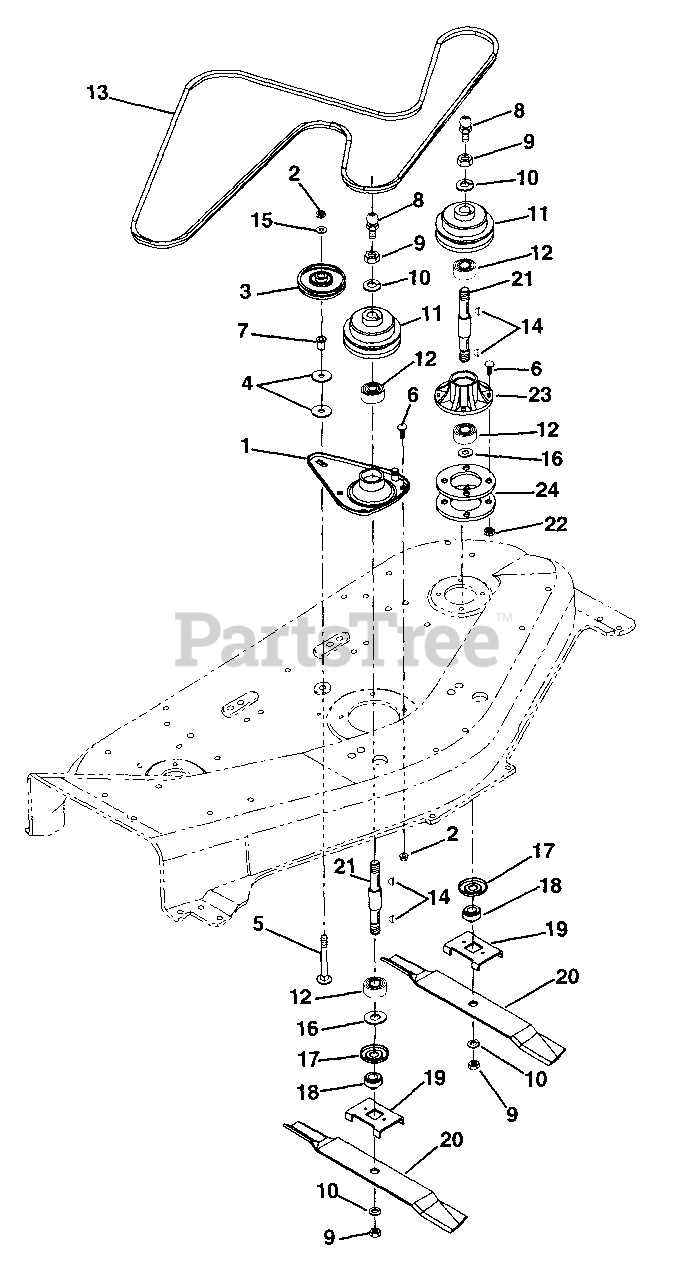

Mower Spindle Parts Diagram

  • Title

1

Gravely 03354651

Housing Spindle
(Superseded to 03354600)

$64.73

$

Usually ships in 4-12 days

0

2

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 00542700

Idler-Plastic 4.75 OD x .50 ID

$37.99

$

In Stock, only 2 left!

0

4

Gravely 06441700

Washer-Flat-Steel .390 x 1.50 x .125

$3.99

$

In Stock, only 3 left!

0

5

Gravely 06220500

Bolt-Round Head Square Neck .38-16 x 2.00
(Superseded to 06224300)

$3.99

$

In Stock, Qty 7

0

6

Gravely 06219600

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 036849

Spacer-Flanged .390 x .500 x .781 x .875
(Superseded to 03114500)

$9.99

$

In Stock, only 4 left!

0

8

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

9

Gravely 06537700

Nut-Jam .75-10

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06310300

Washer-Locking .75 x .188

$1.49

$

In Stock, Qty 10

0

11

Gravely 03401800

Sheave

$187.99

$

Usually ships in 4-12 days

0

12

Gravely 035925

Bearing-Ball .750 x 1.781 x .61
(Superseded to 05412000)

$13.99

$

In Stock, Qty 20+

0

13

Gravely 07227400

V-Belt 48" Pan

$62.99

$

Usually ships in 4-12 days

0

14

Gravely 06601400

Key-Woodruff .188 x .62 x .25

$2.49

$

In Stock, Qty 10

0

15

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 16

0

16

Gravely 06444100

Washer-Flat-Steel .754 x 1.000 x .032

$2.99

$

In Stock, Qty 17

0

17

Gravely 00341900

Bearing Slinger

$20.99

$

In Stock, Qty 5

0

18

Gravely 039559

Retainer Hub
(Superseded to 03037500)

$71.99

$

In Stock, only 2 left!

0

19

Gravely 03485500

Blade Tray 48

$20.99

$

In Stock, only 2 left!

0

20

Gravely 03123751

Blade
(Superseded to 03123700)

$22.99

$

In Stock, only 1 left!

0

21

Gravely 039552

Spindle Shaft w/Zerk
(Superseded to 53115100)

$74.99

$

In Stock, only 1 left!

0

22

Gravely 06537200

Nut-Jam-Locking .38-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 039595

Spindle Housing
(Superseded to 03433500)

$

$

Not available

24

Gravely 039596

Spacer-Spindle
(Superseded to 03433600)

$

$

Not available
