987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Mower Spindle (Continued) Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

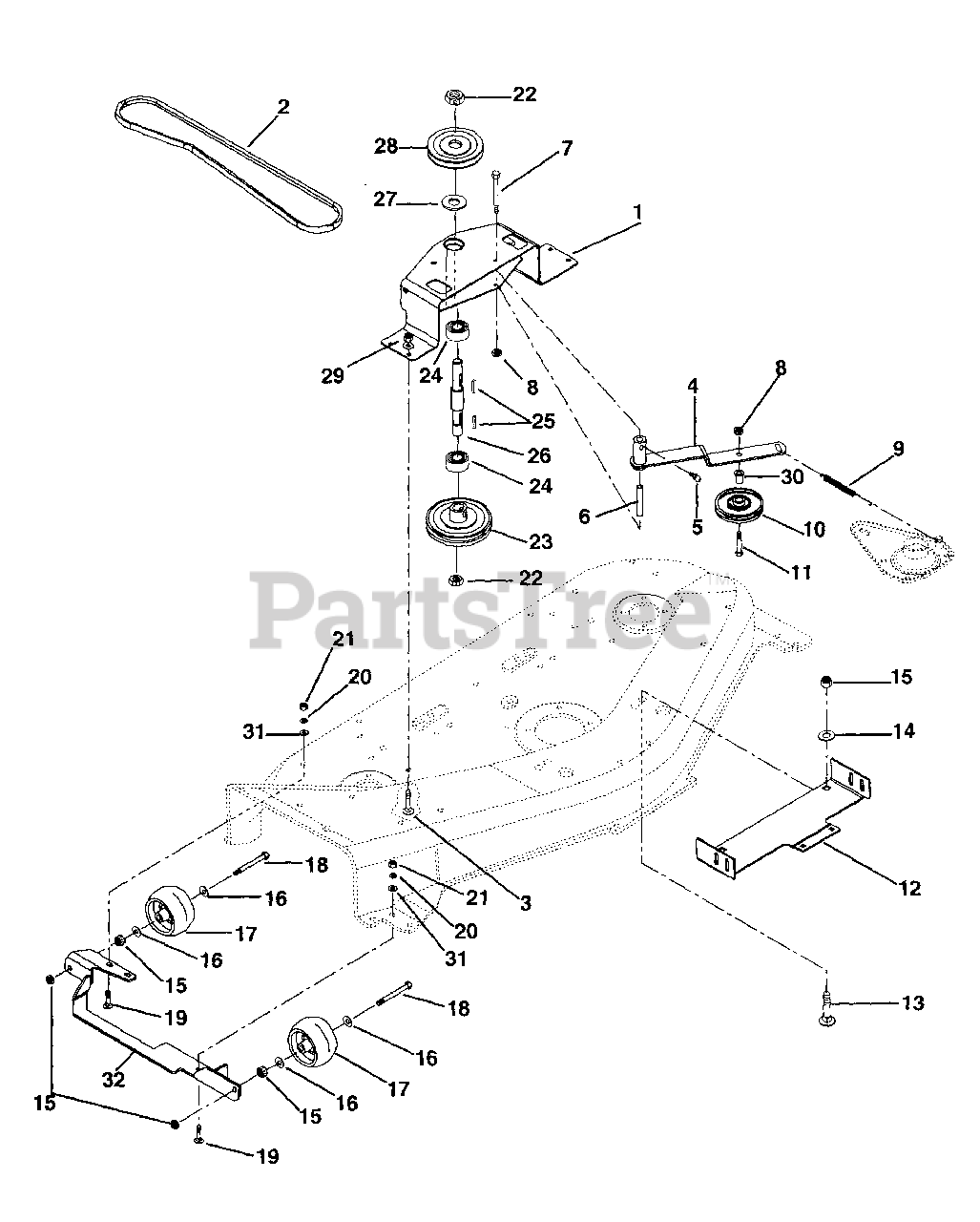

Mower Spindle (Continued) Parts Diagram

  • Title

1

Gravely 03362451

HOUSING-JACKSHAFT

$45.99

$

Usually ships in 4-12 days

0

2

Gravely 07227300

V-BELT, 5L-RAW EDGE

$51.99

$

Usually ships in 4-12 days

0

3

Gravely 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 03356153

ARM, IDLER

$

$

Not available

5

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

6

Gravely 03356200

SPACER .334X.500X2.73

$

$

Not available

7

Gravely 05948000

BLT-HEX .31-18X3.50 GR5 YWZC

$2.99

$

In Stock, only 2 left!

0

8

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 083290

SG-TENS .113X.812X7.00
(Superseded to 08329000)

$21.99

$

In Stock, only 4 left!

0

10

Gravely 00542700

IDLER, PLASTIC, 4.00 X .50 ID

$38.99

$

In Stock, Qty 6

0

11

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

12

Gravely 03358753

BRACE, FRONT

$

$

Not available

13

Gravely 06221200

BLT-RDHDSQNK .50-13X.75 G5YZ

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, Qty 9

0

15

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

16

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

17

Gravely 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$17.99

$

In Stock, Qty 20+

0

18

Gravely 05962300

BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$6.99

$

In Stock, Qty 11

0

19

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

21

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

22

Gravely 06535400

NUT-LK-CTR .75-10 YWZC

$6.49

$

Usually ships in 4-12 days

0

23

Gravely 07312900

PLY-V 6.00 X .75 W/KEY

$70.99

$

Usually ships in 4-12 days

0

24

Gravely 035925

BRG-BALL .750X1.781X.61
(Superseded to 05412000)

$15.99

$

In Stock, Qty 20+

0

25

Gravely 026273

KEY-SQ .187 X .50 X .187
(Superseded to 06606000)

$10.99

$

In Stock, only 1 left!

0

26

Gravely 03355400

JACKSHAFT

$

$

Not available

27

Gravely 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, Qty 20+

0

28

Gravely 050248

SHEAVE
(Superseded to 03454400)

$

$

Not available

29

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 036849

SPACER -FLANGED .390X.500X.781
(Superseded to 03114500)

$10.99

$

In Stock, Qty 12

0

31

Gravely 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 01533953

MOUNT - ROLLER
(Superseded to 01533900)

$

$

Not available

33

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
