987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Steering Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

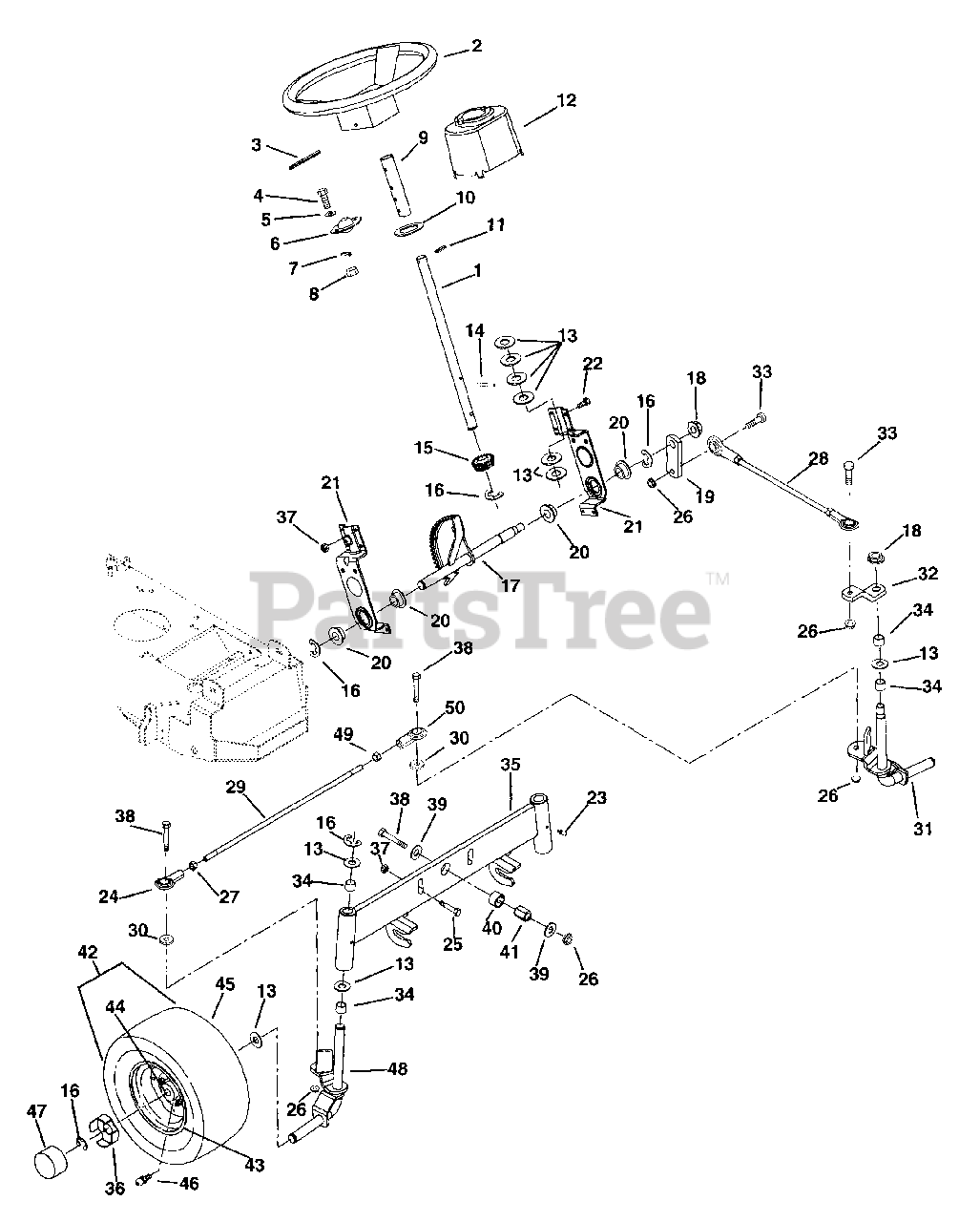

Steering Parts Diagram

  • Title

1

Gravely 03351700

COLUMN, STEERING

$127.99

$

Usually ships in 4-12 days

0

2

Gravely 03671200

STEERING WHEEL

$

$

Not available

3

Gravely 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 5

0

4

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 036138

BRG-FLG .751X2 HOLESX.81
(Superseded to 05402500)

$23.99

$

Usually ships in 4-12 days

0

7

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

8

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

9

Gravely 03603100

TUBE .754 X .999 X 5.00

$

$

Not available

10

Gravely 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$1.49

$

In Stock, only 3 left!

0

11

Gravely 412281

PIN-ROLL .250X1.000
(Superseded to 05808400)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 03649600

CONE- STEERING COLUMN

$

$

Not available

13

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

14

Gravely 036144

PIN .249X1.125 DRIV-LOK SP
(Superseded to 02913300)

$18.99

$

Usually ships in 4-12 days

0

15

Gravely 036145

PINION GEAR-STEERING
(Superseded to 02902100)

$65.99

$

In Stock, only 3 left!

0

16

Gravely 036278

RG-RTNG-EXT .750X.050
(Superseded to 05707400)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 03669600

GEAR, STEERING

$158.99

$

Usually ships in 4-12 days

0

18

Gravely 06538000

NUT-LK .563-18 GR5 YWZC

$

$

Not available

19

Gravely 03351800

ARM, STEERING ROD

$

$

Not available

20

Gravely 036142

BSHG-FLG .750X1.093X.625X1.375
(Superseded to 05508000)

$19.99

$

Usually ships in 4-12 days

0

21

Gravely 03672951

BRACKET-STEERING GEAR

$47.99

$

Usually ships in 4-12 days

0

22

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

23

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

24

Gravely 044753

ROD END, .38 RH
(Superseded to 03563100)

$17.99

$

In Stock, only 3 left!

0

25

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

28

Gravely 03668600

LINK, DRAG

$

$

Not available

29

Gravely 03360901

ROD, TIE

$

$

Not available

30

Gravely 05522100

BSHG-SLV .377X.624X.370

$5.49

$

Usually ships in 4-12 days

0

31

Gravely 03339400

SPINDLE - LH

$

$

Not available

32

Gravely 03664351

ARM, STEERING SPINDLE

$

$

Not available

33

Gravely 039451

BLT-BTHD .38-16X1.25 GR5
(Superseded to 07006300)

$2.99

$

Usually ships in 4-12 days

0

34

Gravely 05505700

BSHG-SLV .750X.814X .750 BRZ

$17.99

$

In Stock, only 4 left!

0

35

Gravely 03353051

AXLE, FRONT

$

$

Not available

36

Gravely 036277

SPINDLE CUP
(Superseded to 03516900)

$19.99

$

In Stock, only 2 left!

0

37

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

40

Gravely 05522000

BSHG-SLV .626X1.000X.524 HEX

$

$

Not available

41

Gravely 05522700

BSHG-SLV .377X.623X.775 HEX

$15.99

$

Usually ships in 4-12 days

0

42

Gravely 07136500

T/WHL ASSY 15X6.00-6
(Superseded to 07149400)

Note: (Contains: one ea. of Items 43, 44 & 45)

$148.99

$

In Stock, only 1 left!

0

43

Gravely 07136600

RIM
(Superseded to 07149500)

$

$

Not available

44

Gravely 05520700

BSHG .75 BORE
(Superseded to 05434900)

$15.99

$

In Stock, Qty 20+

0

45

Gravely 07109900

TIRE

$

$

Not available

46

Gravely 07047000

FTG- LUBE .25-28X.97

$

$

Not available

47

Gravely 036202

HUB CAP
(Superseded to 00337700)

$2.99

$

In Stock, Qty 20+

0

48

Gravely 03344000

SPINDLE - RH

$171.99

$

Usually ships in 4-12 days

0

49

Gravely 06537400

NUT-JAM .375-24 LH YWZC
(Superseded to 06500924)

$3.99

$

Usually ships in 4-12 days

0

50

Gravely 03668700

END, ROD-.38 LH

$16.99

$

Usually ships in 4-12 days

0
