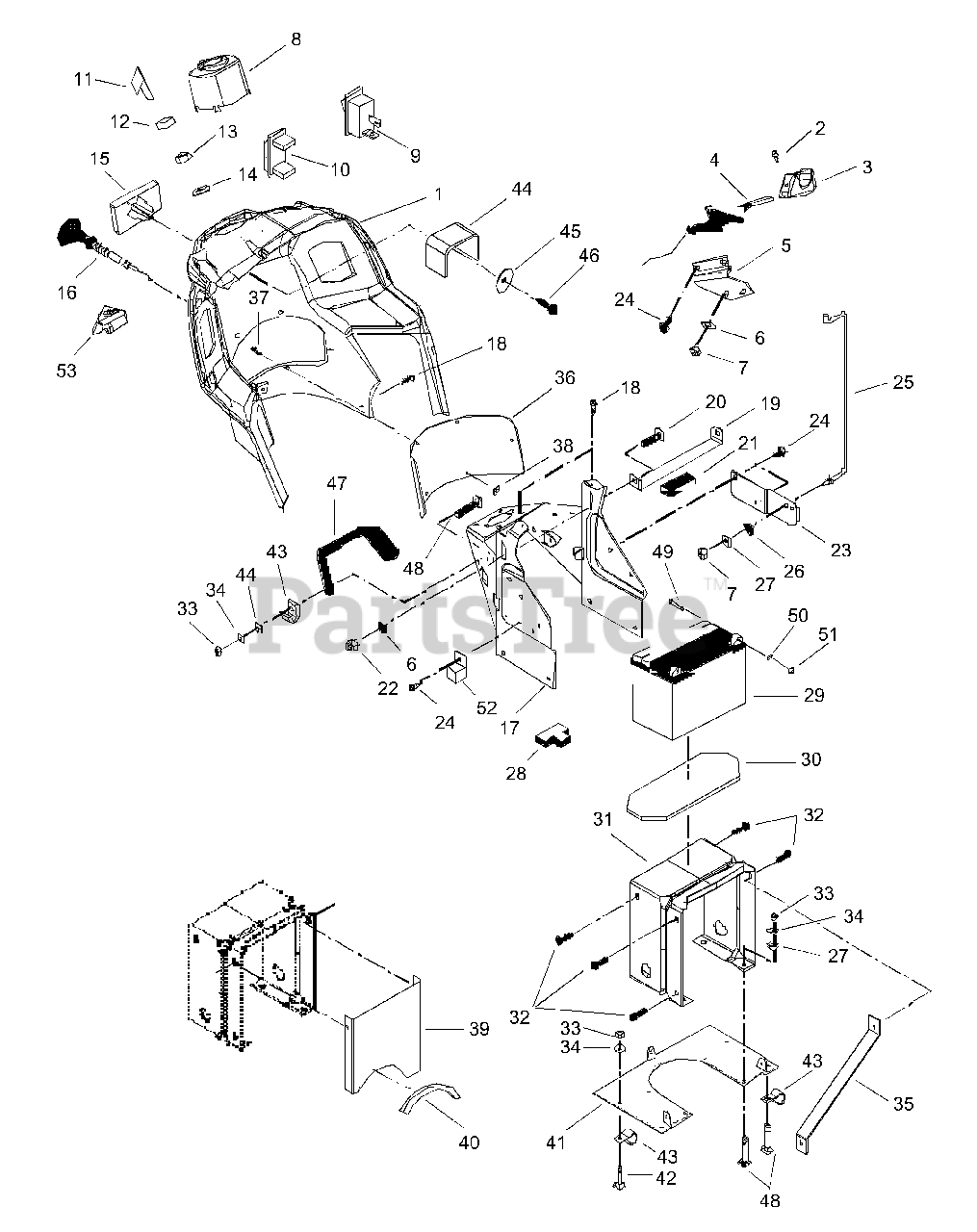

987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Dash & Support Parts Diagram

60" Garden Tractor, 22hp Kohler

Dash & Support Parts Diagram

  • Title

1

Gravely 03091300

DASH

$840.99

$

Usually ships in 4-12 days

0

2

Gravely 06004600

SCR-SET 10-24X.38 UNC-3A

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 03653253

KNOB, THROTTLE

$

$

Not available

4

Gravely 06931300

THROTTLE CONTROL-B&S
(Superseded to 06940700)

$50.99

$

Usually ships in 4-12 days

0

5

Gravely 03358200

BRACE-THROTTLE CONTROL

$

$

Not available

6

Gravely 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 03091200

STEERING CONE

$

$

Not available

9

Gravely 03656800

SWITCH - LIGHT

$

$

Not available

10

Gravely 03657000

COVER - SWITCH
(Superseded to 00539300)

$10.99

$

Usually ships in 4-12 days

0

11

Gravely 045488

KEY -W/CAP
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

12

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

13

Gravely 045489

NUT- PANEL .562-24 GRECO
(Superseded to 06517400)

$21.99

$

In Stock, Qty 6

0

14

Gravely 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 03092200

KNOB - FILLER

$

$

Not available

16

Gravely 051537

CHOKE CABLE
(Superseded to 06918300)

$

$

Not available

17

Gravely 03357600

SUPPORT - DASH - TOP

$

$

Not available

18

Gravely 07406900

SCR-TAP 10-24X.484 HWH TR

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 03651400

HOLDDOWN - BATTERY

$35.99

$

Usually ships in 4-12 days

0

20

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 03645700

PAD, FOAM

$26.99

$

Usually ships in 4-12 days

0

22

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

23

Gravely 03656700

MOUNT - PROP ROD

$

$

Not available

24

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 03656600

ROD - HOOD PROP

$

$

Not available

26

Gravely 038843

WAVE WASHER .390X.655X.110
(Superseded to 01320200)

$3.99

$

In Stock, only 2 left!

0

27

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 039619

INSULATOR
(Superseded to 07505700)

$10.99

$

In Stock, only 2 left!

0

29

Gravely 03055700

BATTERY
(Superseded to 53123300)

$

$

Not available

30

Gravely 02530700

RUBBER PAD

$

$

Not available

31

Gravely 03651200

SUPPORT DASH BASE

$

$

Not available

32

Gravely 07413400

SCR-TAP .312-18X.50 HWH TR BL

$

$

Not available

33

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

34

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

35

Gravely 03651300

BRACE

$

$

Not available

36

Gravely 03091500

SCREEN - DASH

$14.99

$

Usually ships in 4-12 days

0

37

Gravely 07031200

RETAINER, RADIATOR SHROUD

$5.99

$

Usually ships in 4-12 days

0

38

Gravely 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

39

Gravely 03092900

SHIELD, AIR

$

$

Not available

40

Gravely 00928700

TAPE-ADHESIVE BACKED FOAM

$

$

Not available

41

Gravely 03093600

SUPPORT, DASH BASE (G.S. ONLY)

$13.99

$

Usually ships in 4-12 days

0

42

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

43

Gravely 036518

J-CLAMP
(Superseded to 06909400)

$3.99

$

In Stock, only 4 left!

0

44

Gravely 03092300

SPACER-CHANNEL

$5.99

$

Usually ships in 4-12 days

0

45

Gravely 06440600

WSHR-FL-STL .281X1.250X.048 BL
(Superseded to 06403700)

$1.99

$

Usually ships in 4-12 days

0

46

Gravely 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 03094800

BRACE

$5.99

$

Usually ships in 4-12 days

0

48

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

49

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

50

Gravely 06308000

WSHR-LK .250X.077 HVY YWZC

$0.99

$

In Stock, Qty 7

0

51

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

52

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

53

Gravely 53606900

PTO SWITCH ASSEMBLY
(Superseded to 00355900)

$85.99

$

In Stock, Qty 5

0
