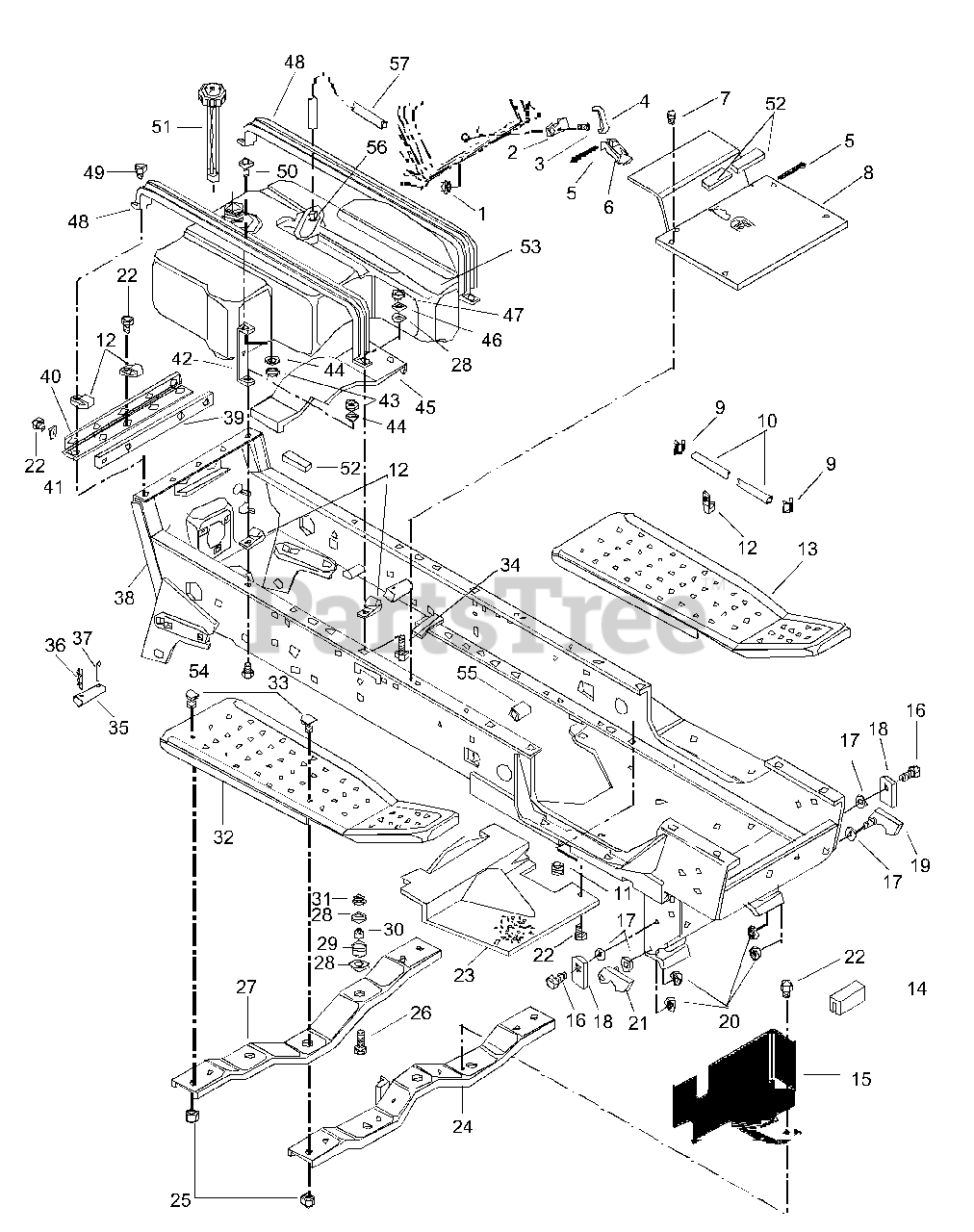

987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Frame & Fuel Parts Diagram

60" Garden Tractor, 22hp Kohler

Frame & Fuel Parts Diagram

  • Title

1

Gravely 06530600

NUT-LK-DUAL FACE 10-24 YWZC

$0.99

$

In Stock, Qty 10

0

2

Gravely 03030700

CATCH

$

$

Not available

3

Gravely 06117600

SCR-MCH 10-24X.50 SLRH YWZC

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 039073

SPRING - DECK LATCH
(Superseded to 03030900)

$

$

Not available

5

Gravely 06712600

PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 039074

LEVER - DECK LATCH
(Superseded to 03030800)

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03090900

PLATE - FLOOR

$

$

Not available

9

Gravely 036312

CLAMP-HOSE WIRE .490/.510X.116
(Superseded to 06939100)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 03072500

FUEL LINE 1/4 X 67"

$

$

Not available

11

Gravely 07528400

HOLE PLUG 1.375

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 036518

J-CLAMP
(Superseded to 06909400)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 039077

L.H. RUNNING BOARD
(Superseded to 03012500)

$

$

Not available

14

Gravely 03093100

TRIM

$

$

Not available

15

Gravely 03092800

SCREEN

$9.49

$

Usually ships in 4-12 days

0

16

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 039078

SPRING WASHER
(Superseded to 02902400)

$19.99

$

Usually ships in 4-12 days

0

18

Gravely 039079

LOCK STOP
(Superseded to 02901300)

$

$

Not available

19

Gravely 03055500

LATCH LH

$63.99

$

Usually ships in 4-12 days

0

20

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 03055400

LATCH RH

$

$

Not available

22

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 03075000

SCREEN

$

$

Not available

24

Gravely 039083

FRONT CHANNEL
(Superseded to 03012800)

$

$

Not available

25

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

27

Gravely 039084

REAR CHANNEL
(Superseded to 03012700)

$11.99

$

Usually ships in 4-12 days

0

28

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 039048

GROMMET .438ID X .688 OD
(Superseded to 07506600)

$

$

Not available

30

Gravely 039085

SPACER .318X.430X.375
(Superseded to 03101900)

$

$

Not available

31

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 039086

R.H. RUNNING BOARD
(Superseded to 03012600)

$34.99

$

Usually ships in 4-12 days

0

33

Gravely 06206700

BLT-RDHDSQNK .31-18X.75 PL BL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

34

Gravely 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.99

$

In Stock, Qty 13

0

35

Gravely 039087

PIN
(Superseded to 03101200)

$23.99

$

Usually ships in 4-12 days

0

36

Gravely 06713200

PIN-HAIR-INT .15X.43X2.75 YWZC
(Superseded to 06714000)

$3.49

$

In Stock, only 1 left!

0

37

Gravely 06707100

PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

38

Gravely 03096800

FRAME, MAIN

$

$

Not available

39

Gravely 050162

STRAP
(Superseded to 03457400)

$5.99

$

Usually ships in 4-12 days

0

40

Gravely 039090

HINGE-2" X 12.88 YWZC
(Superseded to 03102800)

$

$

Not available

41

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

42

Gravely 039091

SUPPORT
(Superseded to 03105500)

$

$

Not available

43

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

44

Gravely 06308000

WSHR-LK .250X.077 HVY YWZC

$0.99

$

In Stock, Qty 7

0

45

Gravely 039092

GUARD
(Superseded to 03016100)

$

$

Not available

46

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

47

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

48

Gravely 039093

CHANNEL
(Superseded to 03151700)

$

$

Not available

49

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 14

0

50

Gravely 041169

SCR-SKH .25-20X.75 TSPH YWZC
(Superseded to 05967300)

$

$

Not available

51

Gravely 039095

GAS GAUGE & CAP
(Superseded to 03181900)

$36.99

$

In Stock, only 2 left!

0

52

Gravely 036515

FOAM TAPE
(Superseded to 03076600)

$

$

Not available

53

Gravely 039096

GAS TANK ASSEMBLY
(Superseded to 03064400)

$

$

Not available

54

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

55

Gravely 05505700

BSHG-SLV .750X.814X .750 BRZ

$17.99

$

In Stock, only 4 left!

0

56

Gravely 03018700

FITTING - GAS TANK

$

$

Not available

57

Gravely 03026900

GAS TANK FUEL LINE

$

$

Not available
