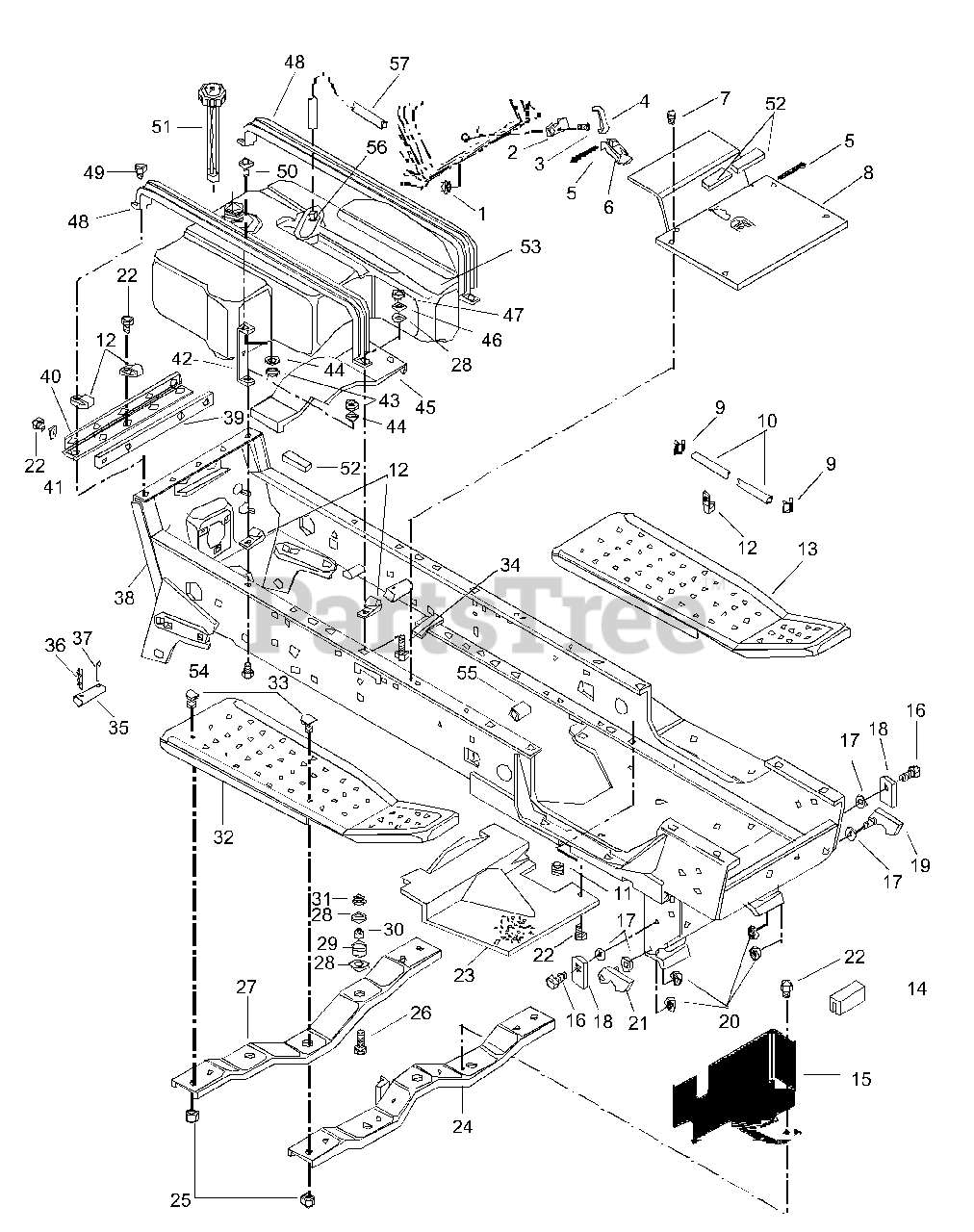

987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Frame & Fuel Parts Diagram

60" Garden Tractor, 22hp Kohler

Frame & Fuel Parts Diagram

  • Title

1

Gravely 06530600

Nut-Locking Dual Face 10-24

$0.99

$

In Stock, Qty 20+

0

2

Gravely 03030700

Catch

$

$

Not available

3

Gravely 06117600

Screw-Machine 10-24 x .50

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 039073

Spring-Deck Latch
(Superseded to 03030900)

$

$

Not available

5

Gravely 06712600

Pin-Cotter .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 8

0

6

Gravely 039074

Lever-Deck Latch
(Superseded to 03030800)

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 07411600

Screw-Tapping .250-20 x .37
(Superseded to 07400125)

$0.99

$

In Stock, Qty 6

0

8

Gravely 03090900

Plate-Floor

$

$

Not available

9

Gravely 036312

Hose Clamp
(Superseded to 06939100)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 03072500

Fuel Line

$37.99

$

Usually ships in 4-12 days

0

11

Gravely 07528400

Hole Plug 1.375

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 036518

J-Clamp
(Superseded to 06909400)

$3.49

$

In Stock, Qty 11

0

13

Gravely 039077

Left Hand Running Board
(Superseded to 03012500)

$

$

Not available

14

Gravely 03093100

Trim

$

$

Not available

15

Gravely 03092800

Screen

$9.49

$

Usually ships in 4-12 days

0

16

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 039078

Spring Washer
(Superseded to 02902400)

$18.99

$

Usually ships in 4-12 days

0

18

Gravely 039079

Lock Stop
(Superseded to 02901300)

$

$

Not available

19

Gravely 03055500

Latch Left Hand

$62.99

$

Usually ships in 4-12 days

0

20

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 03055400

Latch Right Hand

$

$

Not available

22

Gravely 07411500

Screw-Tapping .31 - 18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 03075000

Screen

$

$

Not available

24

Gravely 039083

Front Channel
(Superseded to 03012800)

$

$

Not available

25

Gravely 06530400

Nut-Flange-Locking .312 - 18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

26

Gravely 05947500

Bolt-Hex .31 - 18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

27

Gravely 039084

Rear Channel
(Superseded to 03012700)

$11.99

$

Usually ships in 4-12 days

0

28

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

29

Gravely 039048

Grommet .125 x .438
(Superseded to 07506600)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 039085

Spacer .318 x .430 x .375
(Superseded to 03101900)

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 06529800

Nut-Locking-Center .31 - 18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 039086

Right Hand Running Board
(Superseded to 03012600)

$34.99

$

Usually ships in 4-12 days

0

33

Gravely 06206700

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06215700)

$2.49

$

In Stock, Qty 9

0

34

Gravely 06214100

Bolt-Round Head Square Neck .31 - 18 x .75 Grade 2
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

35

Gravely 039087

Pin
(Superseded to 03101200)

$17.99

$

Usually ships in 4-12 days

0

36

Gravely 06713200

Pin-Hair Internal .15 x .43 x 2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 9

0

37

Gravely 06707100

Pin-Cotter .12 x 1.0

$0.99

$

In Stock, Qty 12

0

38

Gravely 03096800

Main Frame

$

$

Not available

39

Gravely 050162

Strap
(Superseded to 03457400)

$5.99

$

Usually ships in 4-12 days

0

40

Gravely 039090

Hinge
(Superseded to 03102800)

$25.99

$

In Stock, only 1 left!

0

41

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

42

Gravely 039091

Support
(Superseded to 03105500)

$

$

Not available

43

Gravely 06533200

Nut-Hex .250-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

44

Gravely 06308000

Washer-Lock .250 x .077

$0.99

$

Usually ships in 4-12 days

0

45

Gravely 039092

Guard
(Superseded to 03016100)

$

$

Not available

46

Gravely 06307400

Washer-Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

47

Gravely 06529200

Nut-Hex .31 - 18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

48

Gravely 039093

Channel
(Superseded to 03151700)

$

$

Not available

49

Gravely 07414400

Screw-Tapping .31 - 18 x .75
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0

50

Gravely 041169

Screw-Socket Head .25-20 x .75
(Superseded to 05967300)

$

$

Not available

51

Gravely 039095

Gas Gauge & Cap
(Superseded to 03181900)

$35.99

$

In Stock, only 1 left!

0

52

Gravely 036515

Foam Tape
(Superseded to 03076600)

$

$

Not available

53

Gravely 039096

Gas Tank Assembly
(Superseded to 03064400)

$

$

Not available

54

Gravely 06219900

Bolt-Round Head Square Neck .25 - 20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

55

Gravely 05505700

Bushing-Sleeve .750 x .814 x 1.000

$17.99

$

In Stock, only 1 left!

0

56

Gravely 03018700

Fitting-Gas Tank

$

$

Not available

57

Gravely 03026900

Gas Tank Fuel Line

$

$

Not available
