987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Front Power Take Off (PTO) Parts Diagram

60" Garden Tractor, 22hp Kohler

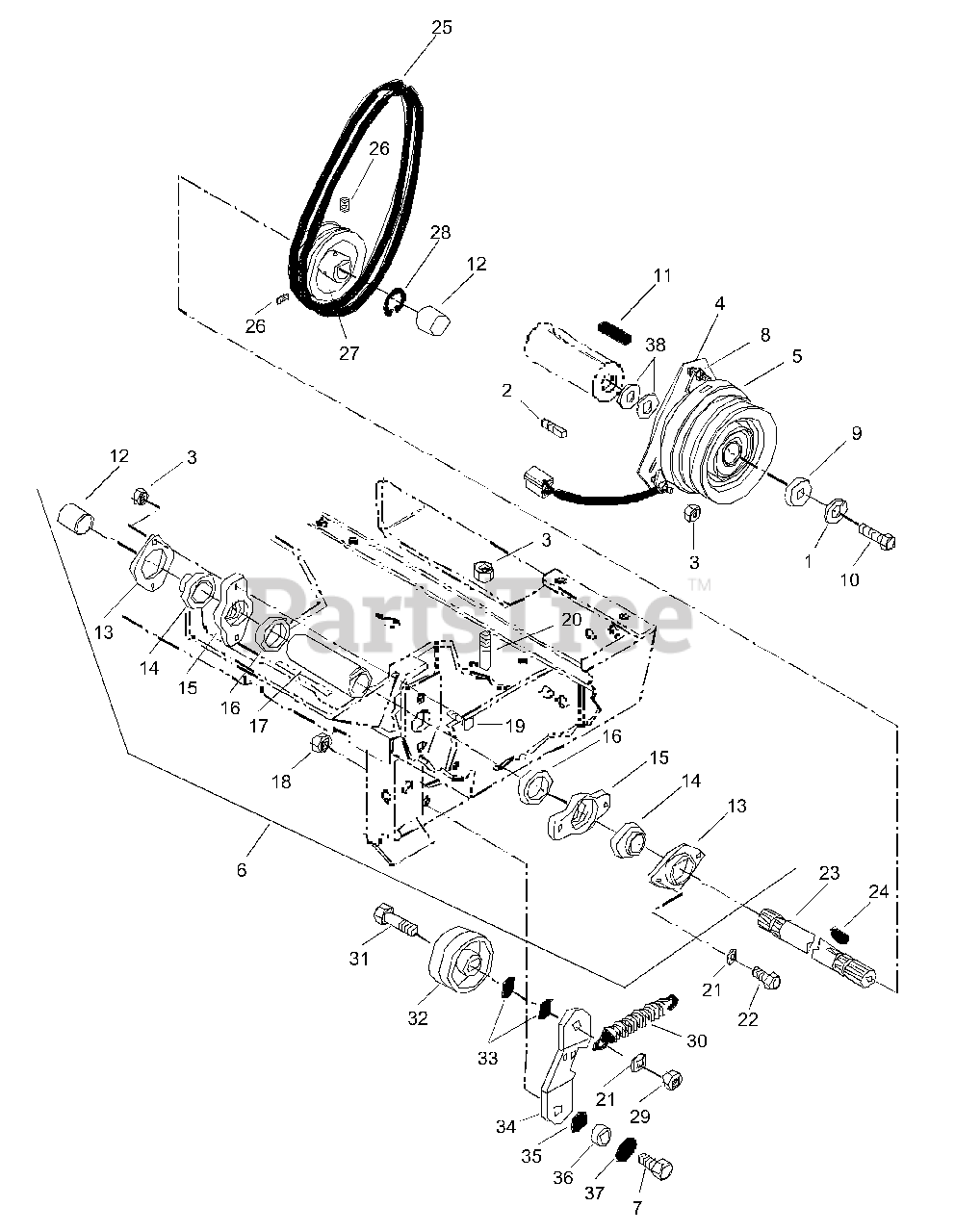

Front Power Take Off (PTO) Parts Diagram

  • Title

1

Gravely 06310700

Washer-Locking .438 x .133

$2.99

$

Usually ships in 4-12 days

0

2

Gravely 03092500

Stud-Clutch

$45.99

$

Usually ships in 4-12 days

0

3

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 039159

Spring-Compression
(Superseded to 08314800)

$

$

Not available

5

Gravely 03090800

Clutch-Electric

$349.99

$

Usually ships in 4-12 days

0

6

Gravely 53123800

Front PTO Kit

$522.99

$

Usually ships in 4-12 days

0

7

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

8

Gravely 06511600

Nut-Locking

$

$

Not available

9

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .250

$5.99

$

In Stock, Qty 20+

0

10

Gravely 05958800

Bolt-Hex .44-20 x 1.50
(Superseded to 05902004)

$5.99

$

In Stock, Qty 11

0

11

Gravely 039160

Key-Square .25 x .625 x .25
(Superseded to 06602700)

$3.99

$

In Stock, Qty 17

0

12

Gravely 039163

Shaft Cover
(Superseded to 07506000)

$4.49

$

In Stock, only 2 left!

0

13

Gravely 039165

Flange
(Superseded to 03008200)

$14.99

$

In Stock, only 1 left!

0

14

Gravely 046316

Bearing w/Collar 1.0 x 2.047 x .844
(Superseded to 05426200)

$45.99

$

In Stock, Qty 6

0

15

Gravely 042708

Bearing Flange
(Superseded to 03080400)

$110.99

$

In Stock, only 1 left!

0

16

Gravely 042713

Bushing-Sleeve 1.500 x 1.750 x .560
(Superseded to 05514700)

$14.99

$

In Stock, only 2 left!

0

17

Gravely 03087800

PTO Tube

$54.99

$

In Stock, only 1 left!

0

18

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

19

Gravely 06215300

Bolt-Round Head Square Neck .38-16 x 1.50
(Superseded to 06224200)

$3.99

$

In Stock, Qty 20+

0

20

Gravely 042710

Lock Stud
(Superseded to 03080900)

$28.99

$

Usually ships in 4-12 days

0

21

Gravely 06308800

Washer-Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

22

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 6

0

23

Gravely 039177

Front PTO Shaft
(Superseded to 03040500)

$224.99

$

Usually ships in 4-12 days

0

24

Gravely 039178

Key-Feather .25 x 1.25 x .25
(Superseded to 06604500)

$5.99

$

In Stock, Qty 8

0

25

Gravely 039179

Belt-Set
(Superseded to 07211100)

$38.99

$

In Stock, only 2 left!

0

26

Gravely 036357

Screw-Set .32-18 x .38
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

27

Gravely 03040400

Sheave

$168.99

$

Usually ships in 4-12 days

0

28

Gravely 039512

Ring-Retaining-External 1.00 x .042
(Superseded to 05706200)

$2.49

$

In Stock, only 3 left!

0

29

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

30

Gravely 03087900

Spring Assembly
(Superseded to 53126900)

$134.99

$

Usually ships in 4-12 days

0

31

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 14

0

32

Gravely 039173

Idler-Flat 3.25 x .38
(Superseded to 07308800)

$39.99

$

In Stock, only 3 left!

0

33

Gravely 06444300

Washer-Flat-Steel .390 x .75 x .125

$7.99

$

In Stock, Qty 9

0

34

Gravely 039174

Idler Arm
(Superseded to 03063100)

$112.99

$

Usually ships in 4-12 days

0

35

Gravely 039169

Shim Spacer
(Superseded to 03115800)

$9.99

$

In Stock, only 1 left!

0

36

Gravely 039170

Spacer .512 x .747 x .208
(Superseded to 03115700)

$26.99

$

In Stock, only 1 left!

0

37

Gravely 06441800

Washer-Flat-Steel .518 x 2.000 x .105
(Superseded to 06401127)

$3.99

$

In Stock, Qty 5

0

38

Gravely 00520300

Washer-Bushing 10 Gauge

$

$

Not available
