987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Front Power Take Off (PTO) Parts Diagram

60" Garden Tractor, 22hp Kohler

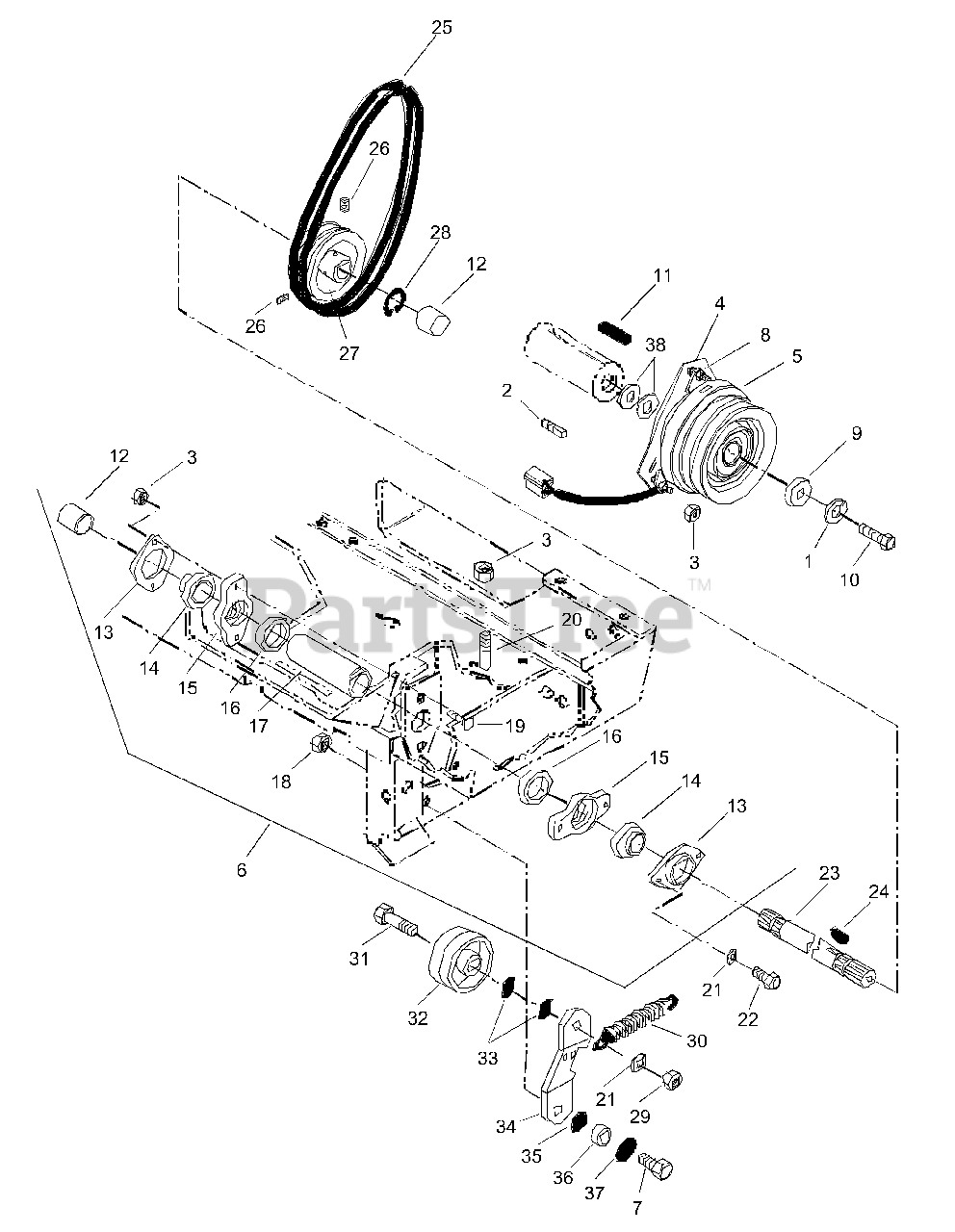

Front Power Take Off (PTO) Parts Diagram

  • Title

1

Gravely 06310700

WSHR-LK .438X.133 HVY YWZC

$3.49

$

In Stock, only 1 left!

0

2

Gravely 03092500

STUD - CLUTCH

$46.99

$

Usually ships in 4-12 days

0

3

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 039159

SG-COMP WARNER ELEC.
(Superseded to 08314800)

$

$

Not available

5

Gravely 03090800

CLUTCH-ELEC. WARNER I-5215-62B

$435.99

$

Usually ships in 4-12 days

0

6

Gravely 53123800

FRONT PTO KIT

$

$

Not available

7

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

8

Gravely 06511600

NUT-LK WARNER

$

$

Not available

9

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

10

Gravely 05958800

BLT-HEX .44-20X1.5 YWZC
(Superseded to 05902004)

$6.49

$

In Stock, Qty 10

0

11

Gravely 039160

KEY-SQ .25X.625X.25 SAE 8630
(Superseded to 06602700)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 039163

SHAFT COVER
(Superseded to 07506000)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 039165

FLANGE
(Superseded to 03008200)

$19.99

$

In Stock, Qty 8

0

14

Gravely 046316

BRG/W COLLAR 1.0 X 2.047 X.844
(Superseded to 05426200)

$50.99

$

In Stock, Qty 12

0

15

Gravely 042708

BRG FLANGE
(Superseded to 03080400)

$

$

Not available

16

Gravely 042713

BSHG-SLV 1.500X1.750X.560
(Superseded to 05514700)

$15.99

$

In Stock, Qty 5

0

17

Gravely 03087800

PTO TUBE

$56.99

$

Usually ships in 4-12 days

0

18

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

19

Gravely 06215300

BLT-RDHDSQNK .38-16X1.50 G2YZ
(Superseded to 06224200)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 042710

LOCK STUD
(Superseded to 03080900)

$

$

Not available

21

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

23

Gravely 039177

FRONT PTO SHAFT
(Superseded to 03040500)

$229.99

$

Usually ships in 4-12 days

0

24

Gravely 039178

KEY-FTHR .25X1.25X.25 SAE
(Superseded to 06604500)

$6.49

$

In Stock, only 4 left!

0

25

Gravely 039179

V-BELT, 4L-WRAPPED (SET)
(Superseded to 07211100)

$43.99

$

In Stock, only 3 left!

0

26

Gravely 036357

SCR-SET .31-18X.38 SKHCUPDL
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

27

Gravely 03040400

SHEAVE

$171.99

$

Usually ships in 4-12 days

0

28

Gravely 039512

RG-RTNG-EXT 1.00X.042
(Superseded to 05706200)

$2.99

$

In Stock, Qty 8

0

29

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 03087900

SPRING ASSEMBLY
(Superseded to 53126900)

$

$

Not available

31

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

32

Gravely 039173

IDLER-FLAT 3.25 X .38 NWHAMSHR
(Superseded to 07308800)

$40.99

$

In Stock, only 2 left!

0

33

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, only 3 left!

0

34

Gravely 039174

IDLER ARM
(Superseded to 03063100)

$

$

Not available

35

Gravely 039169

SHIM SPACER
(Superseded to 03115800)

$14.99

$

Usually ships in 4-12 days

0

36

Gravely 039170

SPACER .512X.747X.208
(Superseded to 03115700)

$39.99

$

Usually ships in 4-12 days

0

37

Gravely 06441800

WSHR-FL-STL .518X2.0X.105 YWZC
(Superseded to 06401127)

$3.99

$

In Stock, only 1 left!

0

38

Gravely 00520300

WASHER, BUSHING 10 GA

$

$

Not available
