987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Hood & Rear Deck Parts Diagram

60" Garden Tractor, 22hp Kohler

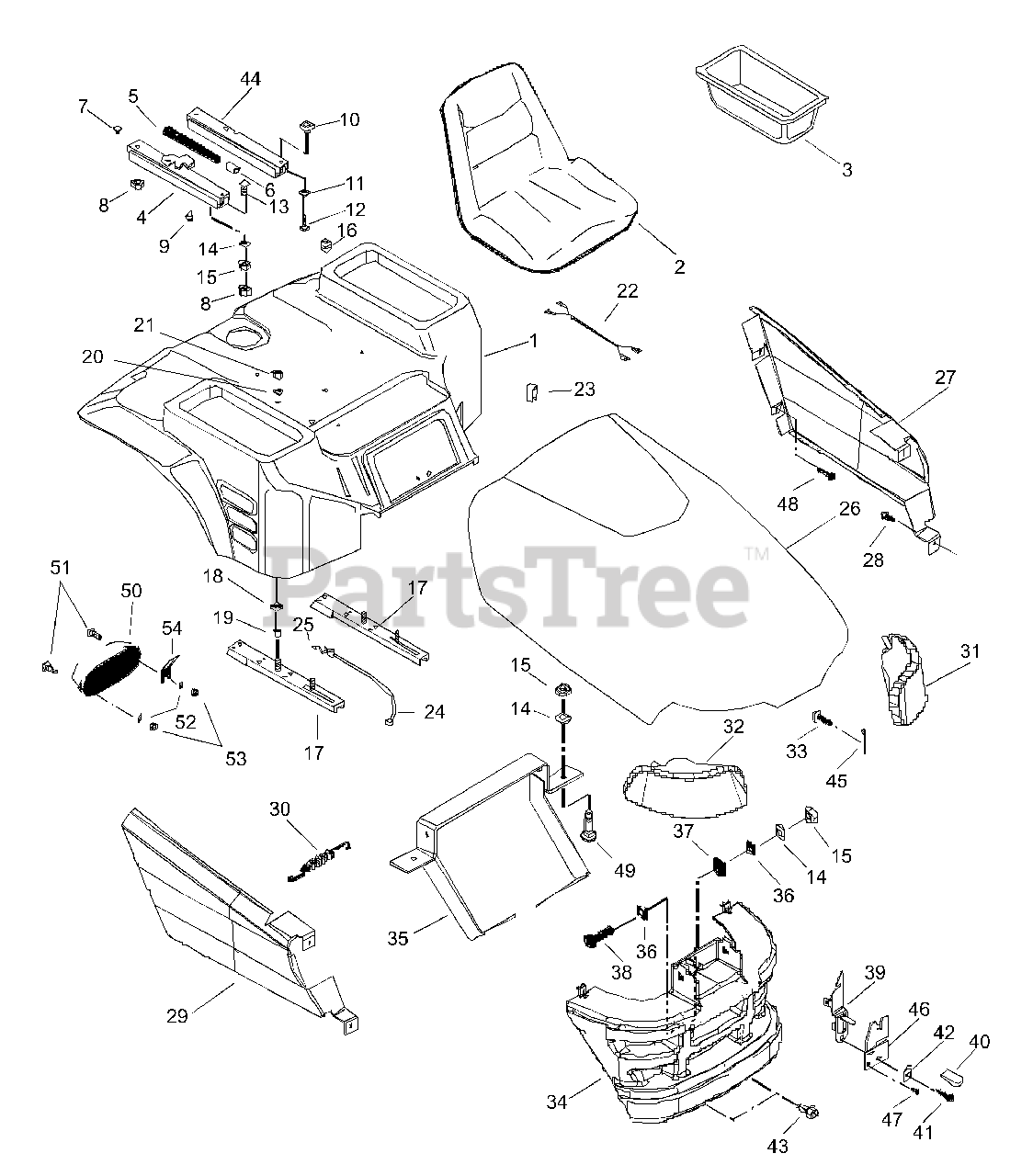

Hood & Rear Deck Parts Diagram

  • Title

1

Gravely 03074053

Rear Deck

$79.99

$

Usually ships in 4-12 days

0

2

Gravely 03095400

Seat V-850
(Superseded to 53407000)

$

$

Not available

3

Gravely 039044

Tray
(Superseded to 03009300)

$

$

Not available

4

Gravely 039061

Seat Slide Right Hand
(Superseded to 03416600)

$

$

Not available

5

Gravely 039063

Seat Slide Handle
(Superseded to 03416500)

$

$

Not available

6

Gravely 039064

Grip
(Superseded to 07512000)

$

$

Not available

7

Gravely 039062

Screw-Cap Button Head .31-18 x .50
(Superseded to 07008100)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 039060

Rivet-Pop .187 x .562
(Superseded to 06806500)

$

$

Not available

10

Gravely 035670

Seat Slide Spacer
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

11

Gravely 06307200

Washer-Lock External .326 x .599 x .031
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 06117700

Screw-Machine .31-18 x 1.00

$

$

Not available

13

Gravely 039059

Screw-Cap .31-18 x .75
(Superseded to 07008600)

$

$

Not available

14

Gravely 06307400

Washer-Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

15

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

16

Gravely 039065

Grommet .188 x .375
(Superseded to 07504400)

$

$

Not available

17

Gravely 039053

Seat Support
(Superseded to 03009100)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 06444300

Washer-Flat-Steel .390 x .75 x .125

$7.99

$

In Stock, Qty 9

0

19

Gravely 039055

Spacer .380 x .503 x .281
(Superseded to 03009200)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06308800

Washer-Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

21

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

22

Gravely 03093200

Seat Harness

$

$

Not available

23

Gravely 036517

Wire Clip
(Superseded to 07510700)

$

$

Not available

24

Gravely 039054

Cable
(Superseded to 06910200)

$37.99

$

Usually ships in 4-12 days

0

25

Gravely 039057

Steel Hook
(Superseded to 03029300)

$

$

Not available

26

Gravely 53607000

Hood with Decals
(Superseded to 53611400)

$

$

Not available

27

Gravely 03655200

Side Panel - Left Hand
(Superseded to 03673451)

$62.99

$

Usually ships in 4-12 days

0

28

Gravely 07412500

Screw-Tapping 12-16 x .500

$

$

Not available

29

Gravely 03655100

Side Panel - Right Hand
(Superseded to 03673351)

$56.99

$

Usually ships in 4-12 days

0

30

Gravely 039139

Spring - Tension .035 x .45 x 2.75
(Superseded to 08314900)

$13.99

$

In Stock, only 1 left!

0

31

Gravely 03647300

Headlight - Left Hand

$

$

Not available

32

Gravely 03647200

Headlight - Right Hand

$

$

Not available

33

Gravely 045342

Clevis Pin .243/.248 x 1 1/2
(Superseded to 00283500)

$3.49

$

Usually ships in 4-12 days

0

34

Gravely 03097400

Grille
(Superseded to 03679200)

$

$

Not available

35

Gravely 03090300

Mount-Grille

$

$

Not available

36

Gravely 06437500

Washer .328 x 1.0 x .094
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

37

Gravely 06435500

Washer-Flat-Nylon .375 x 1.000 x .062

$2.49

$

Usually ships in 4-12 days

0

38

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

39

Gravely 03655000

Hood Latch

$

$

Not available

40

Gravely 07526700

Grip .062 x .375 x .750

$

$

Not available

41

Gravely 07413300

Screw-Tapping 12-24 x .50
(Superseded to 07411900)

$2.49

$

In Stock, Qty 12

0

42

Gravely 06440600

Washer-Flat-Steel .281 x 1.250 x .048
(Superseded to 06403700)

$1.49

$

Usually ships in 4-12 days

0

43

Gravely 07414400

Screw-Tapping .31-18 x .75
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0

44

Gravely 039068

Seat Slide Left Hand
(Superseded to 03416700)

$

$

Not available

45

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

46

Gravely 03665900

Locator-Hood

$

$

Not available

47

Gravely 07406400

Screw-Tapping 10-12 x .50

$3.49

$

Usually ships in 4-12 days

0

48

Gravely 07415000

Screw-Tapping 10-16 x .62

$1.99

$

Usually ships in 4-12 days

0

49

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.0
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

50

Gravely 039488

Tail Light Assembly
(Superseded to 53128400)

$119.99

$

Usually ships in 4-12 days

0

51

Gravely 06117600

Screw-Machine 10-24 x .50 Slotted Round Head

$2.99

$

Usually ships in 4-12 days

0

52

Gravely 06308100

Washer-Lock #10 x .047

$1.49

$

Usually ships in 4-12 days

0

53

Gravely 06536600

Nut-Hex 10-24

$0.99

$

In Stock, Qty 5

0

54

Gravely 036126

Male Disconnect Adapter
(Superseded to 03005000)

$

$

Not available
