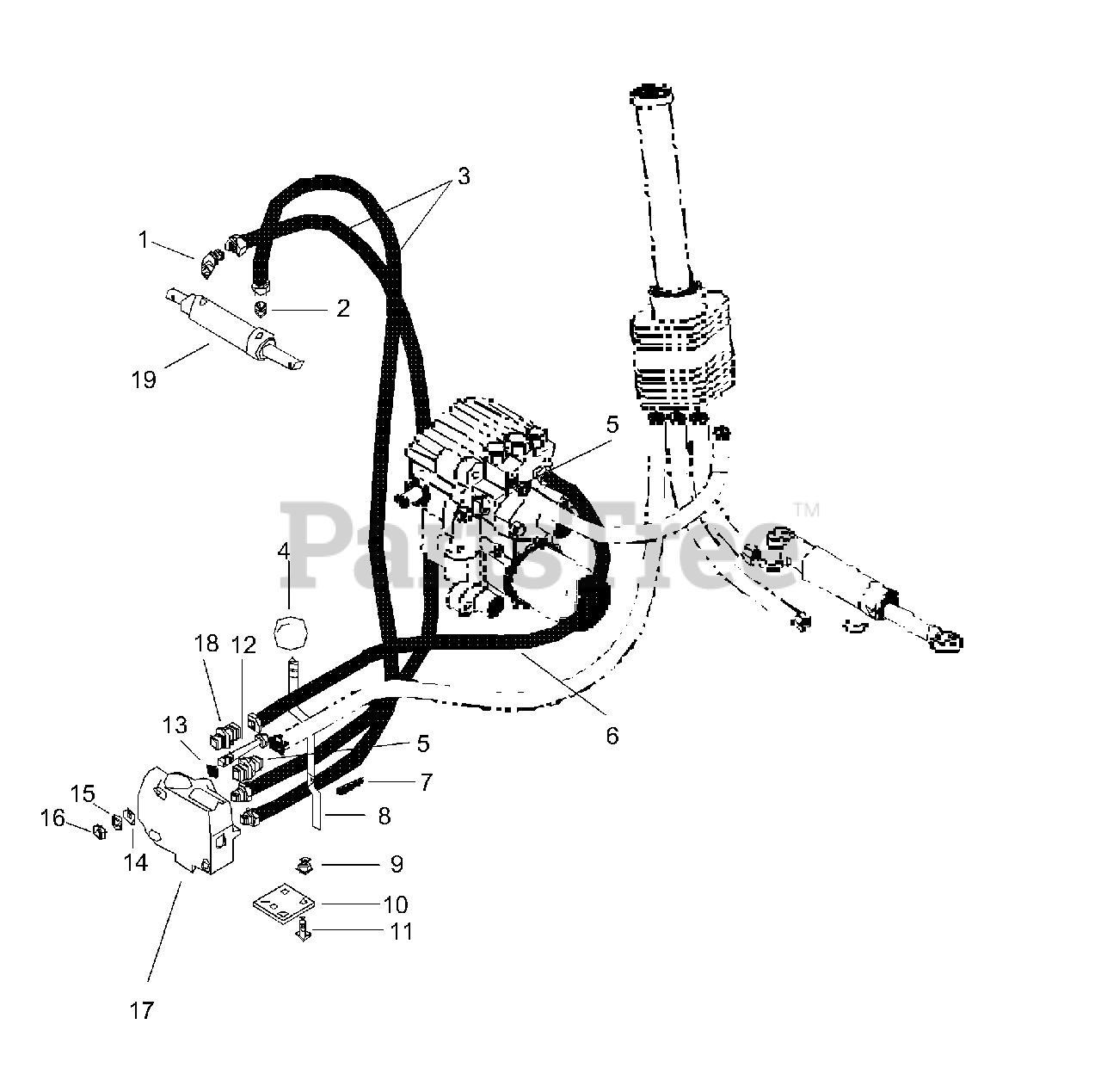

987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Hydraulic Lift System Parts Diagram

60" Garden Tractor, 22hp Kohler

Hydraulic Lift System Parts Diagram

  • Title

1

Gravely 039682

Adapter 9/16 to 1/4
(Superseded to 03106800)

$

$

Not available

2

Gravely 039683

Adapter
(Superseded to 03163400)

$

$

Not available

3

030860

Hydraulic Hose

$

$

Not available

4

Gravely 039360

Knob-Steering Lock
(Superseded to 07505200)

$20.99

$

Usually ships in 4-12 days

0

5

Gravely 019167

Adapter-Pipe
(Superseded to 07017500)

$11.99

$

In Stock, only 2 left!

0

6

Gravely 039470

Hydraulic Hose
(Superseded to 03008700)

$68.99

$

Usually ships in 4-12 days

0

7

Gravely 039684

Pin-Groove .250 x .75
(Superseded to 05805300)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 039498

Control Rod
(Superseded to 03118900)

$153.99

$

Usually ships in 4-12 days

0

9

Gravely 06530400

Nut-Flange-Locking .31-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

10

Gravely 039685

Pivot Bracket
(Superseded to 03040300)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06209800

Bolt-Round Head Square Neck .31-18 x .50

$

$

Not available

12

Gravely 05956700

Bolt-Hex .25-20 x 2.25 Grade 5
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 06439500

Washer-Flat-Steel .265 x .50 x .087
(Superseded to 06401120)

$1.49

$

In Stock, only 1 left!

0

14

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

15

Gravely 06308000

Washer-Lock .250 x .077

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 06533200

Nut-Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

17

Gravely 03031000

Hydraulic Control Valve
(Superseded to 53118600)

$

$

Not available

18

Gravely 03085900

Connector

$20.99

$

Usually ships in 4-12 days

0

19

Gravely 03077100

Cylinder Assembly Lift

$

$

Not available

Gravely 039680

Cylinder Assembly (Lift)
(Superseded to 03077100)

Note: (Contains one of Item 19 and two 03078500 Plugs)

$

$

Not available

Gravely 03078500

Plugs

$

$

Not available
