987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Hydrostatic Transmission Parts Diagram

60" Garden Tractor, 22hp Kohler

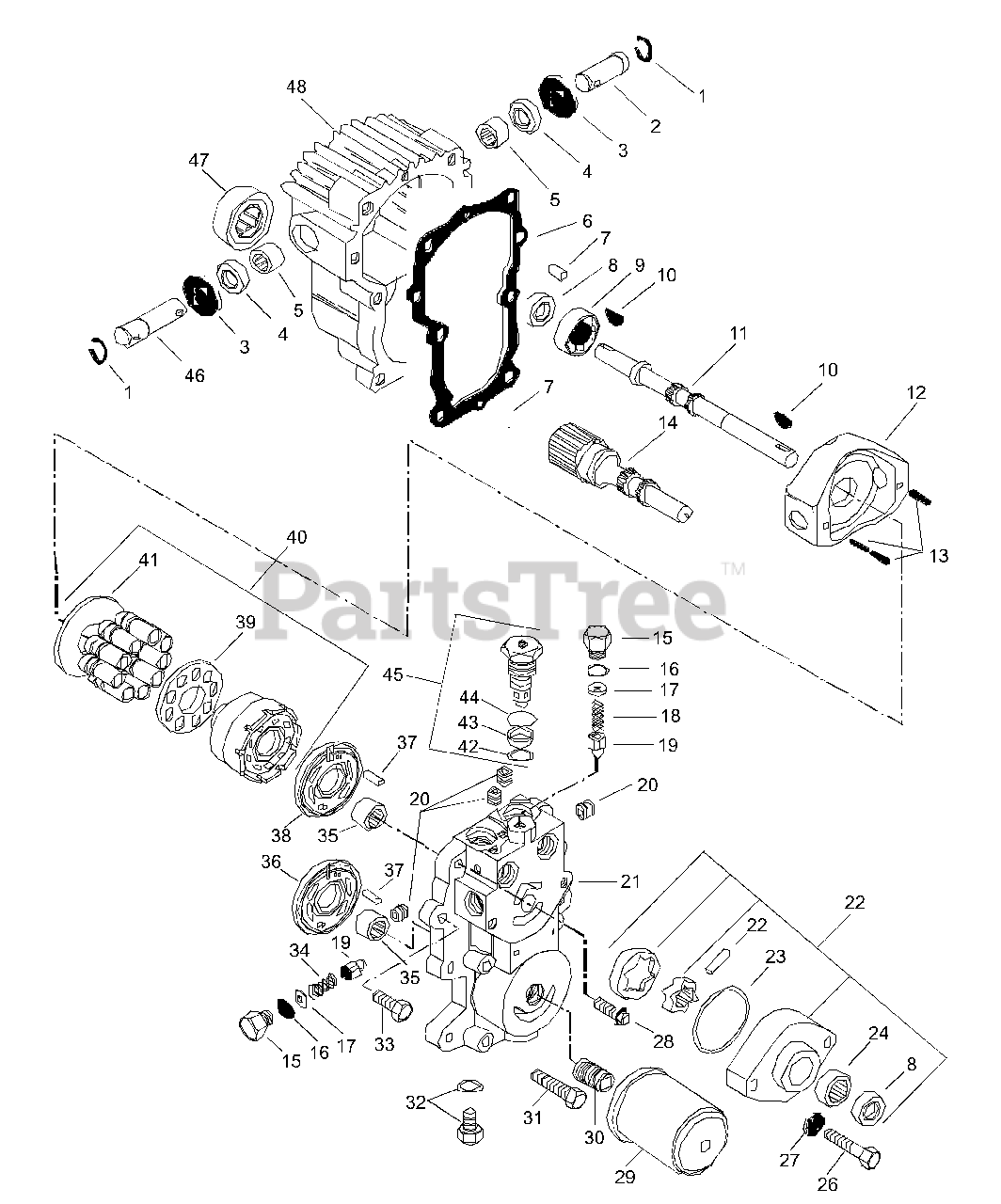

Hydrostatic Transmission Parts Diagram

  • Title

1

Gravely 039279

Ring-Retaining-External .688 x .042
(Superseded to 05706900)

$

$

Not available

2

Gravely 039280

Trunnion Shaft
(Superseded to 03161400)

$61.99

$

Usually ships in 4-12 days

0

3

Gravely 039281

Washer-Flat-Steel .699 x 1.375 x .059
(Superseded to 06415100)

$

$

Not available

4

Gravely 039282

Seal .625 x 1.187 x .187
(Superseded to 05608900)

$25.99

$

In Stock, only 1 left!

0

5

Gravely 05412600

Bearing-Needle .688 x .876 x .63

$

$

Not available

6

Gravely 039284

Gasket
(Superseded to 03162900)

$

$

Not available

7

Gravely 039285

Dowel Pin
(Superseded to 03163200)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 039286

Seal .625 x 1.128 x .250
(Superseded to 05609100)

$21.99

$

Usually ships in 4-12 days

0

9

Gravely 05408800

Bearing-Ball 1.0 x 2.0 x .50

$

$

Not available

10

Gravely 106751

Key-Woodruff .188 x .75
(Superseded to 06600300)

$1.49

$

In Stock, Qty 7

0

11

Gravely 039288

Pump Shaft
(Superseded to 03013800)

$

$

Not available

12

Gravely 039289

Swashplate Variable
(Superseded to 03054400)

$

$

Not available

13

Gravely 039290

Pin-Roll .188 x .63
(Superseded to 05806200)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 039291

Motor Shaft
(Superseded to 03162300)

$239.99

$

Usually ships in 4-12 days

0

15

Gravely 039292

Plug-Hex Head
(Superseded to 03161100)

$

$

Not available

16

Gravely 039293

O-Ring .414 x .562 x .072
(Superseded to 05608800)

$

$

Not available

17

Gravely 039294

Shim Package
(Superseded to 03161300)

$71.99

$

Usually ships in 4-12 days

0

18

Gravely 039295

Spring-Compression
(Superseded to 08322200)

$

$

Not available

19

Gravely 039296

Relief Valve Cone
(Superseded to 03160900)

$34.99

$

Usually ships in 4-12 days

0

20

Gravely 039297

Pipe Plug
(Superseded to 03163000)

$

$

Not available

21

Gravely 039298

Center Section
(Superseded to 03074800)

$

$

Not available

22

Gravely 039299

Pin
(Superseded to 03074900)

$39.99

$

In Stock, only 1 left!

0

23

Gravely 039300

O-Ring 2.364 x 2.504 x .072
(Superseded to 05609200)

$9.99

$

Usually ships in 4-12 days

0

24

Gravely 039301

Bearing-Needle .625 x .875 x .50
(Superseded to 05405400)

$25.99

$

Usually ships in 4-12 days

0

25

Gravely 039302

Charge Pump Assembly
(Superseded to 53119200)

$

$

Not available

26

Gravely 039303

Bolt-Hex .44-14 x 2.00 Grade 5
(Superseded to 05912600)

$

$

Not available

27

Gravely 039304

Washer-Flat-Steel .469 x .719 x .108
(Superseded to 06415300)

$

$

Not available

28

Gravely 039305

Screw-12 Point .38-16 x 1.25 Grade 5
(Superseded to 05917900)

$

$

Not available

29

Gravely 039306

Oil Filter
(Superseded to 03192800)

$27.99

$

In Stock, only 2 left!

0

30

Gravely 039307

Union
(Superseded to 03161800)

$

$

Not available

31

Gravely 180130

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 14

0

32

Gravely 039308

Threaded Plug
(Superseded to 03160800)

$13.99

$

Usually ships in 4-12 days

0

33

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 6

0

34

Gravely 039309

Spring-Compression
(Superseded to 08315700)

$

$

Not available

35

Gravely 039310

Bearing-Needle 17MM x .938 x .62
(Superseded to 05412700)

$

$

Not available

36

Gravely 039311

Motor Valve Plate
(Superseded to 03162100)

$

$

Not available

37

Gravely 039312

Dowel Pin
(Superseded to 03163300)

$

$

Not available

38

Gravely 03083600

Valve Plate

$

$

Not available

39

Gravely 039314

Slipper Retainer
(Superseded to 03020500)

$52.99

$

Usually ships in 4-12 days

0

40

Gravely 039315

Cylinder Block Kit
(Superseded to 53103500)

$

$

Not available

41

Gravely 039316

Thrust Plate
(Superseded to 03054200)

$71.99

$

Usually ships in 4-12 days

0

42

Gravely 039317

O-Ring .614 x .750 x .070
(Superseded to 05609700)

$9.49

$

Usually ships in 4-12 days

0

43

Gravely 039318

O-Ring .614 x .750 x .046
(Superseded to 05609800)

$21.99

$

Usually ships in 4-12 days

0

44

Gravely 039319

O-Ring .770 x .968 x .097
(Superseded to 05609600)

$5.99

$

Usually ships in 4-12 days

0

45

Gravely 039320

Check Valve Assembly
(Superseded to 58901300)

$230.99

$

Usually ships in 4-12 days

0

46

Gravely 039321

Trunnion Shaft
(Superseded to 03161500)

$92.99

$

Usually ships in 4-12 days

0

47

Gravely 039322

Bearing-Roller 1.27 x 2.05 x 15MM
(Superseded to 05412800)

$93.99

$

Usually ships in 4-12 days

0

48

Gravely 53123500

Housing w/Seals and Bearings

$

$

Not available
