987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Lift System Rock Shafts Parts Diagram

60" Garden Tractor, 22hp Kohler

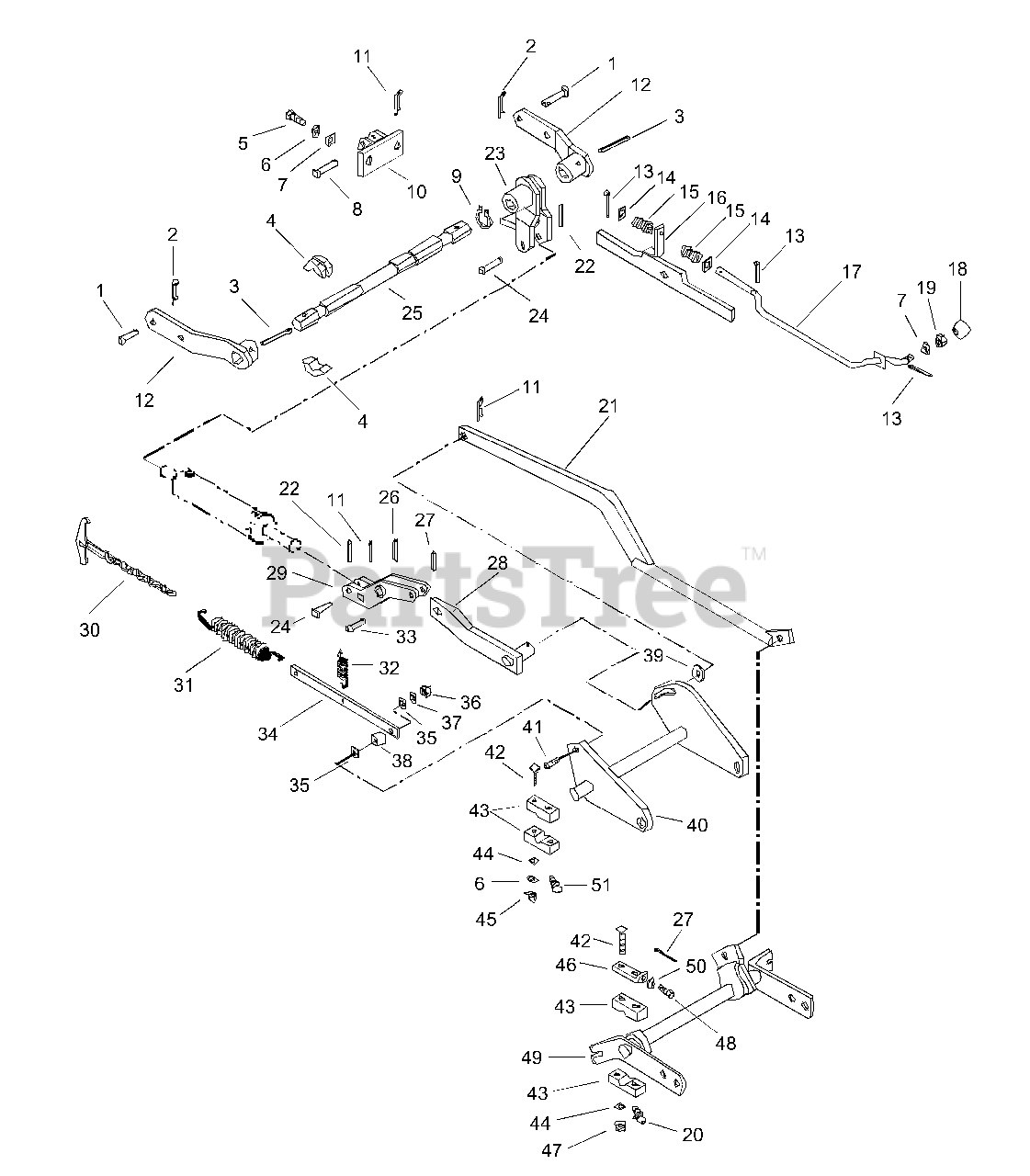

Lift System Rock Shafts Parts Diagram

  • Title

1

Gravely 039348

Rivet .50 x 1.25
(Superseded to 06805500)

$

$

Not available

2

Gravely 06713600

Pin-Hair Internal .15 x .43 x 2.75

$

$

Not available

3

Gravely 039350

Pin-Cotter .18 x 2.0
(Superseded to 06713600)

$

$

Not available

4

Gravely 039354

Bushing-Flange 1.000 x 1.75 x 1.000
(Superseded to 05508500)

$30.99

$

Usually ships in 4-12 days

0

5

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06308800

Washer-Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 16

0

7

Gravely 06435900

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

8

Gravely 039346

Clevis Pin .616/.621 x 2
(Superseded to 03100800)

$

$

Not available

9

Gravely 039352

Ring-Retaining-External 1.125 x .050
(Superseded to 05701400)

$

$

Not available

10

Gravely 03100700

Plate

$

$

Not available

11

Gravely 06713700

Pin-Hair Internal .09 x .188 x 2.00
(Superseded to 06712900)

$5.99

$

In Stock, only 2 left!

0

12

Gravely 039349

Arm
(Superseded to 03153400)

$

$

Not available

13

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 9

0

14

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 039356

Spring-Compression .65 x .56 x 1.50
(Superseded to 08310500)

$

$

Not available

16

Gravely 039357

Latch
(Superseded to 03149800)

$11.99

$

Usually ships in 4-12 days

0

17

Gravely 039358

Latch Rod
(Superseded to 03017500)

$75.99

$

Usually ships in 4-12 days

0

18

Gravely 039360

Knob - Steering Lock
(Superseded to 07505200)

$20.99

$

Usually ships in 4-12 days

0

19

Gravely 06535900

Nut-Hex .375 - 16
(Superseded to 06500910)

$0.99

$

In Stock, only 4 left!

0

20

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

21

Gravely 03090700

Link - Connector

$

$

Not available

22

Gravely 06707100

Pin-Cotter .12 x 1.0

$0.99

$

In Stock, Qty 12

0

23

Gravely 039351

Arm
(Superseded to 03056200)

$

$

Not available

24

Gravely 039355

Clevis Pin .491/.496 x 1 15/16
(Superseded to 03105100)

$

$

Not available

25

Gravely 039353

Shaft
(Superseded to 03056100)

$

$

Not available

26

Gravely 06712700

Pin - Cotter .18 x 1.25

$1.99

$

In Stock, Qty 5

0

27

Gravely 06712000

Pin-Cotter .18 x 1.0

$1.99

$

Usually ships in 4-12 days

0

28

Gravely 039368

Link
(Superseded to 03150000)

$

$

Not available

29

Gravely 039362

Bellcrank
(Superseded to 03106300)

$

$

Not available

30

Gravely 039363

Chain
(Superseded to 03101700)

$22.99

$

Usually ships in 4-12 days

0

31

Gravely 039364

Spring-Tension .156 x 1.062 x 2.68
(Superseded to 08310700)

$39.99

$

Usually ships in 4-12 days

0

32

Gravely 039139

Spring-Tension .035 x .45 x 2.75
(Superseded to 08314900)

$13.99

$

In Stock, only 1 left!

0

33

Gravely 03079300

Clevis Pin .616/.621 x 1.42/1.44

$

$

Not available

34

Gravely 039366

Link
(Superseded to 03118100)

$

$

Not available

35

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 14

0

36

Gravely 06533200

Nut-Hex .250 - 20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

37

Gravely 06308000

Washer-Lock .250 x .077

$0.99

$

Usually ships in 4-12 days

0

38

Gravely 039367

Spacer .269
(Superseded to 03102100)

$5.99

$

Usually ships in 4-12 days

0

39

Gravely 06439000

Washer-Flat-Steel .812 x 1.500 x .139
(Superseded to 06401140)

$1.49

$

In Stock, Qty 13

0

40

Gravely 039369

Center Rockshaft
(Superseded to 03105000)

$

$

Not available

41

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

42

Gravely 06213400

Bolt-Round Head Square Neck .38-16 x 2.25 Grade 5
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

43

Gravely 039370

Block
(Superseded to 02901100)

$

$

Not available

44

Gravely 06444600

Washer-Flat-Steel .406 x .750 x .005

$

$

Not available

45

Gravely 06529400

Nut-Hex .38-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, Qty 7

0

46

Gravely 039372

Brace
(Superseded to 03101400)

$

$

Not available

47

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

48

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

49

Gravely 03101600

Rock-Shaft Front
(Superseded to 53100500)

$

$

Not available

50

Gravely 06307400

Washer-Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, only 3 left!

0

51

UNKNOWN

UNKNOWN

$

$

Not available
