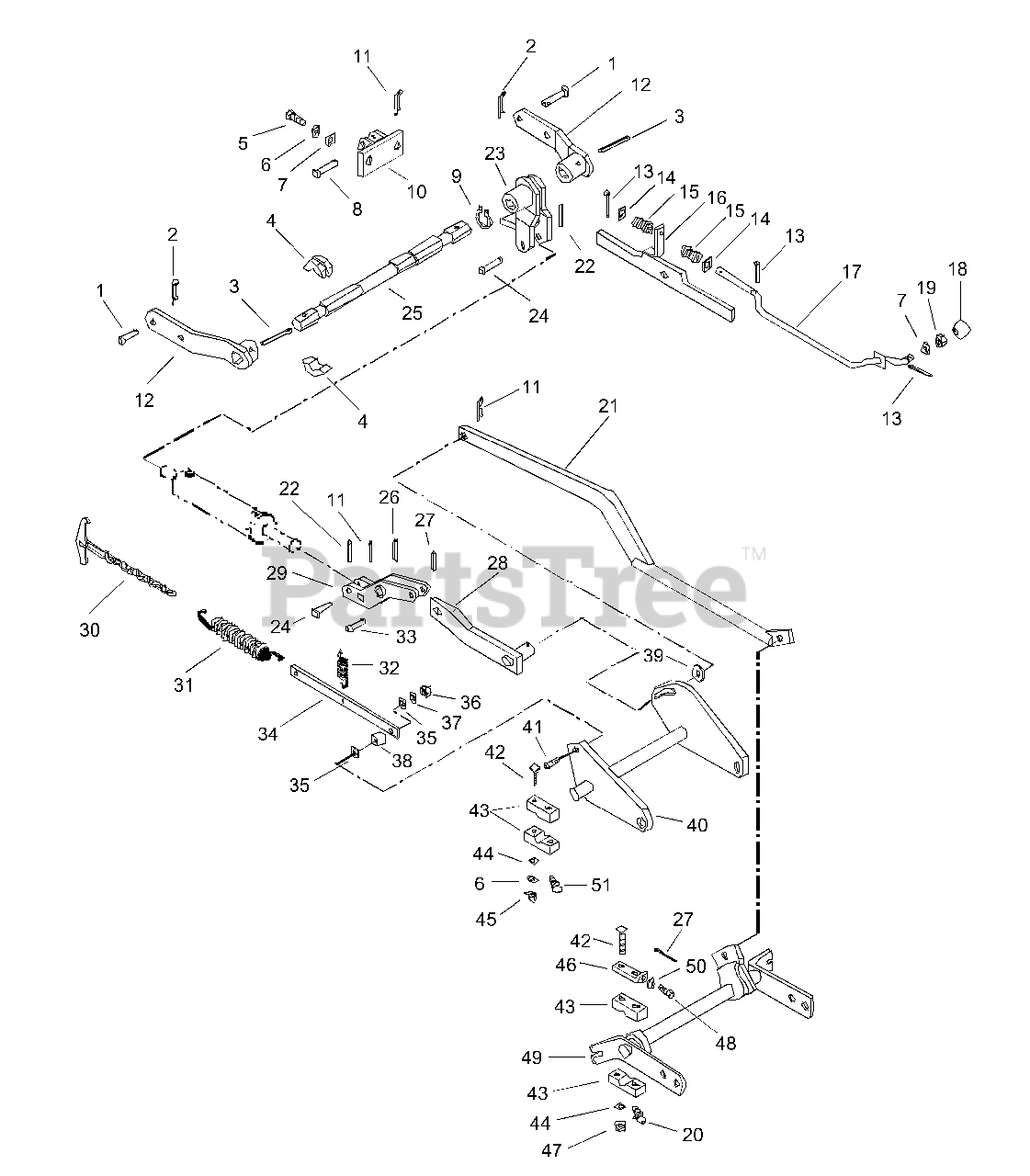

987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Lift System Rock Shafts Parts Diagram

60" Garden Tractor, 22hp Kohler

Lift System Rock Shafts Parts Diagram

  • Title

1

Gravely 039348

PIN-CLEV .50X1.25 RH ST PL
(Superseded to 06805500)

$

$

Not available

2

Gravely 06713600

PIN-CTR .18X2.00 YWZC

$

$

Not available

3

Gravely 039350

PIN-CTR .18X2.00 YWZC
(Superseded to 06713600)

$

$

Not available

4

Gravely 039354

BSHG-FLG 1.000X1.750X1.000
(Superseded to 05508500)

$

$

Not available

5

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 039346

PIN-CLEV .619X2.0 YWZC
(Superseded to 03100800)

$

$

Not available

9

Gravely 039352

RG-RTNG-EXT 1.125X.050
(Superseded to 05701400)

$

$

Not available

10

Gravely 03100700

PLATE

$

$

Not available

11

Gravely 06713700

PIN-HAIR-INT .09X.188X2.00YWZC
(Superseded to 06712900)

$6.99

$

In Stock, Qty 9

0

12

Gravely 039349

ARM
(Superseded to 03153400)

$

$

Not available

13

Gravely 06707300

PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 6

0

14

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 039356

SG-COMP .65X.56X1.50
(Superseded to 08310500)

$

$

Not available

16

Gravely 039357

LATCH
(Superseded to 03149800)

$11.99

$

Usually ships in 4-12 days

0

17

Gravely 039358

LATCH ROD
(Superseded to 03017500)

$

$

Not available

18

Gravely 039360

KNOB-STEERING LOCK
(Superseded to 07505200)

$22.99

$

In Stock, only 3 left!

0

19

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

21

Gravely 03090700

LINK - CONNECTOR

$

$

Not available

22

Gravely 06707100

PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

23

Gravely 039351

ARM
(Superseded to 03056200)

$

$

Not available

24

Gravely 039355

PIN-CLEV .494X1.94 YWZC
(Superseded to 03105100)

$

$

Not available

25

Gravely 039353

SHAFT
(Superseded to 03056100)

$

$

Not available

26

Gravely 06712700

PIN-CTR .18X1.25 EXTPRSQCT YZ

$2.49

$

In Stock, only 2 left!

0

27

Gravely 06712000

PIN-CTR .18X1.00 EXTPRSQCT YZ

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 039368

LINK
(Superseded to 03150000)

$

$

Not available

29

Gravely 039362

BELLCRANK
(Superseded to 03106300)

$

$

Not available

30

Gravely 039363

CHAIN
(Superseded to 03101700)

$22.99

$

Usually ships in 4-12 days

0

31

Gravely 039364

SG-TENS .156X1.062X8.68 WLD ??
(Superseded to 08310700)

$

$

Not available

32

Gravely 039139

SG-TENS .035X.45X2.75 WLD 3.5
(Superseded to 08314900)

$14.99

$

In Stock, only 4 left!

0

33

Gravely 03079300

PIN-CLEV .619X1.43 YWZC

$

$

Not available

34

Gravely 039366

LINK
(Superseded to 03118100)

$

$

Not available

35

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

37

Gravely 06308000

WSHR-LK .250X.077 HVY YWZC

$0.99

$

In Stock, Qty 7

0

38

Gravely 039367

SPACER .269X.375X.343
(Superseded to 03102100)

$5.99

$

Usually ships in 4-12 days

0

39

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 039369

CENTER ROCKSHAFT
(Superseded to 03105000)

$

$

Not available

41

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

42

Gravely 06213400

BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$4.99

$

In Stock, Qty 9

0

43

Gravely 039370

BLOCK
(Superseded to 02901100)

$

$

Not available

44

Gravely 06444600

WSHR-FL-STL .406X.750X.005 YWZ

$

$

Not available

45

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 039372

BRACE
(Superseded to 03101400)

$

$

Not available

47

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

48

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 12

0

49

Gravely 03101600

ROCK SHAFT-FRONT
(Superseded to 53100500)

$

$

Not available

50

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

51

UNKNOWN

$

$

Not available
