987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Neutralizer And Brake Linkage Parts Diagram

60" Garden Tractor, 22hp Kohler

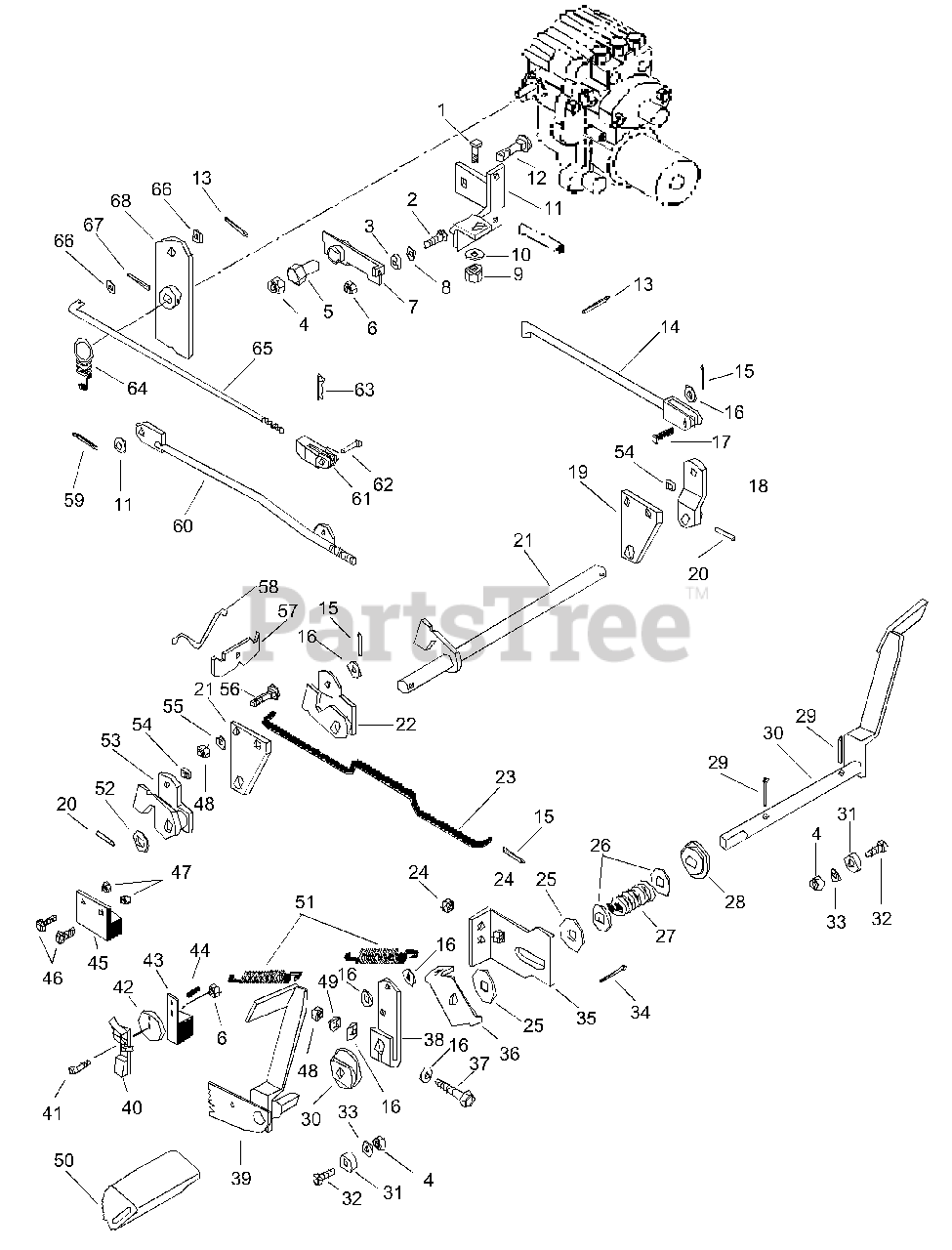

Neutralizer And Brake Linkage Parts Diagram

  • Title

1

Gravely 06220900

Bolt-Round Head Square Neck .500-13 x .25 Grade 5
(Superseded to 06200325)

$5.99

$

In Stock, only 1 left!

0

2

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

3

Gravely 047455

Bearing Ball Double .250 x .638 x .438
(Superseded to 05418000)

$45.99

$

Usually ships in 4-12 days

0

4

Gravely 06529800

Nut-Locking-Center .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 039407

Eccentric
(Superseded to 03039700)

$

$

Not available

6

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 039408

Detent Arm
(Superseded to 03039800)

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 06440600

Washer-Flat-Steel .281 x 1.250 x .048
(Superseded to 06403700)

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 06528200

Nut-Locking .50-13

$3.99

$

In Stock, only 2 left!

0

10

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 039411

Mount Weldment
(Superseded to 03039600)

$

$

Not available

12

Gravely 06221600

Bolt-Round Head Square Neck .31-18 x 2.25
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

14

Gravely 039377

Brake Rod
(Superseded to 03193500)

$66.99

$

In Stock, only 1 left!

0

15

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 9

0

16

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 039378

Clevis Pin .370/.375 x 1 1/8
(Superseded to 01330300)

$

$

Not available

18

Gravely 039379

Brake Arm
(Superseded to 03193800)

$

$

Not available

19

Gravely 039380

Plate
(Superseded to 03150900)

$

$

Not available

20

Gravely 039038

Pin-Groove .250 x 1.25

$

$

Not available

21

Gravely 039399

Brake Shaft
(Superseded to 03194100)

$

$

Not available

22

Gravely 039396

Arm
(Superseded to 03194000)

$

$

Not available

23

Gravely 03096500

Brake Rod

$20.99

$

Usually ships in 4-12 days

0

24

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

25

Gravely 06444800

Washer-Flat-Steel .755 x 2.000 x .125

$4.99

$

Usually ships in 4-12 days

0

26

Gravely 06441500

Washer-Flat-Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, Qty 16

0

27

Gravely 039384

Spring-Compression .148 x 1.23 x 2.53
(Superseded to 08305500)

$

$

Not available

28

Gravely 039383

Bushing-Flange .750 x 1.750 x .875 x 2.125
(Superseded to 05509500)

$3.49

$

Usually ships in 4-12 days

0

29

Gravely 06712700

Pin-Cotter .18 x 1.25

$1.99

$

In Stock, Qty 5

0

30

Gravely 03087500

Left Hand Lever

$

$

Not available

31

Gravely 02513500

Spacer

$

$

Not available

32

Gravely 05947800

Bolt-Hex .31-18 x .875 Grade 5
(Superseded to 05901801)

$2.49

$

Usually ships in 4-12 days

0

33

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

34

Gravely 06707000

Pin-Cotter .09 x 1.0
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

35

Gravely 039386

Neutralizer Plate
(Superseded to 03150200)

$

$

Not available

36

Gravely 039387

Neutralizer Arm
(Superseded to 03150300)

$

$

Not available

37

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

38

Gravely 039388

Arm - Brake
(Superseded to 03150500)

$5.99

$

Usually ships in 4-12 days

0

39

Gravely 03087400

Right Hand Lever

$

$

Not available

40

Gravely 03096300

Brake Latch

$5.99

$

Usually ships in 4-12 days

0

41

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

42

Gravely 03096600

Pivot

$5.99

$

Usually ships in 4-12 days

0

43

Gravely 03096400

Actuator, Switch

$5.99

$

Usually ships in 4-12 days

0

44

Gravely 05803500

Roll Pin

$0.99

$

In Stock, only 3 left!

0

45

Gravely 03095700

Switch-Interlock

$10.99

$

Usually ships in 4-12 days

0

46

Gravely 06116900

Screw-Machine 10-24 x .75
(Superseded to 05901837)

$2.49

$

In Stock, only 1 left!

0

47

Gravely 06530600

Nut-Locking-Nylon 10-24 with Insert

$0.99

$

In Stock, Qty 20+

0

48

Gravely 06529400

Nut-Hex .38-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

49

Gravely 06308800

Washer-Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

50

Gravely 050184

Pedal Cover
(Superseded to 07512100)

$

$

Not available

51

Gravely 036850

Spring-Tension .090 x .75 x 3.50
(Superseded to 08312200)

$34.99

$

In Stock, only 1 left!

0

52

Gravely 06441400

Washer-Flat-Steel .754 x 1.125 x .062
(Superseded to 06401119)

$0.99

$

In Stock, Qty 6

0

53

Gravely 039394

Brake Arm
(Superseded to 03193900)

$6.99

$

Usually ships in 4-12 days

0

54

Gravely 039395

Grommet .125 x .375
(Superseded to 07505500)

$3.49

$

Usually ships in 4-12 days

0

55

Gravely 06306700

Washer-Lock .375 x .130

$3.99

$

In Stock, only 1 left!

0

56

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.0
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

57

Gravely 03193600

Balance Link

$5.99

$

Usually ships in 4-12 days

0

58

Gravely 039397

Clip
(Superseded to 03193700)

$

$

Not available

59

Gravely 06707100

Pin-Cotter .12 x 1.0

$0.99

$

In Stock, Qty 12

0

60

Gravely 039400

Neutralizer Rod
(Superseded to 03040000)

$

$

Not available

61

Gravely 034633

Yoke .31-24 x 2.250
(Superseded to 07014700)

$14.99

$

In Stock, only 1 left!

0

62

Gravely 06811800

Pin-Clevis .312 x .822
(Superseded to 06814000)

$3.99

$

In Stock, only 1 left!

0

63

Gravely 06713500

Pin-Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 7

0

64

Gravely 039401

Spring-Tension .080 x .75 x 2.81
(Superseded to 08319600)

$45.99

$

Usually ships in 4-12 days

0

65

Gravely 039402

Shift Rod
(Superseded to 03040100)

$64.99

$

Usually ships in 4-12 days

0

66

Gravely 06436700

Washer-Flat-Steel .323 x .625 x .062
(Superseded to 06401002)

$1.49

$

In Stock, only 2 left!

0

67

Gravely 039406

Pin-Roll .250 x 1.38
(Superseded to 05803800)

$2.49

$

Usually ships in 4-12 days

0

68

Gravely 039405

Shift Arm
(Superseded to 03039900)

$51.99

$

Usually ships in 4-12 days

0
