987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Neutralizer And Brake Linkage Parts Diagram

60" Garden Tractor, 22hp Kohler

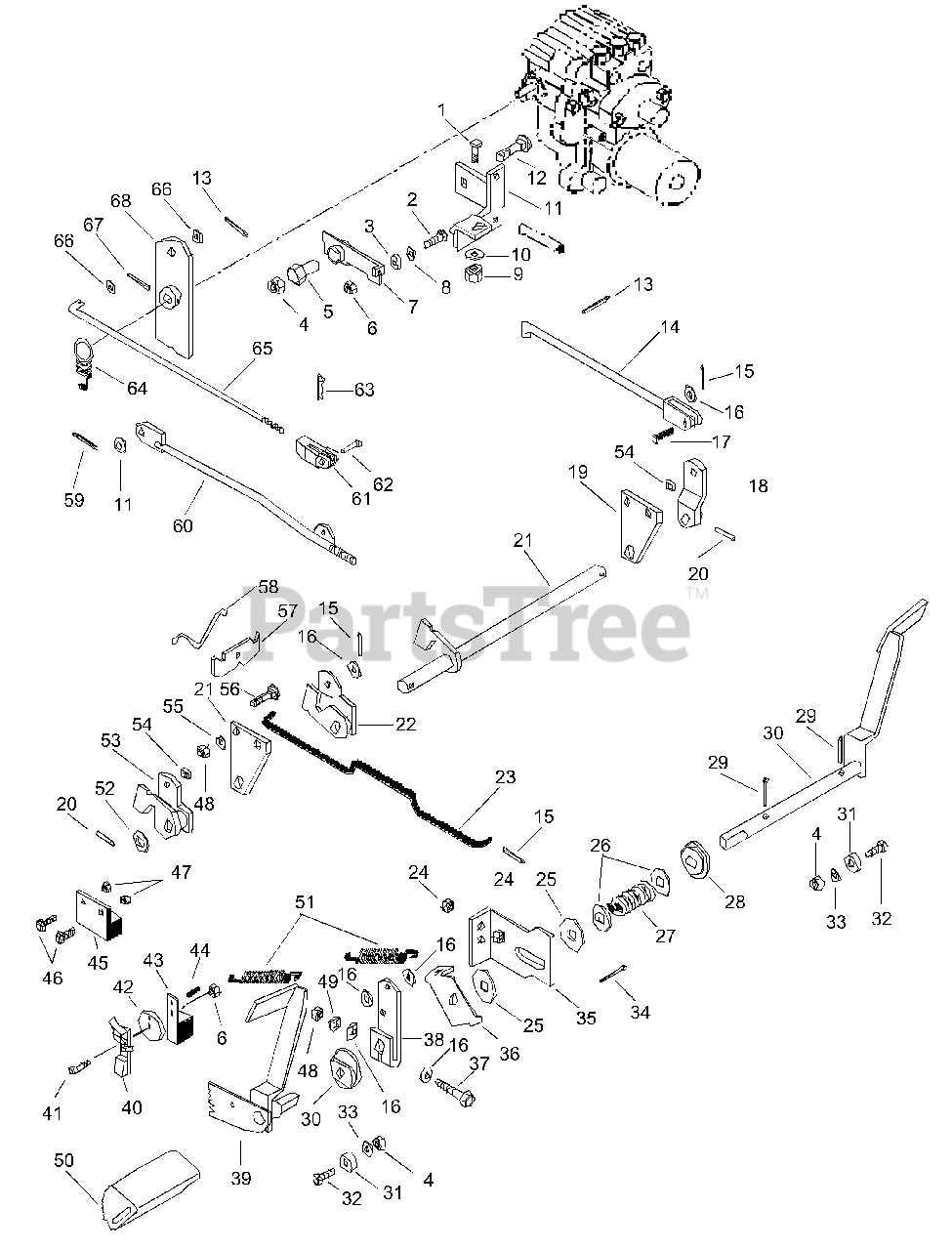

Neutralizer And Brake Linkage Parts Diagram

  • Title

1

Gravely 06220900

BLT-RDHDSQNK .50-13X1.25 G2YW
(Superseded to 06200325)

$6.99

$

Usually ships in 4-12 days

0

2

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

3

Gravely 047455

BRG BALL DBL .250X.638X.438
(Superseded to 05418000)

$

$

Not available

4

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 039407

ECCENTRIC
(Superseded to 03039700)

$

$

Not available

6

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 039408

DETENT ARM
(Superseded to 03039800)

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 06440600

WSHR-FL-STL .281X1.250X.048 BL
(Superseded to 06403700)

$1.99

$

Usually ships in 4-12 days

0

9

Gravely 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, Qty 5

0

10

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 039411

MOUNT WELDMENT
(Superseded to 03039600)

$

$

Not available

12

Gravely 06221600

BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

In Stock, Qty 12

0

13

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

14

Gravely 039377

BRAKE ROD
(Superseded to 03193500)

$66.99

$

Usually ships in 4-12 days

0

15

Gravely 06707300

PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 6

0

16

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 039378

PIN-CLEV .373X1.12 YWZC
(Superseded to 01330300)

$

$

Not available

18

Gravely 039379

BRAKE ARM
(Superseded to 03193800)

$

$

Not available

19

Gravely 039380

PLATE
(Superseded to 03150900)

$

$

Not available

20

Gravely 039038

Pin-Groove .250 x 1.25

$

$

Not available

21

Gravely 039399

BRAKE SHAFT
(Superseded to 03194100)

$

$

Not available

22

Gravely 039396

ARM
(Superseded to 03194000)

$

$

Not available

23

Gravely 03096500

BRAKE ROD

$20.99

$

Usually ships in 4-12 days

0

24

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

25

Gravely 06444800

WSHR-FL-STL .755X2.000X.125 YZ

$5.49

$

Usually ships in 4-12 days

0

26

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

27

Gravely 039384

SG-COMP .148X1.23X2.53 WLD87
(Superseded to 08305500)

$

$

Not available

28

Gravely 039383

BSHG-FLG .750X1.750X.875X2.125
(Superseded to 05509500)

$3.49

$

Usually ships in 4-12 days

0

29

Gravely 06712700

PIN-CTR .18X1.25 EXTPRSQCT YZ

$2.49

$

In Stock, only 2 left!

0

30

Gravely 03087500

L H LEVER

$

$

Not available

31

Gravely 02513500

SPACER .344X1.000X.375

$

$

Not available

32

Gravely 05947800

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.99

$

In Stock, only 2 left!

0

33

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 06707000

PIN-CTR .09X1.00 EXTPRSQCT YZ
(Superseded to 121224)

$0.99

$

In Stock, Qty 11

0

35

Gravely 039386

NEUTRALIZER PLATE
(Superseded to 03150200)

$

$

Not available

36

Gravely 039387

NEUTRALIZER ARM
(Superseded to 03150300)

$

$

Not available

37

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

38

Gravely 039388

ARM-BRAKE
(Superseded to 03150500)

$5.99

$

Usually ships in 4-12 days

0

39

Gravely 03087400

R H LEVER

$

$

Not available

40

Gravely 03096300

BRAKE LOCK

$5.99

$

Usually ships in 4-12 days

0

41

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

42

Gravely 03096600

PIVOT

$5.99

$

Usually ships in 4-12 days

0

43

Gravely 03096400

ACTUATOR,SWITCH

$5.99

$

Usually ships in 4-12 days

0

44

Gravely 05803500

PIN-ROLL .125X.50

$0.99

$

In Stock, Qty 10

0

45

Gravely 03095700

SWITCH, INTERLOCK NC

$9.99

$

Usually ships in 4-12 days

0

46

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

47

Gravely 06530600

NUT-LK-DUAL FACE 10-24 YWZC

$0.99

$

In Stock, Qty 10

0

48

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 050184

PEDAL COVER
(Superseded to 07512100)

$

$

Not available

51

Gravely 036850

SG-TENS .090X.75X3.50 WLD 34
(Superseded to 08312200)

$35.99

$

Usually ships in 4-12 days

0

52

Gravely 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$1.49

$

In Stock, Qty 14

0

53

Gravely 039394

BRAKE ARM
(Superseded to 03193900)

$6.99

$

Usually ships in 4-12 days

0

54

Gravely 039395

GROMMET
(Superseded to 07505500)

$3.99

$

Usually ships in 4-12 days

0

55

Gravely 06306700

WSHR-LK .375X.130 YWZC

$3.99

$

In Stock, only 1 left!

0

56

Gravely 06215500

BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

57

Gravely 03193600

BALANCE LINK

$5.99

$

Usually ships in 4-12 days

0

58

Gravely 039397

CLIP
(Superseded to 03193700)

$

$

Not available

59

Gravely 06707100

PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

60

Gravely 039400

NEUTRALIZER ROD
(Superseded to 03040000)

$

$

Not available

61

Gravely 034633

YOKE, .312-24 X 2.25
(Superseded to 07014700)

$15.99

$

Usually ships in 4-12 days

0

62

Gravely 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$

$

Not available

63

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

64

Gravely 039401

SG-TENS .080X.75X2.81 WLD 20
(Superseded to 08319600)

$

$

Not available

65

Gravely 039402

SHIFT ROD
(Superseded to 03040100)

$118.99

$

Usually ships in 4-12 days

0

66

Gravely 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.49

$

Usually ships in 4-12 days

0

67

Gravely 039406

PIN-ROLL .250X1.38
(Superseded to 05803800)

$

$

Not available

68

Gravely 039405

SHIFT ARM
(Superseded to 03039900)

$

$

Not available
