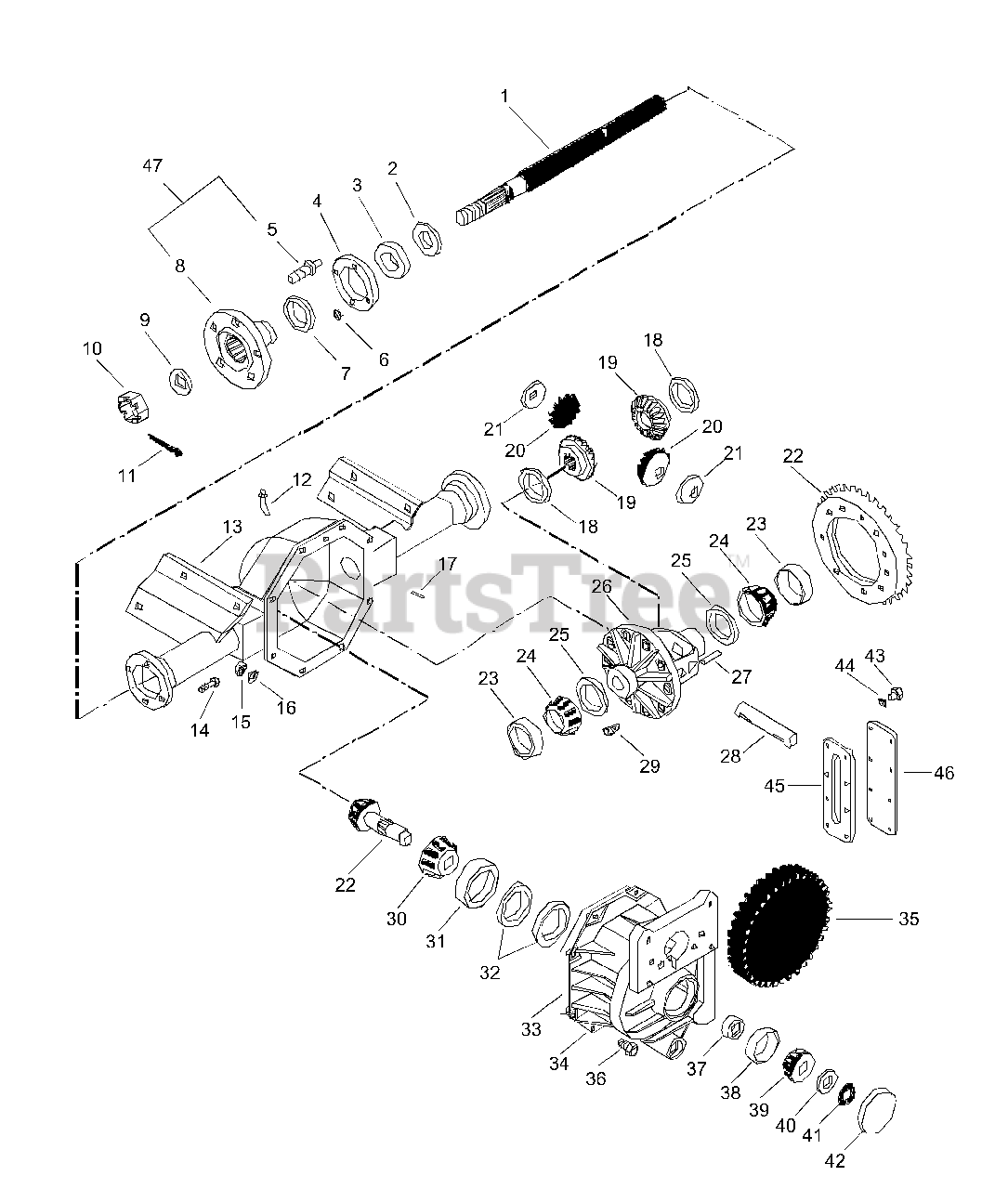

987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Rear Axle Parts Diagram

60" Garden Tractor, 22hp Kohler

Rear Axle Parts Diagram

  • Title

1

Gravely 039183

AXLE SHAFT LH
(Superseded to 03045500)

$

$

Not available

Gravely 039182

AXLE SHAFT RH
(Superseded to 03045600)

$

$

Not available

2

Gravely 039184

SEAL 1.183X1.183X.265
(Superseded to 05609300)

$36.99

$

Usually ships in 4-12 days

0

3

Gravely 039185

BRG-CONE 46MMX17MM
(Superseded to 05412900)

$184.99

$

Usually ships in 4-12 days

0

4

Gravely 039186

GASKET-SEE LETTER L-307
(Superseded to 03164200)

$

$

Not available

5

Gravely 039187

CARRIER LUG BOLT
(Superseded to 03006600)

$

$

Not available

6

Gravely 039188

NUT-LK-FLG .375-24 GR5 YWZC
(Superseded to 06542200)

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 039189

FELT SEAL
(Superseded to 03164100)

$

$

Not available

8

Gravely 03045300

AXLE FLANGE

$

$

Not available

9

Gravely 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$4.99

$

In Stock, Qty 6

0

10

Gravely 06538200

NUT-SL .875-14 YWZC

$

$

Not available

11

Gravely 06713800

PIN-CTR .15X1.50 YWZC

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 039703

VENT
(Superseded to 03074300)

$

$

Not available

13

Gravely 03043200

LOWER HOUSING

$

$

Not available

14

Gravely 039195

BLT-HEX .31-24X1.25 GR8
(Superseded to 05919300)

$

$

Not available

15

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

16

Gravely 138538

WSHR-LOCK INT .31 YWZC
(Superseded to 06310500)

$0.99

$

In Stock, Qty 8

0

17

Gravely 039196

DOWEL PIN
(Superseded to 03163700)

$

$

Not available

18

Gravely 039197

WSHR-FL-STL 1.578X2.375X.031
(Superseded to 06415400)

$

$

Not available

19

Gravely 039198

SIDE GEAR
(Superseded to 03045400)

$

$

Not available

20

Gravely 039199

BEVEL GEAR
(Superseded to 03165200)

$44.99

$

Usually ships in 4-12 days

0

21

Gravely 039200

WSHR-BLVL .703X1.593X.031
(Superseded to 06415500)

$

$

Not available

22

Gravely 039201

PINION & GEAR
(Superseded to 53115800)

$

$

Not available

23

Gravely 039202

BRG-CUP 2.892X.580
(Superseded to 05413100)

$

$

Not available

24

Gravely 039203

BRG-CONE 1.63X.78
(Superseded to 05413000)

$

$

Not available

25

Gravely 039204

SHIM
(Superseded to 03164500)

$

$

Not available

Gravely 039205

SHIM
(Superseded to 03164600)

$

$

Not available

Gravely 039206

SHIM
(Superseded to 03164700)

$

$

Not available

Gravely 039207

SHIM
(Superseded to 03164800)

$

$

Not available

26

Gravely 039208

DIFFERENTIAL CASE
(Superseded to 03164900)

$

$

Not available

27

Gravely 039209

LOCK PIN
(Superseded to 03165400)

$

$

Not available

28

Gravely 039210

PINION SHAFT
(Superseded to 03165300)

$

$

Not available

29

Gravely 039211

BLT .38-24X.812 DANA
(Superseded to 07004300)

$

$

Not available

30

Gravely 039212

BRG-CONE 1.188X.84
(Superseded to 05415600)

$

$

Not available

31

Gravely 039213

BRG-CUP 2.532X.656
(Superseded to 05415700)

$9.49

$

Usually ships in 4-12 days

0

32

Gravely 039220

SHIM
(Superseded to 03043500)

$

$

Not available

Gravely 039221

SHIM
(Superseded to 03043600)

$

$

Not available

Gravely 039222

SHIM
(Superseded to 03043700)

$

$

Not available

Gravely 039223

SHIM
(Superseded to 03043800)

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 039504

GASKET
(Superseded to 03163800)

$

$

Not available

34

Gravely 041174

FRONT HOUSING W/BEARING CAP &
(Superseded to 53122100)

$

$

Not available

35

Gravely 039216

SPUR GEAR
(Superseded to 03165700)

$274.99

$

Usually ships in 4-12 days

0

36

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 039217

FRONT PINION BEARING SPACER
(Superseded to 03165800)

$

$

Not available

38

Gravely 039218

BRG-CUP 1.968X.550
(Superseded to 05413400)

$17.99

$

Usually ships in 4-12 days

0

39

Gravely 039219

BRG-CONE .844X.72
(Superseded to 05415800)

$

$

Not available

40

Gravely 039236

SHIM ASSEMBLY
(Superseded to 53115900)

$

$

Not available

41

Gravely 05701300

RG-RTNG-EXT .813X.042
(Superseded to 05716400)

$

$

Not available

42

Gravely 039214

CUP PLUG
(Superseded to 03167300)

$

$

Not available

43

Gravely 039133

SCR-TAP 5HX-0.8X16MM H-FL-YWZC
(Superseded to 07415100)

$3.99

$

Usually ships in 4-12 days

0

44

Gravely 036458

WSHR-LK-EXT 12X.025 PL
(Superseded to 06302400)

$

$

Not available

45

Gravely 039134

GASKET
(Superseded to 03116700)

$

$

Not available

46

Gravely 03087100

SIDE COVER

$

$

Not available

47

Gravely 039191

AXLE FLANGE ASSEMBLY
(Superseded to 53121800)

Note: (Contains One of Item 8 and Five of Item 5)

$

$

Not available
