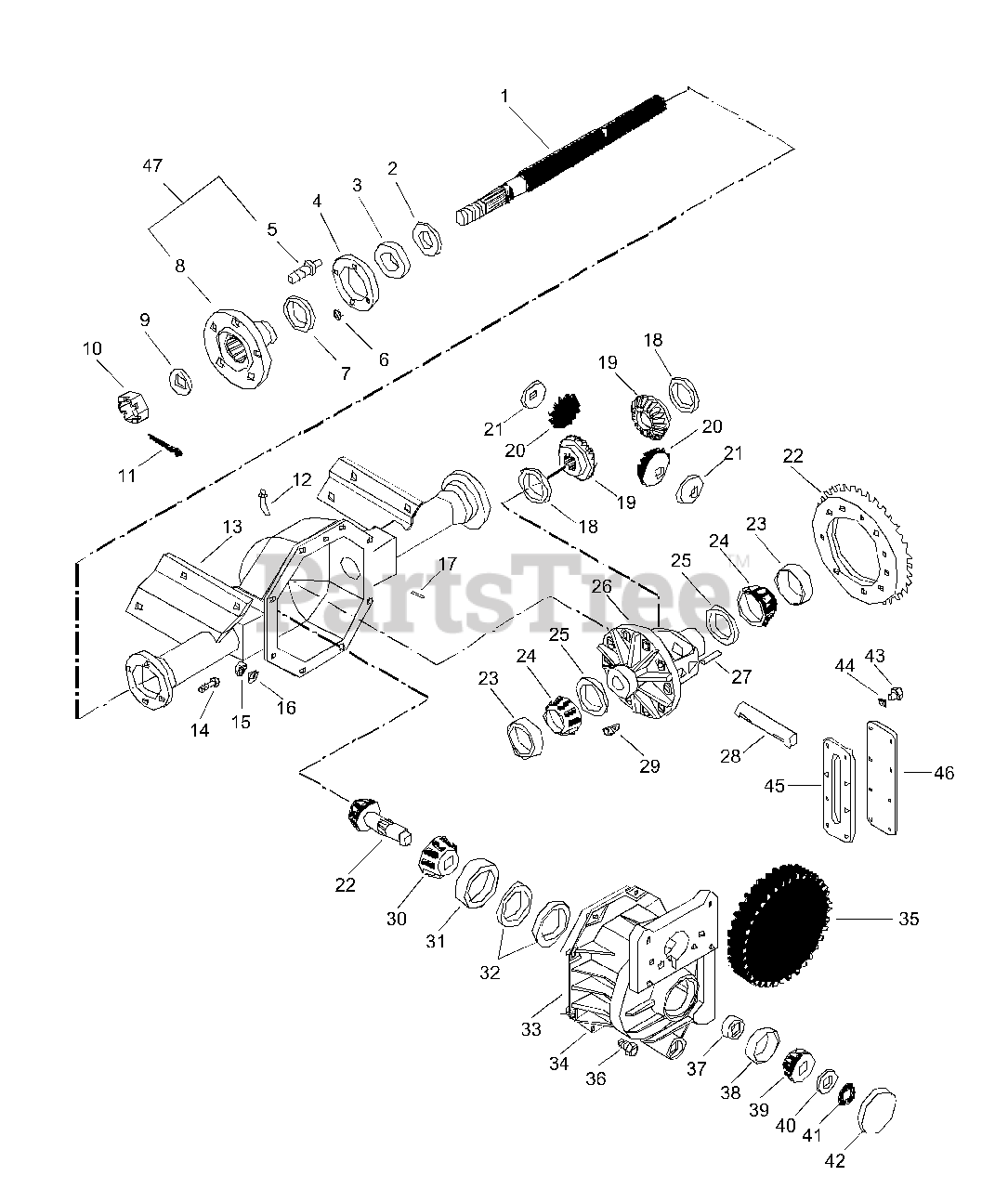

987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Rear Axle Parts Diagram

60" Garden Tractor, 22hp Kohler

Rear Axle Parts Diagram

  • Title

1

Gravely 039183

Axle Shaft Left Hand
(Superseded to 03045500)

$

$

Not available

1

Gravely 039182

Axle Shaft Right Hand
(Superseded to 03045600)

$

$

Not available

2

Gravely 039184

Seal 1.183 x 1.183 x .265
(Superseded to 05609300)

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 039185

Bearing-Cone 46MM x 17MM
(Superseded to 05412900)

$180.99

$

Usually ships in 4-12 days

0

4

Gravely 039186

Gasket-Wheel Bearing
(Superseded to 03164200)

$

$

Not available

5

Gravely 039187

Carrier Lug Bolt
(Superseded to 03006600)

$

$

Not available

6

Gravely 039188

Nut-Locking-Flange .312-24
(Superseded to 06542200)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 039189

Felt Seal
(Superseded to 03164100)

$

$

Not available

8

Gravely 03045300

Axle Flange

$

$

Not available

9

Gravely 06444700

Washer-Flat-Steel .875 x 1.500 x .1196
(Superseded to 06401207)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06538200

Nut-Slotted .875-14

$

$

Not available

11

Gravely 06713800

Pin-Cotter .15 x 1.50

$3.99

$

In Stock, Qty 5

0

12

Gravely 039703

Vent
(Superseded to 03074300)

$

$

Not available

13

Gravely 03043200

Lower Housing

$

$

Not available

14

Gravely 039195

Bolt-Hex .31-24 x 1.25 Grade 8
(Superseded to 05919300)

$

$

Not available

15

Gravely 120376

Nut-Hex .312-18 Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 14

0

16

Gravely 138538

Washer-Lock Internal .313 x .030
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

17

Gravely 039196

Dowel Pin
(Superseded to 03163700)

$

$

Not available

18

Gravely 039197

Washer-Flat-Steel 1.578 x 2.375 x .031
(Superseded to 06415400)

$

$

Not available

19

Gravely 039198

Side Gear
(Superseded to 03045400)

$

$

Not available

20

Gravely 039199

Bevel Gear
(Superseded to 03165200)

$44.99

$

Usually ships in 4-12 days

0

21

Gravely 039200

Washer-Bellville .703 x 1.593 x .031
(Superseded to 06415500)

$

$

Not available

22

Gravely 039201

Pinion & Gear
(Superseded to 53115800)

$

$

Not available

23

Gravely 039202

Bearing-Cup 2.892 x .580
(Superseded to 05413100)

$

$

Not available

24

Gravely 039203

Bearing-Cone 1.63 x .78
(Superseded to 05413000)

$

$

Not available

25

Gravely 039204

Shim
(Superseded to 03164500)

$

$

Not available

25

Gravely 039205

Shim
(Superseded to 03164600)

$

$

Not available

25

Gravely 039206

Shim
(Superseded to 03164700)

$

$

Not available

25

Gravely 039207

Shim
(Superseded to 03164800)

$

$

Not available

26

Gravely 039208

Differential Case
(Superseded to 03164900)

$

$

Not available

27

Gravely 039209

Lock Pin
(Superseded to 03165400)

$

$

Not available

28

Gravely 039210

Pinion Shaft
(Superseded to 03165300)

$

$

Not available

29

Gravely 039211

Bolt .38-24 x .812
(Superseded to 07004300)

$

$

Not available

30

Gravely 039212

Bearing-Cone 1.188 x .84
(Superseded to 05415600)

$

$

Not available

31

Gravely 039213

Bearing-Cup 2.253 x .656
(Superseded to 05415700)

$9.49

$

Usually ships in 4-12 days

0

32

Gravely 039220

Shim
(Superseded to 03043500)

$

$

Not available

32

Gravely 039221

Shim
(Superseded to 03043600)

$

$

Not available

32

Gravely 039222

Shim
(Superseded to 03043700)

$

$

Not available

32

Gravely 039223

Shim
(Superseded to 03043800)

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 039504

Gasket
(Superseded to 03163800)

$

$

Not available

34

Gravely 041174

Front Housing w/Bearing Cap & Screw
(Superseded to 53122100)

$

$

Not available

35

Gravely 039216

Spur Gear
(Superseded to 03165700)

$274.99

$

Usually ships in 4-12 days

0

36

Gravely 180079

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, only 4 left!

0

37

Gravely 039217

Front Pinion Bearing Spacer
(Superseded to 03165800)

$

$

Not available

38

Gravely 039218

Bearing-Cup 1.968 x .550
(Superseded to 05413400)

$17.99

$

Usually ships in 4-12 days

0

39

Gravely 039219

Bearing-Cone .844 x .72
(Superseded to 05415800)

$

$

Not available

40

Gravely 039236

Shim Assembly
(Superseded to 53115900)

$

$

Not available

41

Gravely 05701300

Ring-Retaining-External .813 x .042
(Superseded to 05716400)

$

$

Not available

42

Gravely 039214

Cup Plug
(Superseded to 03167300)

$

$

Not available

43

Gravely 039133

Screw-Tapping 5HX-0.8 x 16MM
(Superseded to 07415100)

$3.49

$

Usually ships in 4-12 days

0

44

Gravely 036458

Washer-Lock External 12 x .025
(Superseded to 06302400)

$

$

Not available

45

Gravely 039134

Gasket
(Superseded to 03116700)

$14.99

$

Usually ships in 4-12 days

0

46

Gravely 03087100

Side Cover

$

$

Not available

47

Gravely 039191

Axle Flange Assembly
(Superseded to 53121800)

Note: (Contains One of Item 8 and Five of Item 5)

$

$
