987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Rear Power Take Off (PTO) Parts Diagram

60" Garden Tractor, 22hp Kohler

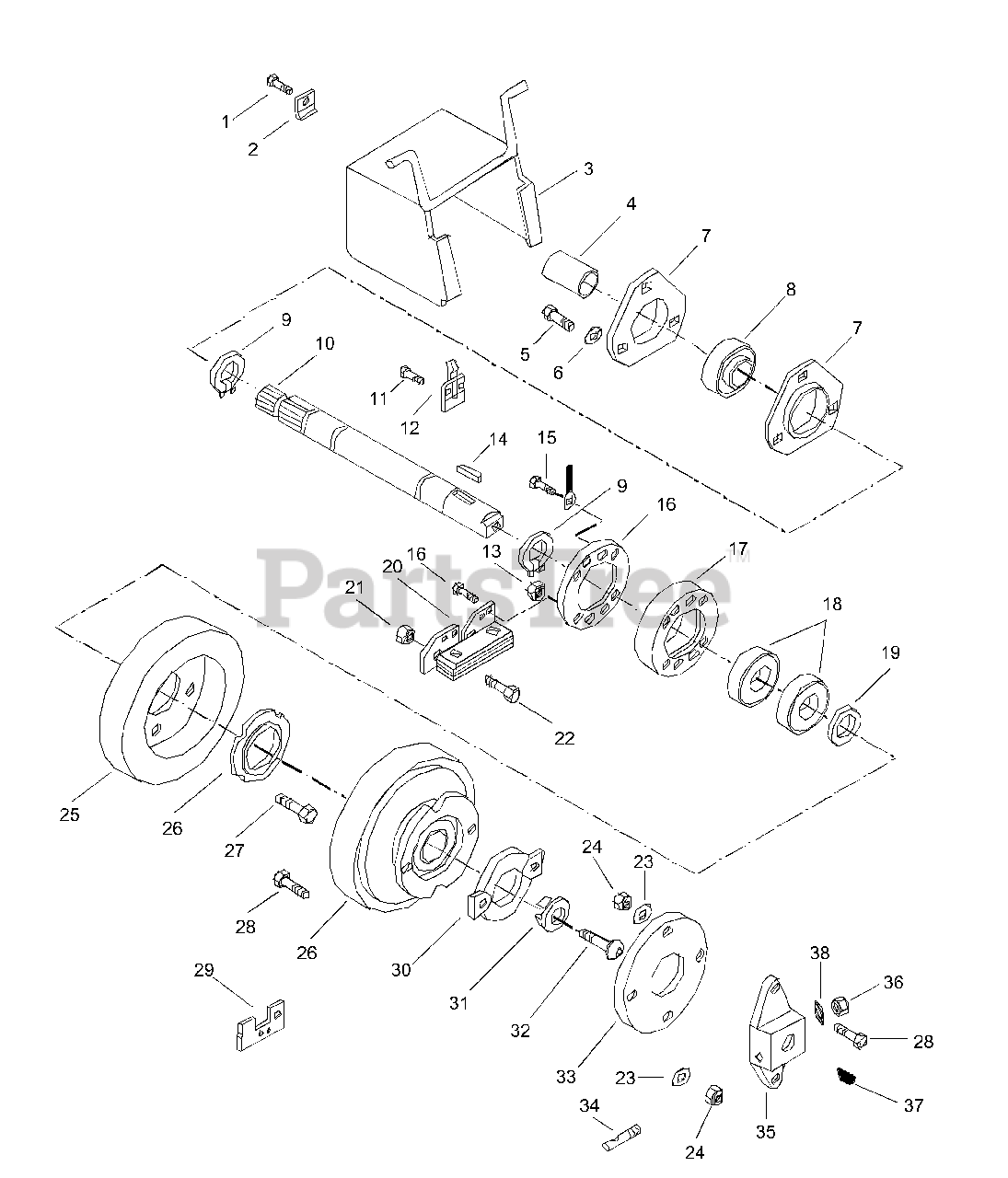

Rear Power Take Off (PTO) Parts Diagram

  • Title

1

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 039431

CLIP
(Superseded to 03016400)

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 03016300

PTO SHIELD

$

$

Not available

4

Gravely 039163

SHAFT COVER
(Superseded to 07506000)

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

7

Gravely 03102000

BEARING FLANGE

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 046316

BRG/W COLLAR 1.0 X 2.047 X.844
(Superseded to 05426200)

$50.99

$

In Stock, Qty 11

0

9

Gravely 050203

RG-RTNG-EXT 1.00X.078
(Superseded to 05707300)

$3.49

$

In Stock, Qty 9

0

10

Gravely 039436

SHAFT
(Superseded to 03036700)

$419.99

$

Usually ships in 4-12 days

0

11

Gravely 07412100

SCR-TAP 10-24X.375 HWH YZ TR

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 039435

SNAP FASTENER
(Superseded to 03130500)

$

$

Not available

13

Gravely 06530600

NUT-LK-DUAL FACE 10-24 YWZC

$0.99

$

In Stock, Qty 10

0

14

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 12

0

15

Gravely 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

$3.99

$

In Stock, Qty 5

0

16

Gravely 039443

RING
(Superseded to 03036500)

$

$

Not available

17

Gravely 039444

BEARING MOUNT
(Superseded to 03036400)

$

$

Not available

18

Gravely 032050

BRG-BALL 1.0X2.0X.56 (1641)
(Superseded to 05400722)

$19.99

$

In Stock, Qty 20+

0

19

Gravely 06444900

WSHR-FL-STL 1.031X1.375X.055YZ

$

$

Not available

20

Gravely 53121700

TORQUE BRACKET ASSEMBLY

$211.99

$

Usually ships in 4-12 days

0

21

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

22

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

23

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 039446

ELECTRIC CLUTCH
(Superseded to 03199000)

$

$

Not available

26

Gravely 039447

BEARING FLANGE
(Superseded to 03036600)

$

$

Not available

27

Gravely 06117500

SCR-MCH 10-24X1.25 SL PAN YWZC

$

$

Not available

28

Gravely 05947800

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.99

$

In Stock, only 2 left!

0

29

Gravely 03076900

CONNECTOR MOUNTING CLIP
(Superseded to 53121900)

$

$

Not available

30

Gravely 039449

PILOT PLATE
(Superseded to 03015800)

$

$

Not available

31

Gravely 039450

RETAINER
(Superseded to 03015700)

$

$

Not available

32

Gravely 039451

BLT-BTHD .38-16X1.25 GR5
(Superseded to 07006300)

$2.99

$

Usually ships in 4-12 days

0

33

Gravely 039452

SPACER COUPLING
(Superseded to 03199300)

$

$

Not available

34

Gravely 039454

LOCK STUD
(Superseded to 03013900)

$19.99

$

Usually ships in 4-12 days

0

35

Gravely 039453

COUPLING
(Superseded to 03198800)

$

$

Not available

36

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 106751

KEY-WDRF .188X.75X.313 SAE 9
(Superseded to 06600300)

$1.49

$

In Stock, Qty 13

0

38

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0
