987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Speed Selector Parts Diagram

60" Garden Tractor, 22hp Kohler

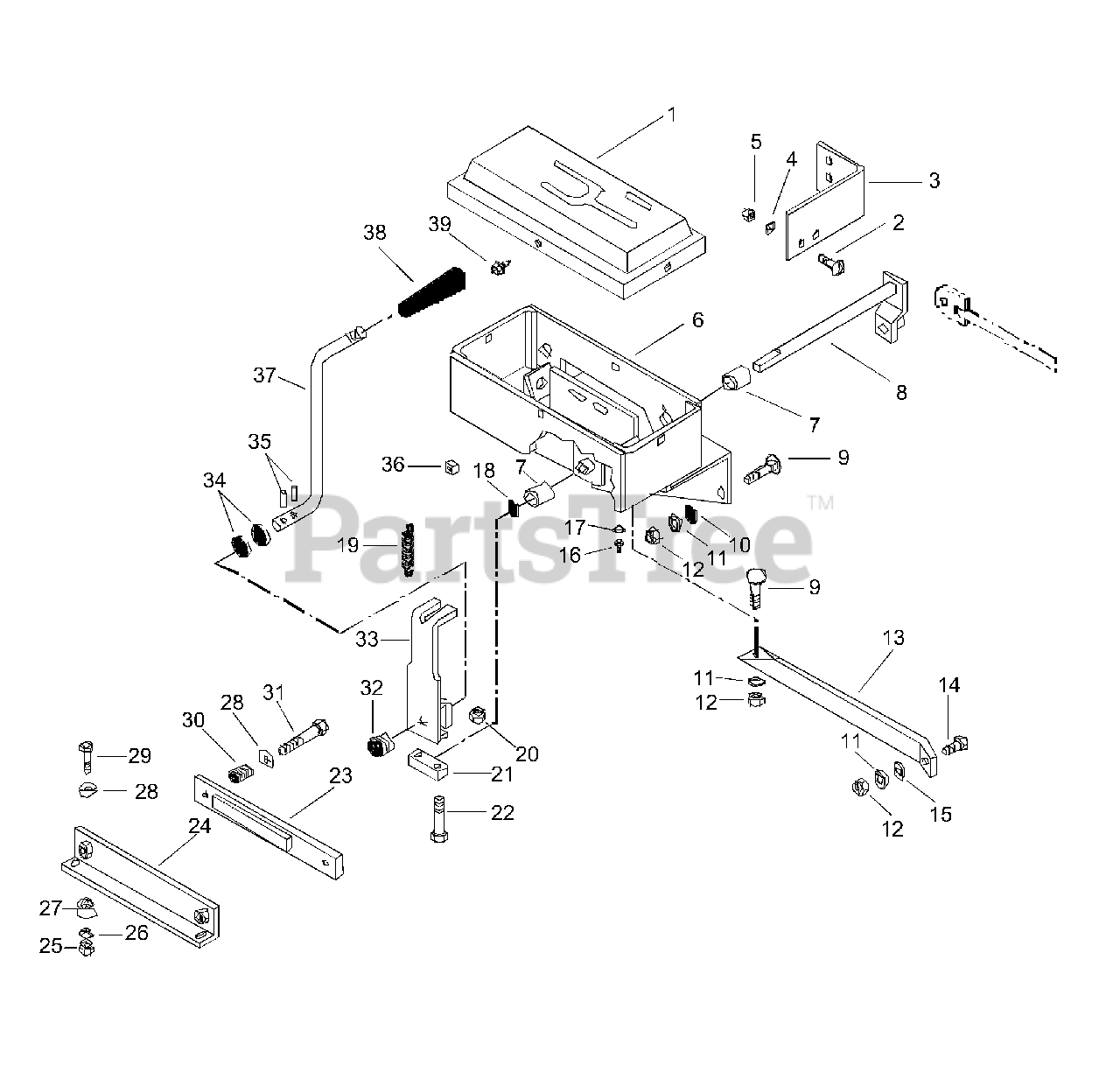

Speed Selector Parts Diagram

  • Title

1

Gravely 53127000

Control Console w/Decal

$

$

Not available

2

Gravely 06116700

Screw-Machine 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 03090400

Bracket-Switch

$

$

Not available

4

Gravely 06308100

Washer-Lock 10 x .047

$1.49

$

Usually ships in 4-12 days

0

5

Gravely 06536600

Nut-Hex 10-24

$0.99

$

In Stock, Qty 5

0

6

Gravely 039123

Control Box
(Superseded to 03037300)

$

$

Not available

7

Gravely 039121

Bushing-Sleeve .625 x .750 x 1.000
(Superseded to 05502400)

$

$

Not available

8

Gravely 039122

Shift Shaft
(Superseded to 03039100)

$

$

Not available

9

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.0
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

10

Gravely 06435900

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

11

Gravely 06308800

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 16

0

12

Gravely 06529400

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, Qty 7

0

13

Gravely 039124

Brace
(Superseded to 03102400)

$

$

Not available

14

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

15

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

17

Gravely 06307000

Washer-Lock .250 x .047

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 06436100

Washer-Flat-Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 08326700

Spring-Tension .072 x .565 x 1.87

$20.99

$

In Stock, only 1 left!

0

20

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 039143

Strap
(Superseded to 03039400)

$

$

Not available

22

Gravely 05952400

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 5

0

23

Gravely 039140

Left Hand Friction Brake
(Superseded to 03156600)

$77.99

$

Usually ships in 4-12 days

0

24

Gravely 039137

Right Hand Friction Brake
(Superseded to 03039300)

$77.99

$

Usually ships in 4-12 days

0

25

Gravely 06529200

Nut-Hex .312-18 Grade 2
(Superseded to 06500938)

$0.99

$

In Stock, Qty 14

0

26

Gravely 06307400

Washer-Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, only 3 left!

0

27

Gravely 039136

Spacer .344 x .750 x .625 x .125
(Superseded to 03039500)

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

30

Gravely 039141

Spring-Compression .093 x .59 x 1.50
(Superseded to 08312500)

$14.99

$

Usually ships in 4-12 days

0

31

Gravely 06117400

Screw-Machine .31-18 x 2.75

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 039048

Grommet .125 x .438
(Superseded to 07506600)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 039144

Lever
(Superseded to 03039200)

$

$

Not available

34

Gravely 06441100

Washer-Flat-Steel .520 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, Qty 15

0

35

Gravely 05800500

Pin-Roll .188 x .88

$1.99

$

In Stock, Qty 5

0

36

Gravely 039149

Plastic Grommet
(Superseded to 07507600)

$0.99

$

In Stock, Qty 10

0

37

Gravely 03086700

Shift Rod

$99.99

$

Usually ships in 4-12 days

0

38

Gravely 041161

Knob
(Superseded to 07514500)

$23.99

$

Usually ships in 4-12 days

0

39

Gravely 07406400

Screw-Tapping 10-12 x .50

$3.49

$

Usually ships in 4-12 days

0
