987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Speed Selector Parts Diagram

60" Garden Tractor, 22hp Kohler

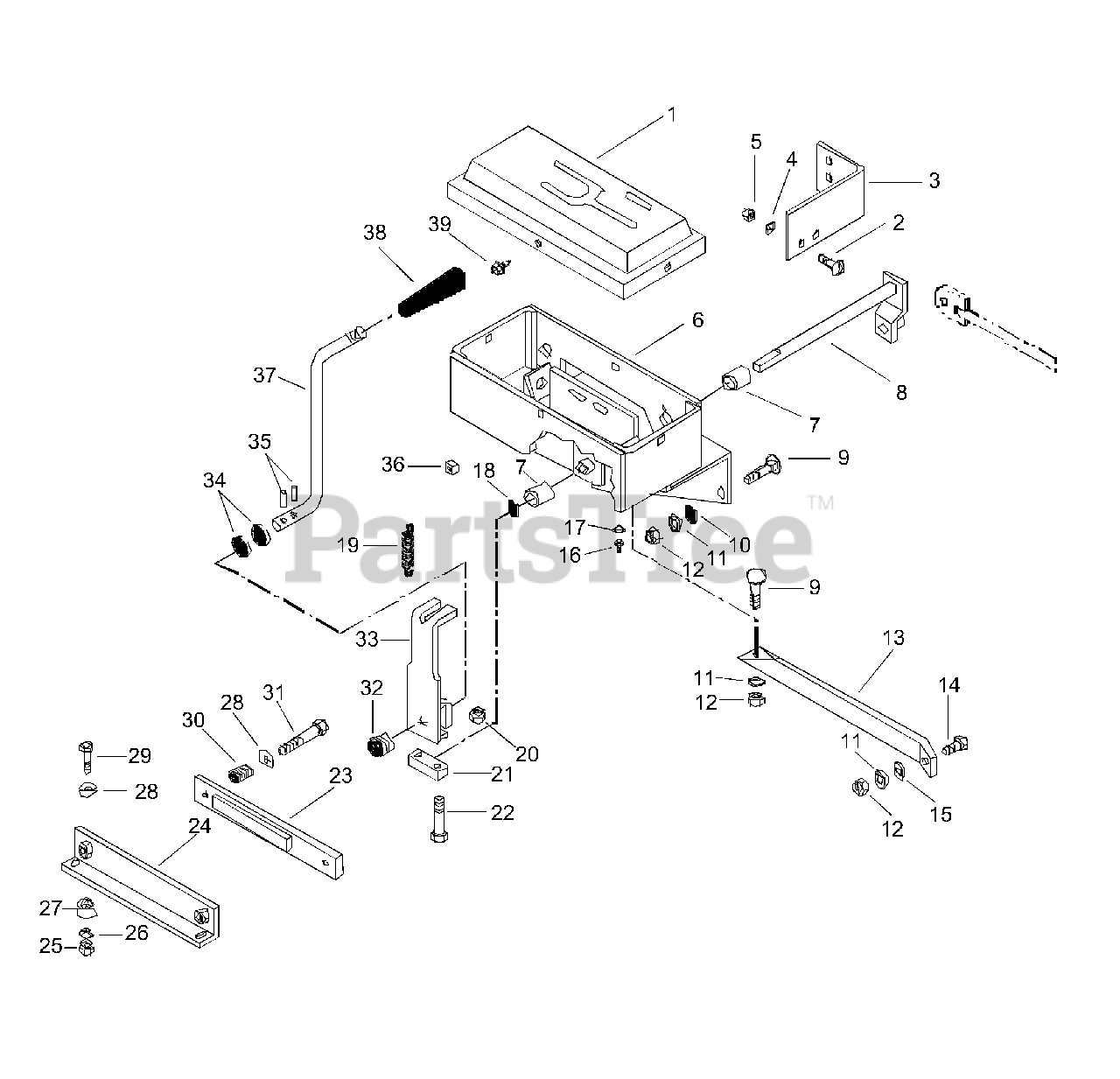

Speed Selector Parts Diagram

  • Title

1

Gravely 53127000

CONTROL CONSOLE WITH COVER

$

$

Not available

2

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 03090400

BRACKET - SWITCH

$

$

Not available

4

Gravely 06308100

WSHR-LK #10X.047 REG YWZC

$1.99

$

Usually ships in 4-12 days

0

5

Gravely 06536600

NUT-HEX 10-24 YWZC

$0.99

$

In Stock, only 3 left!

0

6

Gravely 039123

CONTROL BOX
(Superseded to 03037300)

$

$

Not available

7

Gravely 039121

BSHG-SLV .625X.750X1.000
(Superseded to 05502400)

$

$

Not available

8

Gravely 039122

SHIFT SHAFT
(Superseded to 03039100)

$

$

Not available

9

Gravely 06215500

BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 039124

BRACE
(Superseded to 03102400)

$

$

Not available

14

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

15

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

17

Gravely 06307000

WSHR-LK .250X.047 LT YWZC

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 08326700

SG-TENS .072X.565X1.87

$21.99

$

Usually ships in 4-12 days

0

20

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 039143

STRAP
(Superseded to 03039400)

$

$

Not available

22

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

23

Gravely 039140

L. H. FRICTION BRAKE
(Superseded to 03156600)

$

$

Not available

24

Gravely 039137

R.H. FRICTION BRAKE
(Superseded to 03039300)

$

$

Not available

25

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

26

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

27

Gravely 039136

SPACER .344X.750X.625X.500
(Superseded to 03039500)

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 12

0

30

Gravely 039141

SG-COMP .093X.59X1.50
(Superseded to 08312500)

$

$

Not available

31

Gravely 06117400

SCR-MCH .31-18X2.75 SLRH YWZC

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 039048

GROMMET .438ID X .688 OD
(Superseded to 07506600)

$

$

Not available

33

Gravely 039144

LEVER
(Superseded to 03039200)

$

$

Not available

34

Gravely 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.99

$

In Stock, Qty 20+

0

35

Gravely 05800500

PIN-ROLL .188X.88

$2.49

$

In Stock, only 1 left!

0

36

Gravely 039149

PLASTIC GROMMET
(Superseded to 07507600)

$0.99

$

In Stock, Qty 9

0

37

Gravely 03086700

SHIFT ROD

$103.99

$

Usually ships in 4-12 days

0

38

Gravely 041161

KNOB
(Superseded to 07514500)

$

$

Not available

39

Gravely 07406400

SCR-TAP 10-12X.50 CRPH PL A BL

$3.99

$

Usually ships in 4-12 days

0
