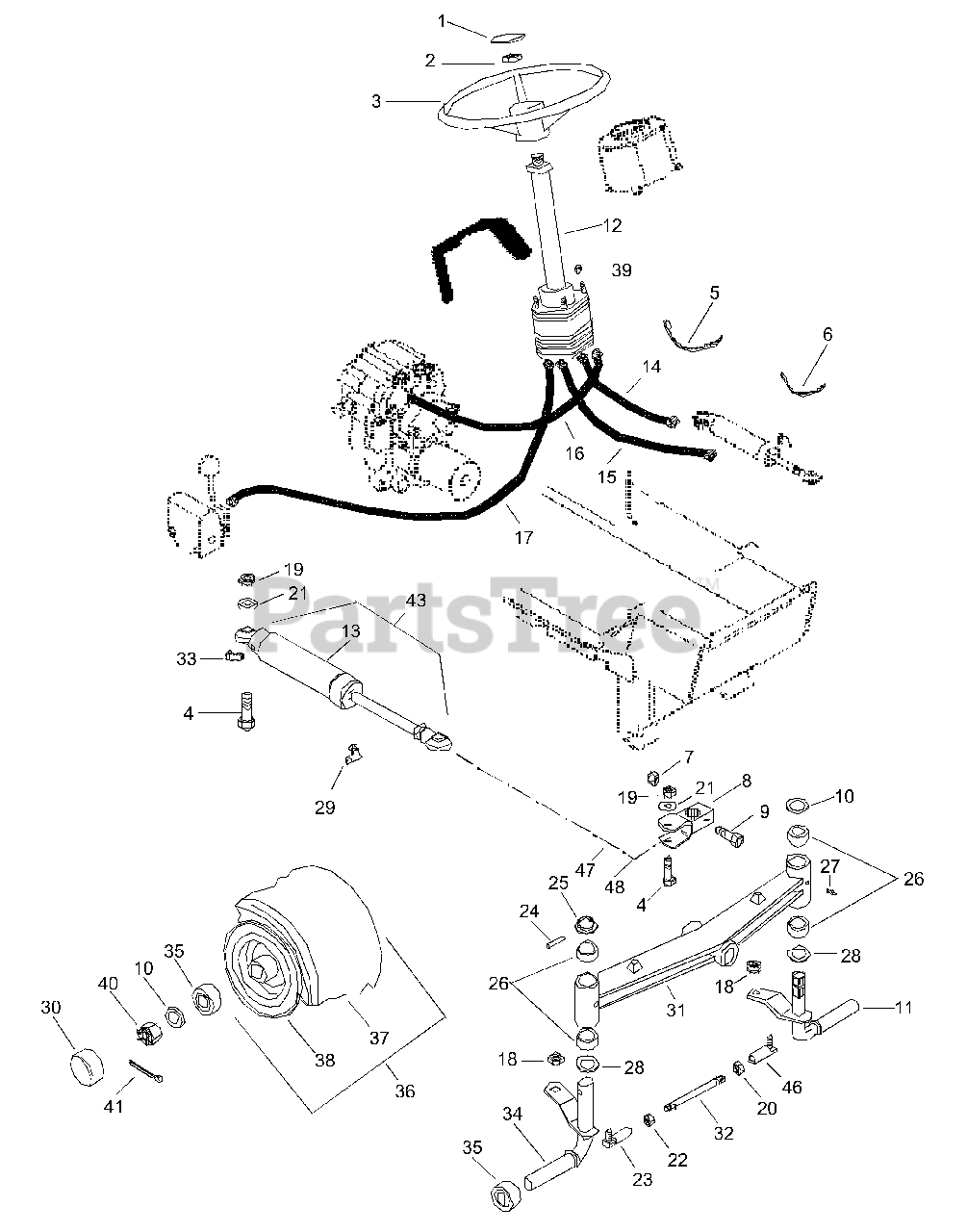

987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Steering Parts Diagram

60" Garden Tractor, 22hp Kohler

Steering Parts Diagram

  • Title

1

Gravely 03049500

DOME PLUG

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 039643

NUT-LK-NYL .625-18 YWZC
(Superseded to 06530300)

$4.99

$

In Stock, Qty 8

0

3

Gravely 03048900

STEERING WHEEL

$197.99

$

Usually ships in 4-12 days

0

4

Gravely 05967200

BLT-HEX .62-18X2.00 GR5 YWZC

$

$

Not available

5

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

6

Gravely 04003800

TIE WRAP

$

$

Not available

7

Gravely 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, Qty 5

0

8

Gravely 044827

STEERING ARM
(Superseded to 03058400)

$

$

Not available

9

Gravely 044828

LOCK BOLT
(Superseded to 03058500)

$

$

Not available

10

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

11

Gravely 044829

SPINDLE LH
(Superseded to 03083100)

$265.99

$

In Stock, only 1 left!

0

12

Gravely 03090600

STEERING UNIT - HYD.

$

$

Not available

13

Gravely 03094400

CYLINDER, HYD 2 BORE 3.87 STR.

$

$

Not available

14

Gravely 03093500

HYDRAULIC HOSE 31.5

$

$

Not available

15

Gravely 03093400

HYDRAULIC HOSE 35.75

$

$

Not available

16

Gravely 03089800

HOSE - HYDRAULIC 39.75

$112.99

$

Usually ships in 4-12 days

0

17

Gravely 03090100

HOSE - HYDRAULIC 48.00

$

$

Not available

18

Gravely 06530000

NUT-LK-CTR .50-20 YWZC

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 039643

NUT-LK-NYL .625-18 YWZC
(Superseded to 06530300)

$4.99

$

In Stock, Qty 8

0

20

Gravely 06538300

NUT-JAM .50-20 LH GR2 YWZC

$

$

Not available

21

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 03112900

BALL JOINT R.H.

$37.99

$

In Stock, only 2 left!

0

24

Gravely 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 5

0

25

Gravely 039471

SPINDLE CAP
(Superseded to 03008800)

$

$

Not available

26

Gravely 039648

BSHG-SLV 1.000X1.125X.875
(Superseded to 05509100)

$

$

Not available

27

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

28

Gravely 039649

PLASTIC WASHER
(Superseded to 07506700)

$

$

Not available

29

Gravely 039682

ADAPTER 45 9/16 TO 1/4
(Superseded to 03106800)

$

$

Not available

30

Gravely 039516

FRONT HUB CAP
(Superseded to 07508900)

$

$

Not available

31

Gravely 042707

FRONT AXLE ASSY
(Superseded to 53123200)

$

$

Not available

32

Gravely 039497

TIE ROD
(Superseded to 03116900)

$77.99

$

Usually ships in 4-12 days

0

33

Gravely 03093700

ADAPTER, 90 .25 NPT X .56-18

$

$

Not available

34

Gravely 044820

SPINDLE RH
(Superseded to 03083000)

$

$

Not available

35

Gravely 039651

BRG-BALL 1.0X2.0X.55
(Superseded to 05412100)

$

$

Not available

36

Gravely 039652

T/WHL ASSY
(Superseded to 07115300)

$

$

Not available

37

Gravely 039653

TIRE 16X6.50-8 2 PLY
(Superseded to 07102100)

$61.99

$

Usually ships in 4-12 days

0

38

Gravely 039654

WHL
(Superseded to 07111000)

$

$

Not available

39

Gravely 06537000

NUT-CTRLK .31-24 YWZC

$1.99

$

In Stock, Qty 5

0

40

Gravely 039655

NUT-SL 1.0-14
(Superseded to 06513100)

$6.49

$

Usually ships in 4-12 days

0

41

Gravely 06712700

PIN-CTR .18X1.25 EXTPRSQCT YZ

$2.49

$

In Stock, only 2 left!

0

42

Gravely 039495

BALL JOINT L.H.
(Superseded to 03113000)

$65.99

$

In Stock, only 1 left!

0

43

Gravely 53110100

CYLINDER ASSEMBLY (SHORT)
(Superseded to 03094400)

Note: (Contains Item 13 and two 03078500 Plugs)

$

$

Not available

44

Gravely 53123200

FRONT AXLE ASSY

Note: (Contains one of Item 31 and two of Item 27)

$

$

Not available

46

UNKNOWN

$

$

Not available

47

UNKNOWN

$

$

Not available

48

UNKNOWN

$

$

Not available
