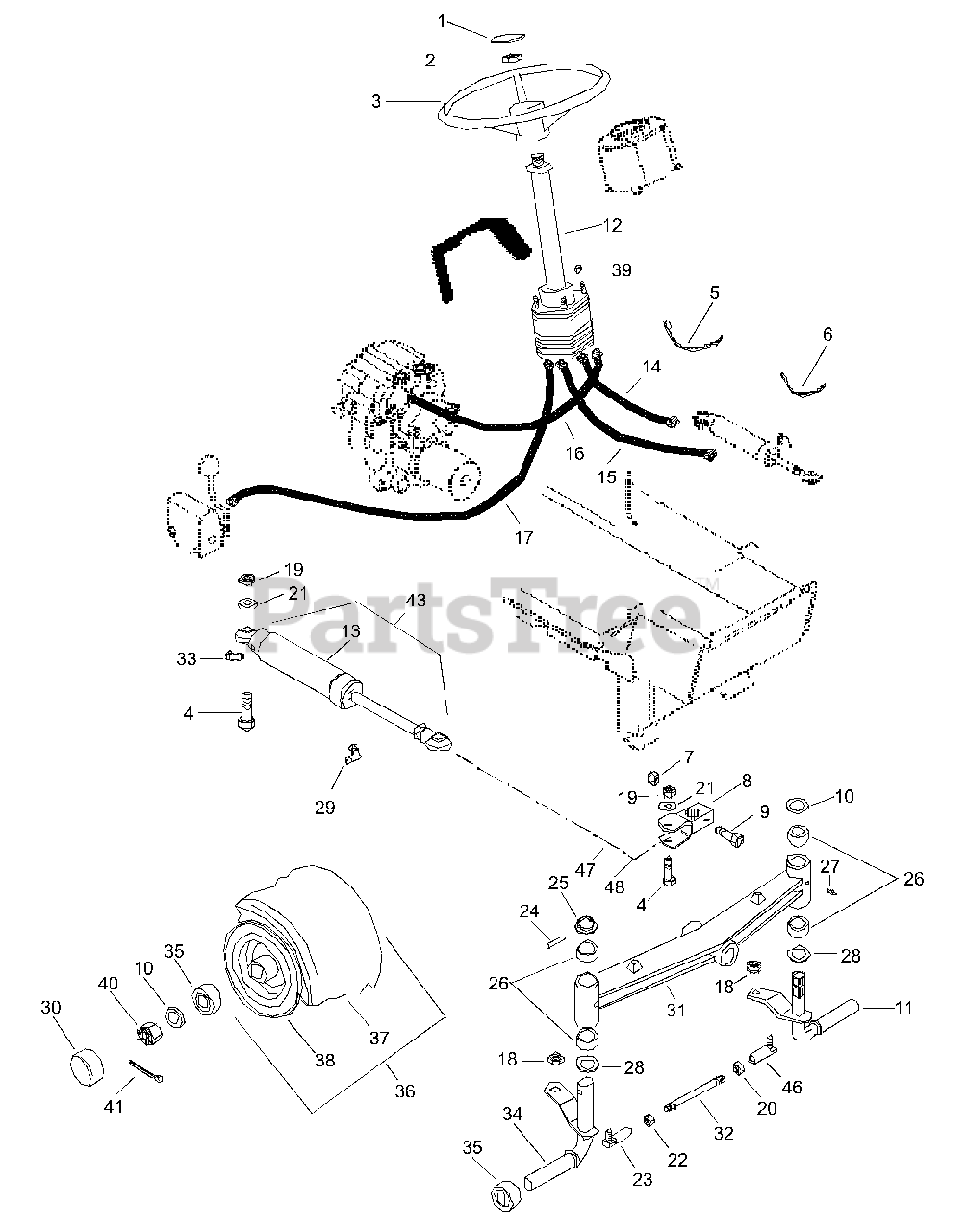

987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Steering Parts Diagram

60" Garden Tractor, 22hp Kohler

Steering Parts Diagram

  • Title

1

Gravely 03049500

Dome Plug

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 039643

Nut-Locking-Jam .625-18
(Superseded to 06530300)

$3.99

$

In Stock, Qty 11

0

3

Gravely 03048900

Steering Wheel

$197.99

$

In Stock, only 1 left!

0

4

Gravely 05967200

Bolt-Hex .62-18 x 2.00 Grade 5

$6.99

$

In Stock, only 2 left!

0

5

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

6

Gravely 04003800

Tie Wrap

$

$

Not available

7

Gravely 06528200

Nut-Locking .50-13

$3.99

$

In Stock, only 2 left!

0

8

Gravely 044827

Steering Arm
(Superseded to 03058400)

$

$

Not available

9

Gravely 044828

Lock Bolt
(Superseded to 03058500)

$

$

Not available

10

Gravely 06536300

Washer-Flat-Steel 1.010 x 1.505 x .062
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

11

Gravely 044829

Spindle Left Hand
(Superseded to 03083100)

$265.99

$

In Stock, only 1 left!

0

12

Gravely 03090600

Steering Unit-Hyd.

$1023.99

$

Usually ships in 4-12 days

0

13

Gravely 03094400

Cylinder-Hydraulic 2 Bore 3.87 STR.

$

$

Not available

14

Gravely 03093500

Hydraulic Hose 31.5

$

$

Not available

15

Gravely 03093400

Hydraulic Hose 35.75

$

$

Not available

16

Gravely 03089800

Hose-Hydraulic

$95.99

$

Usually ships in 4-12 days

0

17

Gravely 03090100

Hose-Hydraulic

$

$

Not available

18

Gravely 06530000

Nut-Locking-Center .50-20

$2.49

$

In Stock, only 1 left!

0

19

Gravely 039643

Nut-Locking-Jam .625-18
(Superseded to 06530300)

$3.99

$

In Stock, Qty 11

0

20

Gravely 06538300

Nut-Jam-Left Hand .50-20 Grade 2

$8.99

$

In Stock, only 2 left!

0

21

Gravely 06436100

Washer-Flat-Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

22

0653500

Nut-Lug .50-20

$

$

Not available

23

Gravely 03112900

Ball Joint Right Hand

$32.99

$

In Stock, only 1 left!

0

24

Gravely 05803700

Pin-Roll .250 x 1.75

$0.99

$

In Stock, Qty 6

0

25

Gravely 039471

Spindle Cap
(Superseded to 03008800)

$

$

Not available

26

Gravely 039648

Bushing-Sleeve 1.000 x 1.125 x .875
(Superseded to 05509100)

$13.99

$

In Stock, only 2 left!

0

27

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

28

Gravely 039649

Plastic Washer
(Superseded to 07506700)

$

$

Not available

29

Gravely 039682

Adapter 45° 9/16 to 1/4
(Superseded to 03106800)

$

$

Not available

30

Gravely 039516

Front Hub Cap
(Superseded to 07508900)

$18.99

$

Usually ships in 4-12 days

0

31

Gravely 042707

Front Axle
(Superseded to 53123200)

$

$

Not available

32

Gravely 039497

Tie Rod
(Superseded to 03116900)

$75.99

$

Usually ships in 4-12 days

0

33

Gravely 03093700

Adapter-90° .25 NPT x .56-18

$

$

Not available

34

Gravely 044820

Spindle Right Hand
(Superseded to 03083000)

$

$

Not available

35

Gravely 039651

Bearing-Ball 1.0 x 2.0 x .55
(Superseded to 05412100)

$

$

Not available

36

Gravely 039652

Tire/Wheel Assembly
(Superseded to 07115300)

$

$

Not available

37

Gravely 039653

Tire 8 x 6.50
(Superseded to 07102100)

$79.99

$

Usually ships in 4-12 days

0

38

Gravely 039654

Wheel
(Superseded to 07111000)

$

$

Not available

39

Gravely 06537000

Nut-Locking-Center .31-24

$1.49

$

In Stock, only 3 left!

0

40

Gravely 039655

Nut-Slotted 1.0 - 14
(Superseded to 06513100)

$5.99

$

Usually ships in 4-12 days

0

41

Gravely 06712700

Pin-Cotter .18 x 1.25

$1.99

$

In Stock, Qty 5

0

42

Gravely 039495

Ball Joint Left Hand
(Superseded to 03113000)

$59.99

$

Usually ships in 4-12 days

0

43

Gravely 53110100

Cylinder Assembly (Short)
(Superseded to 03094400)

Note: (Contains Item 13 and two 03078500 Plugs)

$

$

Not available

44

Gravely 53123200

Front Axle Assembly

Note: (Contains one of Item 31 and two of Item 27)

$

$

Not available

46

UNKNOWN

UNKNOWN

$

$

Not available

47

UNKNOWN

UNKNOWN

$

$

Not available

48

UNKNOWN

UNKNOWN

$

$

Not available
