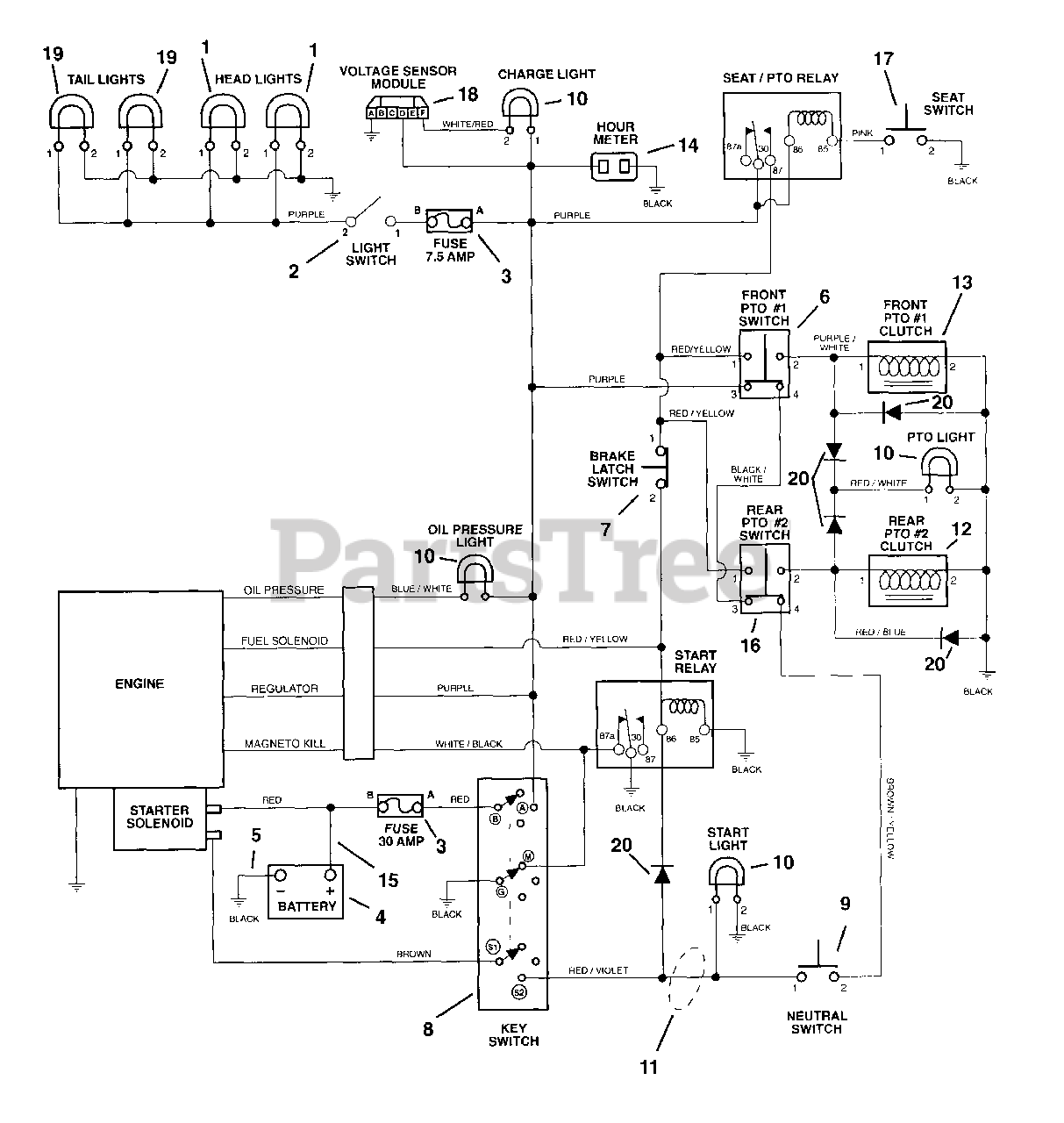

987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Wiring Diagram Parts Diagram

60" Garden Tractor, 22hp Kohler

Wiring Diagram Parts Diagram

  • Title

1

Gravely 03647200

HEADLIGHT- RH

$

$

Not available

Gravely 03647300

HEADLIGHT- LH

$

$

Not available

2

Gravely 03656800

SWITCH - LIGHT

$

$

Not available

3

7.5 AMP Fuse

$

$

Not available

30 AMP Fuse

$

$

Not available

4

Gravely 03055700

BATTERY
(Superseded to 53123300)

$

$

Not available

5

Gravely 050383

CBL,NEGATIVE BATTERY 20.00
(Superseded to 08840400)

$18.99

$

Usually ships in 4-12 days

0

6

Gravely 53603800

PTO KNOB/ SWITCH ASSY
(Superseded to 00355900)

$85.99

$

In Stock, Qty 5

0

7

Gravely 03095700

SWITCH, INTERLOCK NC

$9.99

$

Usually ships in 4-12 days

0

8

Gravely 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 13

0

9

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.99

$

In Stock, Qty 18

0

10

#194 Bulb

$

$

Not available

11

Gravely 03096700

HARNESS, WIRING

$

$

Not available

12

Gravely 039446

ELECTRIC CLUTCH
(Superseded to 03199000)

$

$

Not available

13

Gravely 03090800

CLUTCH-ELEC. WARNER I-5215-62B

$435.99

$

Usually ships in 4-12 days

0

14

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 13

0

15

Gravely 049101

CBL,BATTERY TO SOLENOID
(Superseded to 08987000)

$51.99

$

Usually ships in 4-12 days

0

16

Gravely 039496

SWITCH, PTO
(Superseded to 00355900)

$85.99

$

In Stock, Qty 5

0

17

Gravely 03654200

SWITCH- SEAT

$15.99

$

In Stock, Qty 7

0

18

Gravely 03653300

MODULE - VOLTAGE SENSOR

$63.99

$

Usually ships in 4-12 days

0

19

Gravely 039488

TAIL LIGHT ASSY (2 PIECES)
(Superseded to 53128400)

$124.99

$

Usually ships in 4-12 days

0

20

Gravely 03081700

MOLDED DIODE PLUG 1 AMP

$29.99

$

In Stock, only 3 left!

0
