987107 (GT 548 H) - Gravely 48" Garden Tractor, 22hp Briggs & Stratton (SN: 000101 & Above) Hood And Dash Parts Diagram

48" Garden Tractor, 22hp Briggs & Stratton

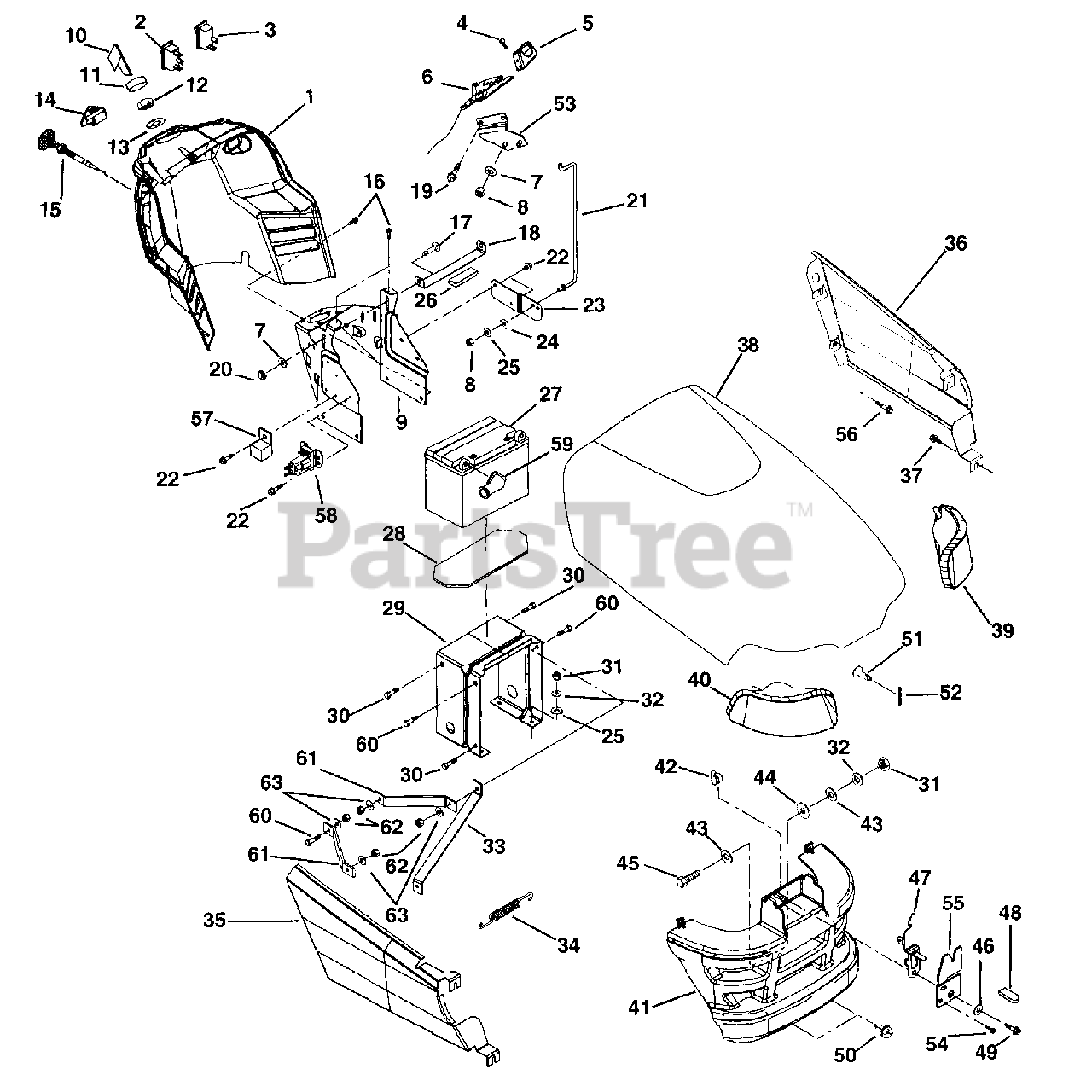

Hood And Dash Parts Diagram

  • Title

1

Gravely 03652900

DASH
(Superseded to 03679300)

$

$

Not available

2

Gravely 03656900

SWITCH - CRUISE

$23.99

$

Usually ships in 4-12 days

0

3

Gravely 03656800

SWITCH - LIGHT

$

$

Not available

4

Gravely 06004600

SCR-SET 10-24X.38 UNC-3A

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 03653253

KNOB, THROTTLE

$

$

Not available

6

Gravely 06940700

CABLE, THROTTLE

$50.99

$

Usually ships in 4-12 days

0

7

Gravely 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.49

$

Usually ships in 4-12 days

0

8

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 03357651

SUPPORT, DASH TOP

$

$

Not available

10

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

11

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

12

Gravely 045489

NUT- PANEL .562-24 GRECO
(Superseded to 06517400)

$21.99

$

In Stock, Qty 6

0

13

Gravely 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

$4.99

$

Usually ships in 4-12 days

0

14

Gravely 03659000

PTO KNOB/ SHAFT ASSY
(Superseded to 03659059)

$

$

Not available

15

Gravely 051537

CHOKE CABLE
(Superseded to 06918300)

$

$

Not available

16

Gravely 07406900

SCR-TAP 10-24X.484 HWH TR

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 03651451

HOLDD0WN, BATTERY

$

$

Not available

19

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

21

Gravely 03656600

ROD - HOOD PROP

$

$

Not available

22

Gravely 07412100

SCR-TAP 10-24X.375 HWH YZ TR

$0.99

$

Usually ships in 4-12 days

0

23

Gravely 03656700

MOUNT - PROP ROD

$

$

Not available

24

Gravely 038843

WAVE WASHER .390X.655X.110
(Superseded to 01320200)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 03645700

PAD, FOAM

$26.99

$

Usually ships in 4-12 days

0

27

Gravely 03621100

BATTERY W/ TUBE

$

$

Not available

28

Gravely 02530700

RUBBER PAD

$

$

Not available

29

Gravely 03651251

SUPPORT-DASH BASE

$

$

Not available

30

Gravely 07413400

SCR-TAP .312-18X.50 HWH TR BL

$

$

Not available

31

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

32

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

33

Gravely 03651351

BRACE

$

$

Not available

34

Gravely 039139

SG-TENS .035X.45X2.75 WLD 3.5
(Superseded to 08314900)

$14.99

$

In Stock, Qty 6

0

35

Gravely 03673351

PANEL, R.H

$57.99

$

Usually ships in 4-12 days

0

36

Gravely 03673451

PANEL, L.H

$

$

Not available

37

Gravely 07412500

SCR-TAP 12-16X.500 HI-LOTPHBL

$

$

Not available

38

Gravely 53607000

HOOD W/DECALS - GLT
(Superseded to 53611400)

$

$

Not available

39

Gravely 03647300

HEADLIGHT- LH

$

$

Not available

40

Gravely 03647200

HEADLIGHT- RH

$

$

Not available

41

Gravely 03670400

GRILLE
(Superseded to 03679200)

$

$

Not available

42

Gravely 07008400

CLIP-HARNESS TINNERMAN

$

$

Not available

43

Gravely 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 2 left!

0

44

Gravely 06435500

WSHR-FL-NYL .390X1.000X.062

$2.99

$

Usually ships in 4-12 days

0

45

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

46

Gravely 06440600

WSHR-FL-STL .281X1.250X.048 BL
(Superseded to 06403700)

$1.99

$

Usually ships in 4-12 days

0

47

Gravely 03655000

HOOD LATCH

$

$

Not available

48

Gravely 07526700

GRIP .062 X .375 X 1.000 RE

$

$

Not available

49

Gravely 07413300

SCR-TAP 12-24X.50 HWH TR BLACK
(Superseded to 07411900)

$2.49

$

In Stock, Qty 12

0

50

Gravely 07413400

SCR-TAP .312-18X.50 HWH TR BL

$

$

Not available

51

Gravely 045342

PIN, CLEVIS .243/.248X1.50 YWZ
(Superseded to 00283500)

$3.99

$

In Stock, only 1 left!

0

52

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

53

Gravely 03358251

BRACE, THROTTLE CONTROL

$

$

Not available

54

Gravely 07406400

SCR-TAP 10-12X.50 CRPH PL A BL

$3.99

$

Usually ships in 4-12 days

0

55

Gravely 03665951

LOCATOR, HOOD

$5.99

$

Usually ships in 4-12 days

0

56

Gravely 07415000

SCR-TAP 10-16X.62 SLPH AB YWZC

$2.49

$

Usually ships in 4-12 days

0

57

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

58

Gravely 045071

SOLENOID
(Superseded to 03551000)

$43.99

$

In Stock, Qty 6

0

59

Gravely 039619

INSULATOR
(Superseded to 07505700)

$10.99

$

In Stock, only 2 left!

0

60

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

61

Gravely 03673251

BRACKET-STEERING ASSEMBLY

$28.99

$

Usually ships in 4-12 days

0

62

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

63

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
