988001 - Gravely Pro 100 Walk-Behind Mower, 12.5hp Briggs & Stratton (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro 100 Walk-Behind Mower, 12.5hp Briggs & Stratton

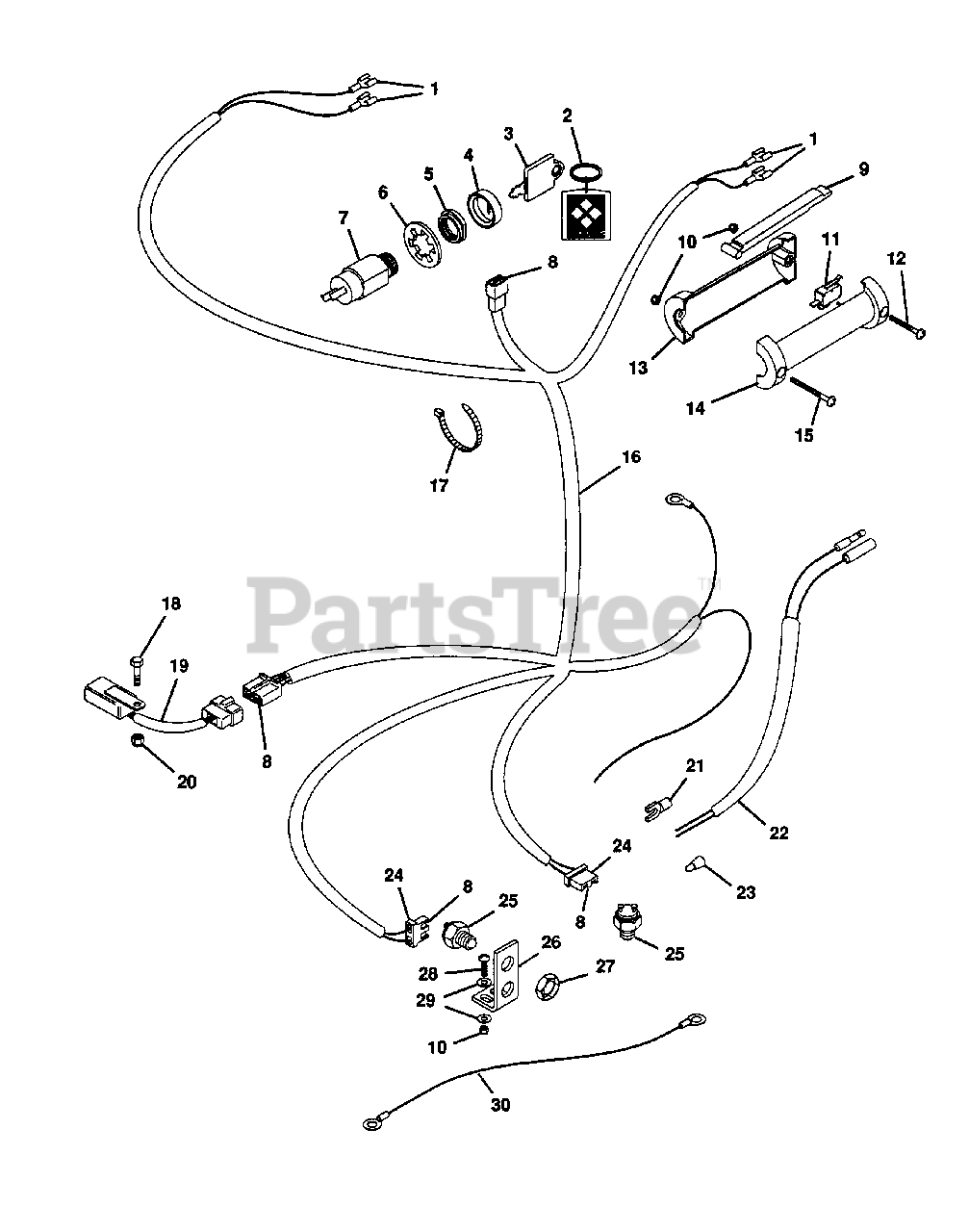

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 046988

TERMINAL, FEMALE
(Superseded to 08828400)

$

$

Not available

2

Gravely 045842

CHAIN, KEY
(Superseded to 03490000)

$

$

Not available

3

Gravely 045488

KEY, IGNITION SWITCH
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

4

Gravely 045490

BOOT, FOR 9/16 SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 19

0

5

Gravely 045497

NUT, 5/8-32 FOR SWITCH
(Superseded to 06517300)

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 018586

WASHER, LOCK 5/8 INT. TOOTH
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 030202

SWITCH, IGNITION
(Superseded to 52406900)

$39.99

$

In Stock, only 2 left!

0

8

Gravely 038059

TERMINAL
(Superseded to 08540001)

$4.49

$

In Stock, Qty 5

0

9

Gravely 046822

LEVER
(Superseded to 08602200)

$46.99

$

Usually ships in 4-12 days

0

10

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 046823

SWITCH
(Superseded to 08828300)

$

$

Not available

12

Gravely 159929

SCREW, MACHINE 10-24X.625 PHD
(Superseded to 06111100)

$1.49

$

In Stock, Qty 12

0

13

Gravely 046821

HANDLE, R.H.
(Superseded to 78802700)

$118.99

$

In Stock, only 1 left!

0

14

Gravely 046820

HANDLE, L.H.
(Superseded to 78802700)

$118.99

$

In Stock, only 1 left!

0

15

Gravely 159967

SCREW, MACH. 10-24X1.50 PHDCR
(Superseded to 06118300)

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 047380

HARNESS, WIRING
(Superseded to 08851600)

$

$

Not available

17

Gravely 041634

TIE WRAP, BLACK
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 180020

BOLT, HEX 1/4-20X.750
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

19

Gravely 041882

MODULE, INTERLOCK
(Superseded to 58800900)

$258.99

$

In Stock, only 2 left!

0

20

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

21

Gravely 042560

TERMINAL, PRE-INSULATED
(Superseded to 08818600)

$

$

Not available

24

Gravely 042176

CONNECTOR, 2-WIRE SWITCH
(Superseded to 08550000)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 034640

SWITCH, NEUTRAL START
(Superseded to 08803700)

$35.99

$

Usually ships in 4-12 days

0

26

Gravely 034637

BRACKET, INTERLOCK SWITCH
(Superseded to 08803600)

$

$

Not available

27

Gravely 107354

NUT, STAMPED 9/16-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 159947

SCREW, MACHINE 10-24X.75 PHD
(Superseded to 06111200)

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 131015

WASHER, FLAT .188X.438X.049
(Superseded to 06409200)

$

$

Not available

30

Gravely 042529

WIRE, GROUND
(Superseded to 08818400)

$

$

Not available
